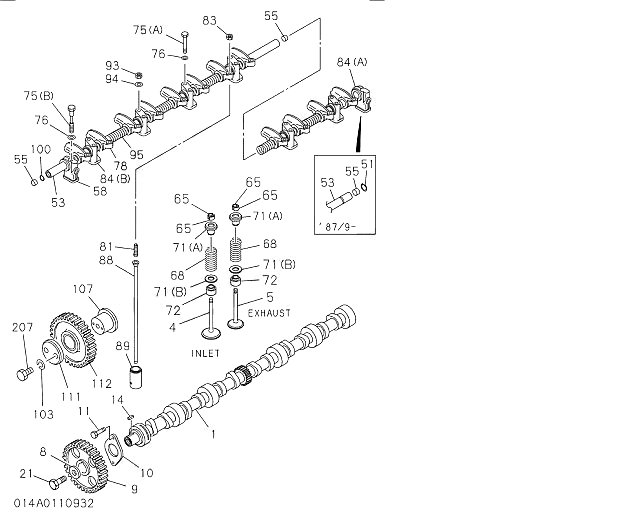

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 8944094120 | 1 | CAMSHAFT | 199311 - | |
4 | 1125510501 | 4 | VALVE; INL | 199311 - 200101 | |
4 | 1125511650 | 4 | VALVE; INL | 200102 - | |
5 | 1125520251 | 4 | VALVE; EXH | 199311 - 200101 | |
5 | 1125521110 | 4 | VALVE; EXH | 200102 - | |
7 | 5090002360 | 1 | BOLT; CM/SHF GEAR | 199311 - | |
8 | 9098518503 | 1 | WASHER; CM/SHF GEAR | 199311 - | |
9 | 9125221471 | 1 | GEAR; CM/SHF | 199311 - 199601 | C |
9 | 1125220161 | 1 | GEAR; CM/SHF | 199602 - | |
10 | 9116810150 | 1 | PLATE; THRUST | 199311 - | |
11 | 500408250 | 2 | BOLT; THRUST PLATE TO C/BL | 199311 - | |
12 | 9080107200 | 1 | KEY; CAM GEAR SET | 199311 - | |
53 | 8941295510 | 1 | SHAFT; ROCKER ARM | 199311 - 200101 | |
53 | 8972222450 | 1 | SHAFT; ROCKER ARM | 200102 - | |
55 | 9126260050 | 2 | PLUG; ROCKER SHAFT END | 199311 - | |
58 | 5126280120 | 1 | BRACKET; ROCKER SHAFT,FRT | 199311 - | |
59 | 5096230600 | 1 | GASKET; ROCKER SHAFT | 199311 - | |
65 | 5125650060 | 16 | COLLAR; SPLIT | 199311 - | |
69 | 5125610090 | 8 | SPRING; VLV,OUTER | 199311 - | |
71(B) | 1125630351 | 8 | SEAT; SPR | 199311 - | |
71(A) | 8941145790 | 8 | SEAT; SPR | 199311 - | |
72 | 1125690150 | 8 | SEAL; VLV GUIDE | 199311 - 200101 | |
72 | 8971201670 | 8 | SEAL; VLV GUIDE | 200102 - | |
78 | 5126110310 | 8 | ARM; ROCKER | 199311 - | |
78 | 1126112490 | 8 | ARM; ROCKER | 199311 - | |
81 | 9126160420 | 8 | SCREW; ADJ,ROCKER ARM | 199311 - | |
83 | 9091115080 | 8 | NUT; ADJ SCREW,LK | 199311 - | |
84 | 9126281050 | 4 | BRACKET; ROCKER SHAFT,INTER | 199311 - | |
85 | 1090005670 | 6 | BOLT; BRKT | 199311 - | |
86 | 9098514300 | 6 | WASHER; ROCKER ARM FIX | 199311 - | |
88 | 1125750360 | 8 | ROD; PUSH | 199311 - | |
89 | 5125710032 | 8 | TAPPET; VALVE | 199311 - | |
93 | 1094001160 | 3 | NUT; BRKT | 199311 - | |
94 | 9126281051 | 3 | WASHER; PL,BRKT | 199311 - | |
95 | 1095803350 | 3 | SPRING; ROCKER SHAFT | 199311 - | |
101 | 5090300381 | 2 | BOLT; THRUST COLLAR | 199311 - | |
107 | 9125310300 | 1 | SHAFT; IDLE GEAR | 199311 - | |
111 | 5125350011 | 1 | COLLAR; THRUST,IDLER GEAR | 199311 - | |
112 | 9125238014 | 1 | GEAR; IDLER | 199311 - 199601 | C |
112 | 8941339373 | 1 | GEAR; IDLER | 199602 - | |
196 | 9091800190 | 1 | RING; SNAP | 199311 - | |
