Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

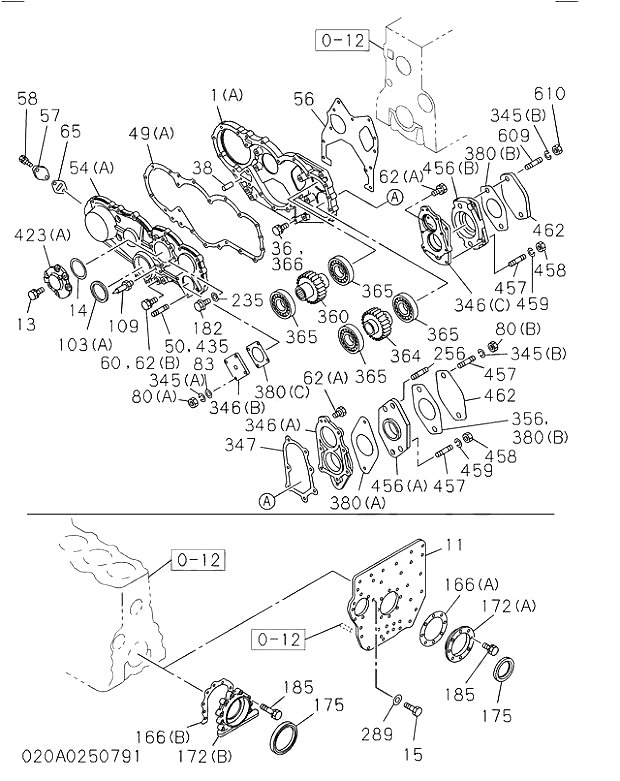

001(C) | 8944509752 | 1 | CASE; TIMING GEAR | 198911- | |

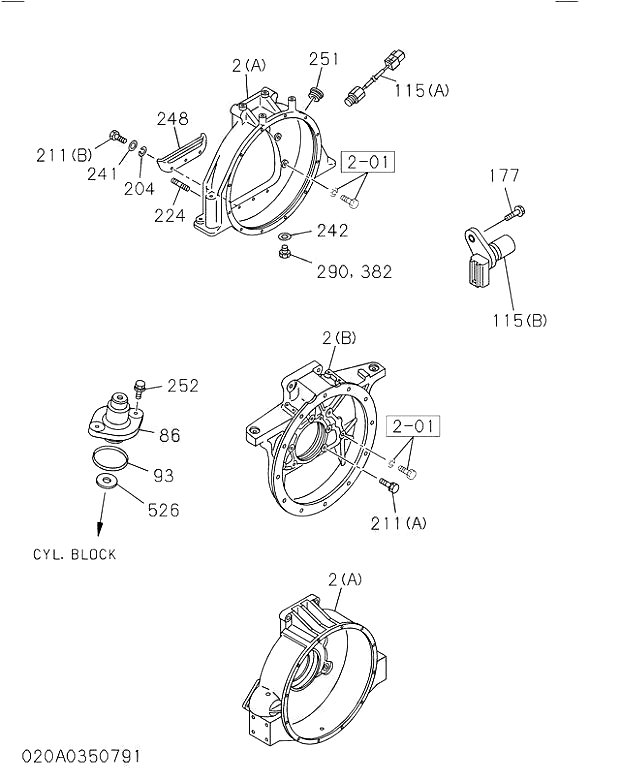

002(A) | 8970452072 | 1 | HOUSING; FLYWHEEL | 198911- | |
036 | 0500408200 | 4 | BOLT; GEAR CASE | 198911-199902 | C |
036 | 0500408450 | 2 | BOLT; GEAR CASE | 198911-199902 | C |
036 | 0280808220 | 4 | BOLT; GEAR CASE | 199903- | |
036 | 0286808400 | 2 | BOLT; GEAR CASE | 199903-200203 | A |
036 | 0280808450 | 2 | BOLT; GEAR CASE | 200204-200512 | A |
036 | 0280508450 | 2 | BOLT; GEAR CASE | 200601- | |
042 | 9112290581 | 1 | DOWEL; GEAR CASE COVER | 198911- | |
049(C) | 8943706720 | 1 | GASKET; GEAR CASE TO COVER | 198911-199810 | A |
049(C) | 8943210160 | 1 | GASKET; GEAR CASE TO COVER | 199811-200012 | A |
049(C) | 8972333010 | 1 | GASKET; GEAR CASE TO COVER | 200101- | |
054(C) | 8971298300 | 1 | COVER; GEAR CASE | 198911- | |
056 | 8943706711 | 1 | GASKET; GEAR CASE TO COVER | 198911- | |
057 | 5113210090 | 2 | COVER; TIMING CHECK HOLE | 198911- | |
058 | 0500406140 | 4 | BOLT; CHECK HOLE COVER | 198911-199902 | C |
058 | 0280806120 | 4 | BOLT; CHECK HOLE COVER | 199903-200512 | A |
058 | 0280506120 | 4 | BOLT; CHECK HOLE COVER | 200601- | |
060 | 0500408250 | 8 | BOLT; COVER TO CASE | 198911-199902 | A |
060 | 0500408800 | 1 | BOLT; COVER TO CASE | 198911-199902 | A |
060 | 9112290582 | 8 | BOLT; COVER TO CASE | 199903- | |
060 | 0280808800 | 1 | BOLT; COVER TO CASE | 199903-200512 | A |
060 | 0280508800 | 1 | BOLT; COVER TO CASE | 200601- | |
062(B) | 5090000841 | 4 | BOLT; COVER | 198911-199902 | A |
062(B) | 5090300381 | 3 | BOLT; COVER | 198911-199902 | A |
062(B) | 1090440711 | 4 | BOLT; COVER | 199903- | |
062(B) | 0280810500 | 3 | BOLT; COVER | 199903-200512 | A |
062(B) | 0280510500 | 3 | BOLT; COVER | 200601- | |
065 | 8970276011 | 2 | GASKET; COVER,TIMING CHECK HOLE | 198911- | |
103(C) | 1096254380 | 1 | SEAL; OIL,CR/SHF,FRT | 198911- | |
166(B) | 8943706641 | 1 | GASKET; RET TO C/BL | 198911- | |
172(B) | 8941145611 | 1 | RETAINER; CR/SHF | 198911-199509 | C |
172(B) | 8970795200 | 1 | RETAINER; CR/SHF | 199510- | |
175 | 1096253630 | 1 | SEAL; OIL,CR/SHF,RR | 198911-200009 | |
175 | 8970728231 | 1 | SEAL; OIL,CR/SHF,RR | 200010- | |
185 | 0500408220 | 7 | BOLT; RET TO C/BL | 198911-199902 | A |
185 | 0286808250 | 7 | BOLT; RET TO C/BL | 199903-200512 | A |
185 | 0286508250 | 7 | BOLT; RET TO C/BL | 200601- | |
204 | 9091505060 | 3 | WASHER; LK,HSG | 198911-200304 | |
211(B) | 0208006120 | 3 | BOLT; HSG | 198911-200304 | |
211(B) | 0280806100 | 3 | BOLT; HSG | 200305-200512 | A |
211(B) | 0280506100 | 3 | BOLT; HSG | 200601- | |
224 | 9944112350 | 2 | STUD; STARTER | 198911-200604 | A |
224 | 0440112350 | 2 | STUD; STARTER | 200605- | |
248 | 8970428010 | 1 | COVER; DUST,FLYWHEEL HSG RET | 198911- | |
251 | 9113491341 | 1 | COVER; TIMING,CHECK HOLE | 198911- | |
