Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

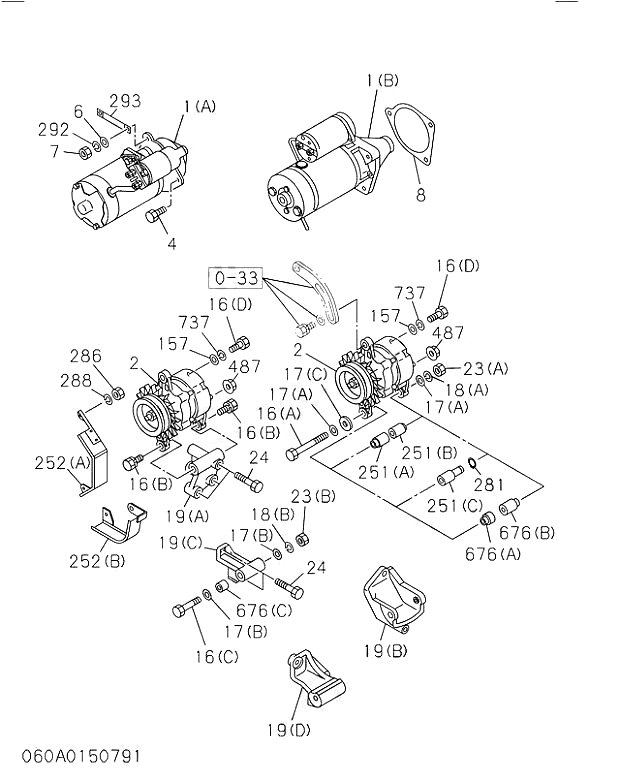

001(A) | 8970298637 | 1 | STARTER ASM | 198911- | ||
001(A) | 8972251991 | 1 | STARTER ASM | 199904-200203 | ||
2 | 8970466950 | 1 | GENERATOR ASM | 198911-199608 | C | |
2 | 1812004710 | 1 | GENERATOR ASM | 199609-200310 | ||
2 | 1812005308 | 1 | GENERATOR ASM | 200311- | ||
6 | 9091605120 | 1 | WASHER; PL,STARTER | 198911-200605 | A | |
6 | 0916105120 | 1 | WASHER; PL,STARTER | 200606- | ||
7 | 9991104120 | 2 | NUT; STARTER | 198911-200602 | A | |
7 | 0911105120 | 2 | NUT; STARTER | 200603- | ||
016(C) | 1090001331 | 1 | BOLT; GEN | 198911- | ||
017(B) | 9091605140 | 2 | WASHER; PL,GEN | 198911-200605 | A | |
017(B) | 0916105140 | 2 | WASHER; PL,GEN | 200606- | ||
018(B) | 9091505140 | 1 | WASHER; LK,GEN | 198911-200603 | A | |
018(B) | 0915105140 | 1 | WASHER; LK,GEN | 200604- | ||
019(C) | 8970324991 | 1 | BRACKET; GEN | 198911- | ||
023(B) | 9991104140 | 1 | NUT; GEN | 198911-199903 | ||
023(B) | 0911602140 | 1 | NUT; GEN | 199904-200602 | A | |
023(B) | 0911802140 | 1 | NUT; GEN | 200603- | ||
24 | 0500410250 | 1 | BOLT; GEN BRKT | 198911-199903 | A | |
24 | 0500410350 | 3 | BOLT; GEN BRKT | 198911-199903 | A | |
24 | 0280810250 | 1 | BOLT; GEN BRKT | 199904-200512 | A | |
24 | 0280810350 | 3 | BOLT; GEN BRKT | 199904-200512 | A | |
24 | 0280510250 | 1 | BOLT; GEN BRKT | 200601- | ||
24 | 0280510350 | 3 | BOLT; GEN BRKT | 200601- | ||

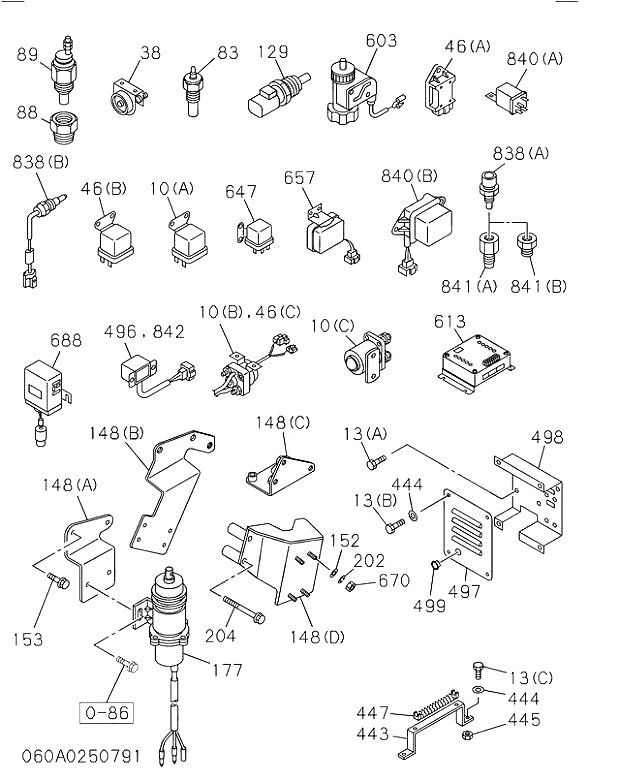

89 | 8971256011 | 1 | SWITCH; OVER HEAT WARNING | 198911- | ||
292 | 9091505120 | 2 | WASHER; LK,STARTER | 198911-200603 | A | |
292 | 0915105120 | 2 | WASHER; LK,STARTER | 200604- | ||
293 | 9829315110 | 1 | CABLE; STARTER EARTH | 198911-200212 | A | |
293 | 8971805560 | 1 | CABLE; STARTER EARTH | 200301- | ||
676(C) | 8944749260 | 1 | PIECE; DIST,GEN | 198911- |
