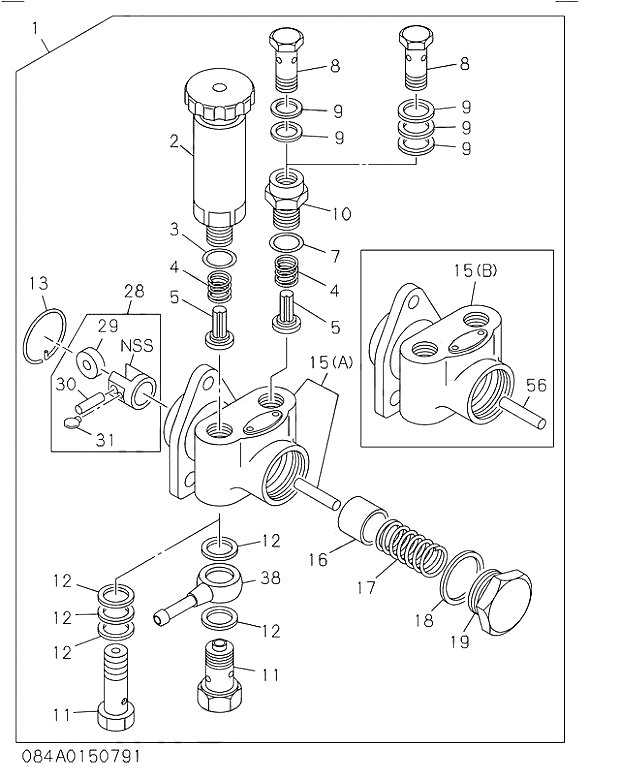

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 8971237060 | 1 | PUMP ASM; FUEL FEED,INJ PUMP | 198911- | |
2 | 1157610060 | 1 | PUMP; PRIMING,FUEL FEED PUMP | 198911- | |
3 | 1196230160 | 1 | GASKET; PRIMING PUMP,FUEL FEED PUMP | 198911- | |
4 | 9813517020 | 2 | SPRING; VLV,FUEL FEED PUMP | 198911- | |
5 | 1157550020 | 2 | VALVE; FUEL FEED PUMP | 198911- | |
7 | 9813517021 | 1 | GASKET; PLUG,FUEL FEED PUMP | 198911- | |
8 | 1156190820 | 1 | BOLT; EYE,FUEL OUTLET,FEED PUMP | 198911- | |
9 | 1157590010 | 2 | GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP | 198911- | |
10 | 1157590030 | 1 | ADAPTER; EYE BOLT,FUEL FEED PUMP | 198911- | |
11 | 5157590270 | 1 | BOLT; EYE,FUEL INL,FEED PUMP | 198911- | |
12 | 9813517022 | 2 | GASKET; EYE BOLT,INL,FUEL FEED PUMP | 198911- | |
13 | 9813550250 | 1 | RING; SNAP,TAPPET,FUEL FEED PUMP | 198911- | |
015(A) | 5157510120 | 1 | HOUSING; FUEL FEED PUMP | 198911- | |
16 | 9813512050 | 1 | PISTON; FUEL FEED PUMP | 198911- | |
17 | 9813513020 | 1 | SPRING; PISTON,FUEL FEED PUMP | 198911- | |
18 | 9813550350 | 1 | GASKET; PISTON PLUG,FUEL FEED PUMP | 198911- | |
19 | 8941711850 | 1 | PLUG; PISTON SPRING,FUEL FEED PUMP | 198911- | |
28 | 5157540010 | 1 | TAPPET ASM; FUEL FEED PUMP | 198911- | |
29 | 9813514030 | 1 | ROLLER; TAPPET,FUEL FEED PUMP | 198911- | |
30 | 9813514100 | 1 | PIN; TAPPET ROLLER,FUEL FEED PUMP | 198911- | |
31 | 1157590020 | 2 | GUIDE; TAPPET,FUEL FEED PUMP | 198911- | |
38 | 5157590120 | 1 | PIPE; FEED PUMP | 198911- | |
