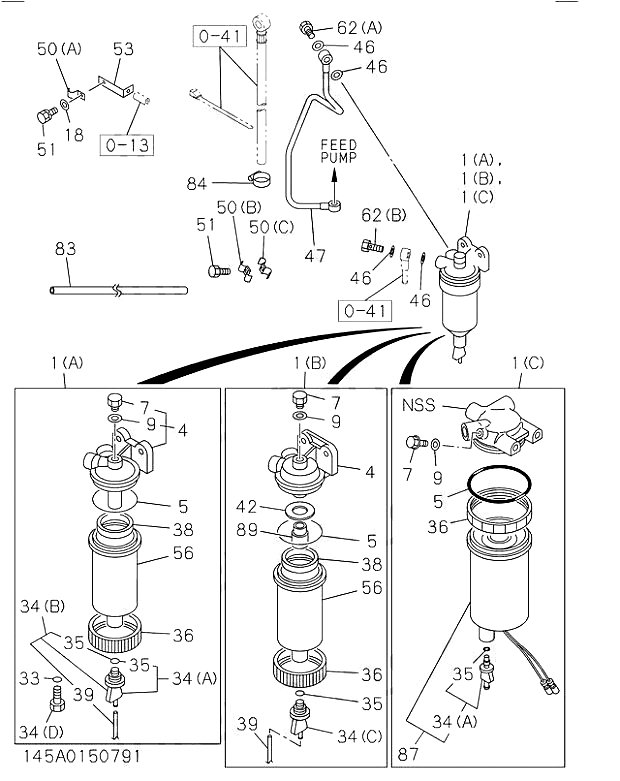

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001(A) | 1132008410 | 1 | SEDIMENTER; FUEL | 198911-200009 | |
| 001(B) | 8972186470 | 1 | SEDIMENTER; FUEL | 200010- | |
| 4 | 1132121401 | 1 | COVER; UPR,SEDIMENTER ASM | 198911-200009 | |
| 4 | 8972891170 | 1 | COVER; UPR,SEDIMENTER ASM | 200010- | |
| 5 | 5096230700 | 1 | GASKET; UPR COVER,SEDIMENTER | 198911-200009 | |
| 5 | 8941551830 | 1 | GASKET; UPR COVER,SEDIMENTER | 200010- | |
| 7 | 5132190200 | 1 | PLUG; DRAIN,SEDIMENTER | 198911-200009 | |
| 7 | 8972134730 | 1 | PLUG; DRAIN,SEDIMENTER | 200010- | |
| 9 | 5096300240 | 1 | GASKET; DRAIN PLUG & CONNECTOR | 198911-200009 | |
| 9 | 8972134740 | 1 | GASKET; DRAIN PLUG & CONNECTOR | 200010- | |
| 034(A) | 8944537460 | 1 | PLUG; DRAIN,FUEL FILTER | 198911-200009 | |
| 034(C) | 8972891320 | 1 | PLUG; DRAIN,FUEL FILTER | 200010- | |
| 35 | 8944163770 | 1 | GASKET; DRAIN PLUG | 198911-200009 | |
| 35 | 8972891330 | 1 | GASKET; DRAIN PLUG | 200010- | |
| 36 | 5132190221 | 1 | RING; BODY TO CASE | 198911-200009 | |
| 36 | 8972891310 | 1 | RING; BODY TO CASE | 200010- | |
| 38 | 5132190210 | 1 | FLOAT; SEDIMENTER | 198911-200009 | |
| 38 | 8972891250 | 1 | FLOAT; SEDIMENTER | 200010- | |
| 39 | 8972891360 | 1 | HOSE; SEDIMENTER | 199912- | |
| 42 | 8972891340 | 1 | PLATE; BAFFLE | 200010- | |
| 46 | 9095720140 | 4 | GASKET; FUEL PIPE | 198911- | |
| 47 | 8970209360 | 1 | PIPE; FUEL,SEDIMENTER TO PUMP | 198911- | |
| 050(B) | 1097007590 | 3 | CLIP; FUEL PIPE | 198911- | |
| 050(C) | 1097007600 | 3 | CLIP; FUEL PIPE | 198911- | |
| 51 | 0500406200 | 3 | BOLT; CLIP | 198911-199903 | A |
| 51 | 0286806160 | 3 | BOLT; CLIP | 199904-200004 | A |
| 51 | 0286806200 | 3 | BOLT; CLIP | 200005-200512 | A |
| 51 | 0286506200 | 3 | BOLT; CLIP | 200601- | |
| 56 | 1132112110 | 1 | CASE; FUEL SEDIMENTER | 198911-200009 | |
| 56 | 8972891180 | 1 | CASE; FUEL SEDIMENTER | 200010- | |
| 062(A) | 9099063251 | 1 | BOLT; EYE,FUEL FILTER | 198911- | |
| 062(B) | 5157590270 | 1 | BOLT; EYE,FUEL FILTER | 198911- | |
| 89 | 8972891350 | 1 | ADAPTER | 200010- | |
