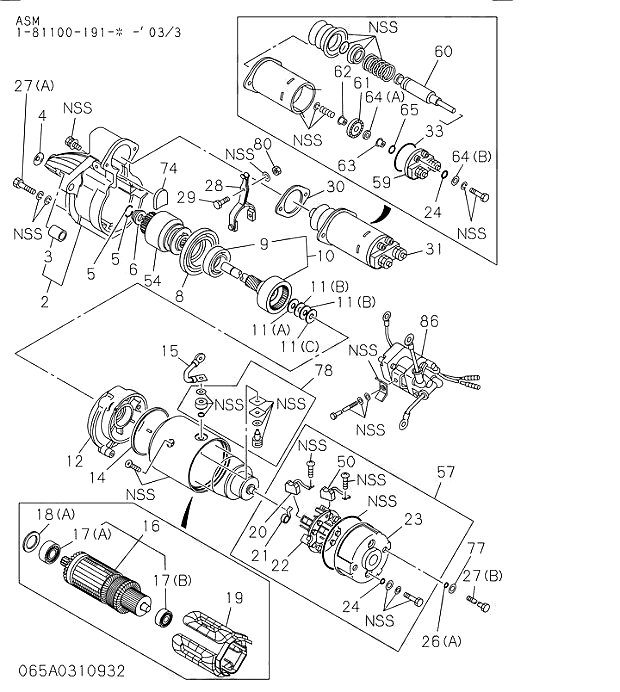

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
2 | 5811130350 | 1 | CASE; PINION,STARTER | 198911-199902 | ||
2 | 1811140180 | 1 | CASE; PINION,STARTER | 199903- | ||
13 | 5811530010 | 1 | YOKE; STARTER | 198911-199902 | ||
13 | 1811296960 | 1 | YOKE; STARTER | 199903- | ||
16 | 1811210521 | 1 | ARMATURE; STARTER | 198911- | ||
017(A) | 5098000640 | 1 | BEARING; ARMATURE,START | 198911- | ||
017(B) | 5098000410 | 1 | BEARING; ARMATURE,START | 198911- | ||
18 | 5811291280 | 1 | WASHER; THRUST,ARMATURE | 198911- | ||
20 | 5811260020 | 2 | BRUSH; (+),STARTER | 198911-199902 | C | |
20 | 8941718530 | 2 | BRUSH; (+),STARTER | 199903- | ||
22 | 5811180130 | 1 | HOLDER; BRUSH STARTER | 198911- | ||
23 | 5811560020 | 1 | COVER; RR COVER STARTER | 198911-199902 | ||
23 | 1811152360 | 1 | COVER; RR COVER STARTER | 199903- | ||
26 | 5811291310 | 2 | SEAL; THROUGH BOLT STAR | 198911-199902 | ||
027(A) | 5811291250 | 3 | BOLT; THROUGH,STARTER | 198911-199902 | ||
027(A) | 1811294830 | 3 | BOLT; THROUGH,STARTER | 199903- | ||
027(B) | 5811291230 | 2 | BOLT; THROUGH,STARTER | 198911-199902 | C | |
027(B) | 1811296980 | 2 | BOLT; THROUGH,STARTER | 199903- | ||
31 | 5811510390 | 1 | SWITCH; ENGAGE STARTER | 198911-199902 | A | |
31 | 1811510340 | 1 | SWITCH; ENGAGE STARTER | 199903- | ||
40 | 5811291220 | 1 | COVER; DUST,RR COVER,STARTER | 198911-199902 | ||
40 | 1811296770 | 1 | COVER; DUST,RR COVER,STARTER | 199903- | ||
41 | 5811291300 | 2 | SCREW; RR COVER,STARTER | 200210- | ||
043(A) | 5811291210 | 1 | RETAINER; PINION STARTE | 198911- | ||
043(B) | 5811291270 | 1 | RETAINER; PINION STARTE | 198911- | ||
44 | 5811291200 | 6 | ROLLER; PINION STARTER | 198911- | ||
046(A) | 5811230180 | 1 | GEAR; CLU STARTER | 198911- | ||
47 | 5811291190 | 1 | SPRING; PINION STARTER | 198911- | ||
48 | 5811290920 | 1 | BALL; PINION,STARTER | 198911- | ||
52 | 5811291360 | 1 | PLATE; LK,STARTER | 198911- | ||
54 | 5811240040 | 1 | CLUTCH; PINION,STARTER | 198911- | ||
077(A) | 5811280020 | 2 | WASHER; THROUGH BOLT,ST | 198911-199902 | ||
114 | 5811291260 | 2 | NUT; TERMINAL | 198911- | ||
115(B) | 5811280030 | 1 | WASHER; TERMINAL | 198911-199902 | ||
115(B) | 5811291340 | 1 | WASHER; TERMINAL | 199903- |
