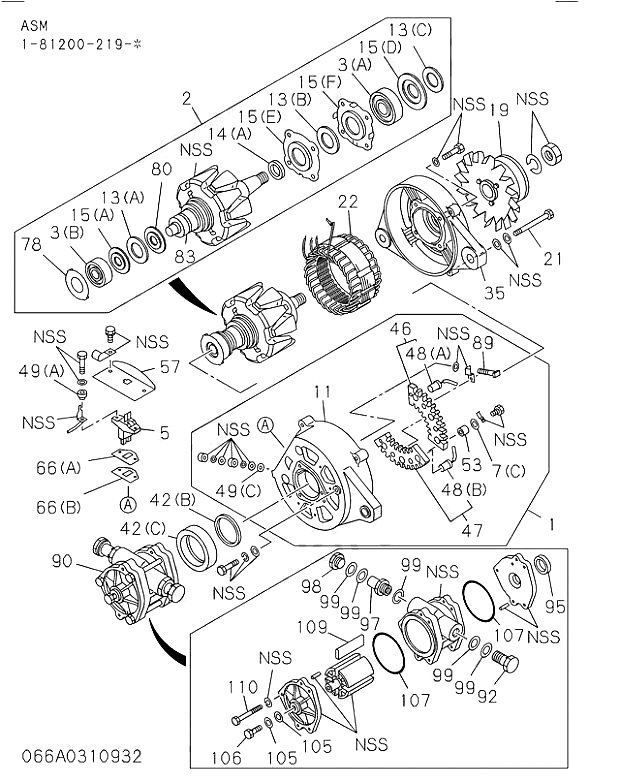

066 generator2

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
00189813180501COVER ASM; RR,GEN200508-
00289738286901ROTOR; GEN200508-
003(A)18122972301BEARING; ROTOR,GEN200508-
003(B)18122975801BEARING; ROTOR,GEN200508-
00489738288401TERMINAL; BRUSH,GEN200508-
00689809239901REGULATOR ASM; VOLTAGE,GEN200707-
01089738287901RECTIFIER; GEN200508-
01489738287002COLLAR; STEEL200508-
01518122976011RETAINER; ROTOR,GEN200508-
01789738287201COVER ASM; FRT,GEN200508-
01818122947401NUT; PULLEY,GEN200508-
01989738287301PULLEY; GEN200508-
02089738287401FAN; GEN200508-
02118122938203BOLT; THROUGH,GEN200508-
02289738287101STATOR; GEN200508-
02389803629501COIL; ROTOR GEN200603-
03989738288211COVER; END,RR COVER,GEN200508-
043(D)18122973303SCREW; RR END COVER200508-
049(A)89738288001BUSHING; RECTIFIER,GEN200508-
049(B)18122972801BUSHING; RECTIFIER,GEN200508-
06218111801101CLIP; TERMINAL,BRUSH,GEN200508-
06518413201201CONDENSER; GEN200508-
07189702905901HOLDER; TERMINAL,GEN200508-
08718122947901WASHER; PULLEY,GEN200508-
08818122947801WASHER; PL,PULLEY GEN200508-
08989738288101BOLT; RECTIFIER,GEN200508-
