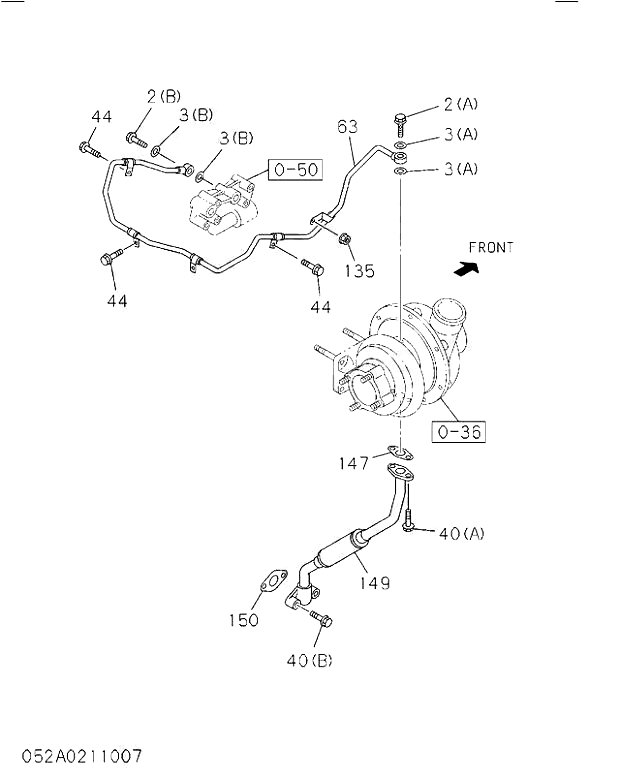

052 oil and vacuum piping engine

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
002(A)89444353501BOLT; EYE,OIL PIPE200610-
002(B)90990620511BOLT; EYE,OIL PIPE200610-
390957141004GASKET; EYE BOLT,OIL PIPE200610-
029(A)2805081001BOLT; OIL PIPE,OIL JET200610-
029(B)89711729814BOLT; OIL PIPE,OIL JET200610-
5789731213231PIPE; OIL,OIL JET200610-
5889723904811VALVE; RELIEF,OIL JET,PISTON COOLING200610-
063(A)89801951101PIPE; OIL,TURBOCHARGER FEED200610-
14789802947501GASKET; OIL PIPE TO TURBOCHARGER200610-
149(A)89801951211PIPE; OIL RETURN,TURBOCHARGER200610-
15089802947601GASKET; OIL PIPE TO C/BL200610-
414(A)2865062002BOLT; OIL PIPE200610-
414(B)2865082002BOLT; OIL PIPE200610-200902C
414(B)89736663202BOLT; OIL PIPE200903-
49589802745601SENSOR; OIL PRESS200610-
57210963008501GASKET; SENSOR200610-
