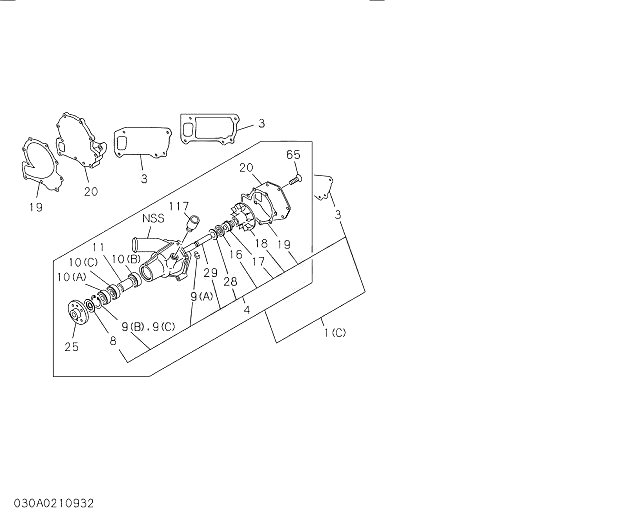

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1 | 8981262290 | 1 | PUMP ASM; WATER W/GASKET | 200711-200808 | C | |
| 1 | 8981262302 | 1 | PUMP ASM; WATER W/GASKET | 200809- | ||
| 3 | 8972895430 | 1 | GASKET; PUMP TO C/BL | 200711- | ||
| 014(A) | 9099034971 | 1 | CONNECTOR; JOINT | 200711- | ||
| 014(B) | 8942419620 | 1 | CONNECTOR; JOINT | 200711- | ||
| 036(A) | 280508500 | 2 | BOLT; WATER PUMP TO C/BL | 200711- | ||
| 036(B) | 280508900 | 2 | BOLT; WATER PUMP TO C/BL | 200711- | ||
| 036(C) | 280508700 | 1 | BOLT; WATER PUMP TO C/BL | 200711- | ||
| 40 | 911802080 | 2 | NUT; WATER PUMP | 200711- | ||
| 42 | 8972567861 | 1 | STUD; WATER PUMP | 200711- | ||
| 58 | 5096050050 | 1 | PLUG; HTR | 200711- | ||
| 144 | 8973695521 | 1 | PLUG; THERMOMETER | 200711- |
