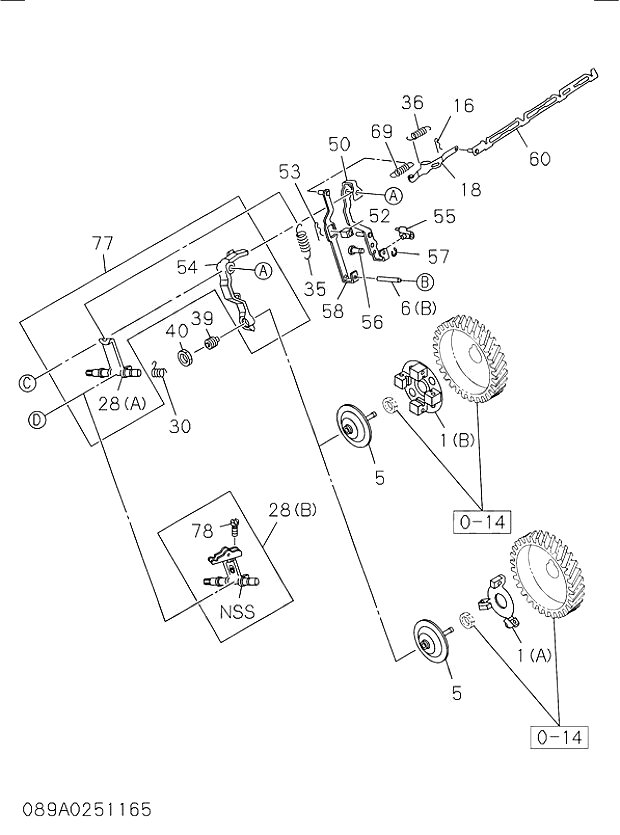

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
001(B) | 8980900300 | 1 | FLYWEIGHT | 200711- | |
5 | 8971474893 | 1 | SLEEVE; FLYWEIGHT | 200711- | |
006(A) | 9081508500 | 1 | SHAFT; LEVER | 200711- | |
006(B) | 9081505450 | 1 | SHAFT; LEVER | 200711- | |
006(C) | 8970164460 | 1 | SHAFT; LEVER | 200711- | |
7 | 8971617641 | 1 | COVER; GOV SHAFT | 200711-200805 | |
7 | 8981138040 | 1 | COVER; GOV SHAFT | 200806- | |
16 | 1097470020 | 1 | PIN; LEVER TO LINK PLATE | 200711- | |
18 | 8971485500 | 1 | PLATE; LINK,LEVER TO PUMP | 200711- | |
21 | 5095031321 | 2 | GASKET; SCREW | 200711- | |
022(A) | 911115060 | 3 | NUT; SCREW | 200711- | |
022(B) | 911105060 | 1 | NUT; SCREW | 200711- | |
24 | 5094000480 | 1 | NUT; CAP,SCREW | 200711- | |
25 | 5156690021 | 1 | CAP; IDLE SET | 200711- | |
27 | 8970493281 | 1 | LEVER; CONT | 200711- | |
028(A) | 8970346424 | 1 | LEVER; MAIN SPR | 200711- | |
29 | 1096230550 | 2 | GASKET; SHAFT,CONT | 200711- | |
30 | 8973070610 | 1 | SPRING; RETURN,CONT | 200711- | |
31 | 5095031350 | 2 | WASHER; THRUST,LEVER | 200711- | |
32 | 911105080 | 1 | NUT; LEVER TO SHAFT | 200711- | |
34 | 5157292392 | 1 | EYE; START SPR | 200711- | |
35 | 8980489700 | 1 | SPRING; MAIN,LEVER | 200711- | |
36 | 8980489710 | 1 | SPRING; START | 200711- | |
37 | 8971712431 | 1 | SPRING; IDLE | 200711- | |
43 | 8973034540 | 1 | LEVER; FUEL CUT | 200711- | |
044(A) | 8970646881 | 1 | GASKET; COVER | 200711- | |
45 | 8972628830 | 1 | BUSHING; GEAR CASE TO CONT LEVER | 200711- | |
046(A) | 280506200 | 3 | BOLT; COVER | 200711- | |
046(B) | 8971322912 | 2 | BOLT; COVER | 200711- | |
046(C) | 8971322922 | 1 | BOLT; COVER | 200711- | |
049(A) | 1096050190 | 1 | PLUG; COVER,GOV | 200711- | |
50 | 8973035772 | 1 | LEVER; GUIDE | 200711- | |
51 | 8973580001 | 1 | COVER; ADJ | 200711- | |
52 | 8973035830 | 1 | PIECE; GUIDE | 200711- | |
53 | 9081508501 | 1 | PIN; GUIDE LEVER | 200711- | |
54 | 8970346376 | 1 | LEVER; TENSION,GOV | 200711- | |
55 | 8970346383 | 1 | SHIFTER; GOV | 200711- | |
56 | 8973036670 | 1 | SHAFT; SHIFTER | 200711- | |
57 | 918055040 | 1 | RING; SNAP,SHAFT | 200711- | |
58 | 8973035802 | 1 | LEVER; FLOATING | 200711- | |
59 | 8973695521 | 1 | PLUG; SHAFT,FLOATING LEVER | 200711- | |
60 | 8971488650 | 1 | LINK; CONT,INJ PUMP | 200711- | |
61 | 8970395842 | 1 | SCREW; SET,FULL LOAD | 200711- | |
62 | 8970164410 | 1 | SCREW; SET,IDLE SPR | 200711- | |
063(A) | 9091605040 | 1 | WASHER; IDLE SPR | 200711-200903 | A |
063(A) | 916105040 | 1 | WASHER; IDLE SPR | 200904- | |
063(B) | 9091607040 | 1 | WASHER; IDLE SPR | 200711-200903 | A |
063(B) | 916107040 | 1 | WASHER; IDLE SPR | 200904- | |
64 | 918055030 | 1 | RING; SNAP,SET SCREW | 200711- | |
065(A) | 5091200151 | 1 | SCREW; CONT SET SPEED | 200711- | |
065(B) | 8943176381 | 1 | SCREW; CONT SET SPEED | 200711- | |
66 | 915108080 | 2 | WASHER; LK | 200711- | |
67 | 9081504360 | 1 | PIN; SPR,CONT | 200711- | |
69 | 8970837141 | 1 | SPRING; SET | 200711- | |
070(A) | 8973074671 | 1 | COVER; ANGLEICH | 200711- | |
71 | 5111290060 | 1 | CUP; SEALING | 200711- | |
72 | 8972268421 | 1 | GASKET; COVER,ANGLEICH | 200711- | |
73 | 8970395461 | 1 | SPRING; FUEL CUT | 200711- | |
74 | 9091607041 | 1 | NUT; SHAFT | 200711- | |
75 | 8972628170 | 1 | BUSHING; LEVER,MAIN SPR | 200711- | |
76 | 8944546150 | 1 | CUP; SEALING,BUSHING | 200711- | |
77 | 8970935494 | 1 | LEVER KIT; GOV | 200711- | |
094(A) | 9095651140 | 1 | GASKET; BUSH | 200711- | |
094(B) | 9095651160 | 1 | GASKET; BUSH | 200711- | |
