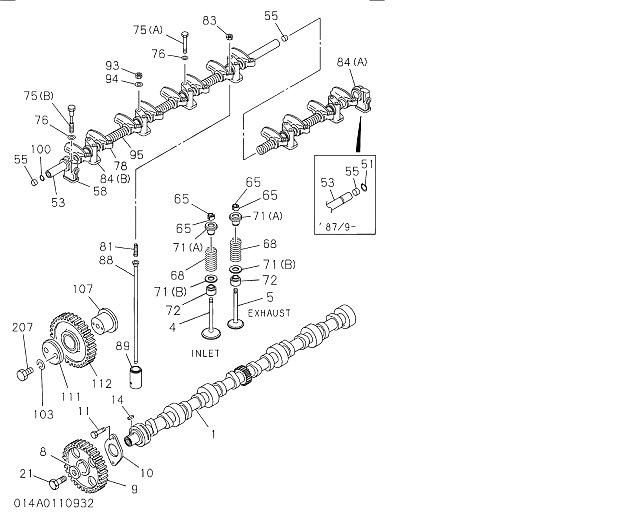

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 9125148031 | 1 | CAMSHAFT | 199211 - | |
4 | 1125510830 | 6 | VALVE; INL | 199211 - | |
5 | 1125520520 | 6 | VALVE; EXH | 199211 - 200102 | C |
5 | 1125521110 | 6 | VALVE; EXH | 200103 - | |
8 | 9098518503 | 1 | WASHER; CM/SHF GEAR | 199211 - | |
9 | 1125220162 | 1 | GEAR; CM/SHF | 199211 - | |
10 | 9116810150 | 1 | PLATE; THRUST | 199211 - | |
11 | 500408250 | 2 | BOLT; THRUST PLATE TO C/BL | 199211 - | |
14 | 9080307130 | 1 | KEY; CM/SHF | 199211 - | |
21 | 9920614280 | 1 | BOLT; CM/SHF METAL,NO 7 | 199211 - | |

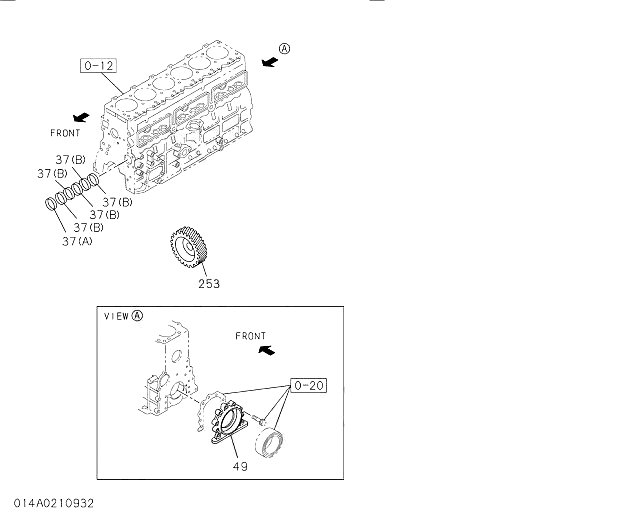

37(A) | 9116910480 | 1 | METAL; CM/SHF | 199211 - | |
37(B) | 9116930350 | 5 | METAL; CM/SHF | 199211 - | |
51 | 9091800190 | 1 | RING; SNAP,ROCKER ARM SHAFT | 199211 - | |
53 | 1126210621 | 1 | SHAFT; ROCKER ARM | 199211 - 200101 | |
53 | 1126210940 | 1 | SHAFT; ROCKER ARM | 200102 - | |
55 | 9126260050 | 2 | PLUG; ROCKER SHAFT END | 199211 - | |
58 | 5126280120 | 1 | BRACKET; ROCKER SHAFT,FRT | 199211 - | |
65 | 5125650030 | 24 | COLLAR; SPLIT | 199211 - | |
69 | 5125610090 | 12 | SPRING; VLV,OUTER | 199211 - 200101 | C |
69 | 1125610990 | 12 | SPRING; VLV,OUTER | 200102 - | |
71(A) | 5125630250 | 12 | SEAT; SPR | 199211 - | |
71(B) | 5125630010 | 12 | SEAT; SPR | 199211 - | |
72 | 1125690150 | 12 | SEAL; VLV GUIDE | 199211 - 200101 | C |
72 | 8971201670 | 12 | SEAL; VLV GUIDE | 200102 - | |
75(A) | 1090005670 | 8 | BOLT; BRKT | 199211 - | |
75(B) | 9096021480 | 1 | BOLT; BRKT | 199211 - | |
76 | 9098514300 | 9 | WASHER; PL,BRKT | 199211 - | |
78 | 5126110310 | 12 | ARM; ROCKER | 199211 - 200101 | |
78 | 1126112490 | 12 | ARM; ROCKER | 200102 - | |
81 | 9126160420 | 12 | SCREW; ADJ,ROCKER ARM | 199211 - | |
83 | 9091115080 | 12 | NUT; ADJ SCREW,LK | 199211 - | |
84 | 9126281050 | 6 | BRACKET; ROCKER SHAFT,INTER | 199211 - | |
88 | 1125750360 | 12 | ROD; PUSH | 199211 - | |
89 | 5125710032 | 12 | TAPPET; VLV | 199211 - | |
93 | 1094001160 | 4 | NUT; BRKT | 199211 - | |
94 | 9920614281 | 4 | WASHER; PL,BRKT | 199211 - | |
95 | 1095803350 | 5 | SPRING; ROCKER SHAFT | 199211 - | |
100 | 5096230600 | 1 | GASKET; ROCKER ARM SHAFT | 199211 - | |
103 | 9091505100 | 2 | WASHER; LK,THRUST COLLAR | 199211 - 199708 | |
107 | 9125310300 | 1 | SHAFT; IDLE GEAR | 199211 - | |
111 | 5125350011 | 1 | COLLAR; THRUST,IDLE GEAR | 199211 - | |
112 | 1125230573 | 1 | GEAR; IDLE | 199211 - 199605 | C |
112 | 8941339373 | 1 | GEAR; IDLE | 199606 - | |
207 | 108110550 | 2 | BOLT; SPINDLE TO THRUST PLATE | 199211 - | |
