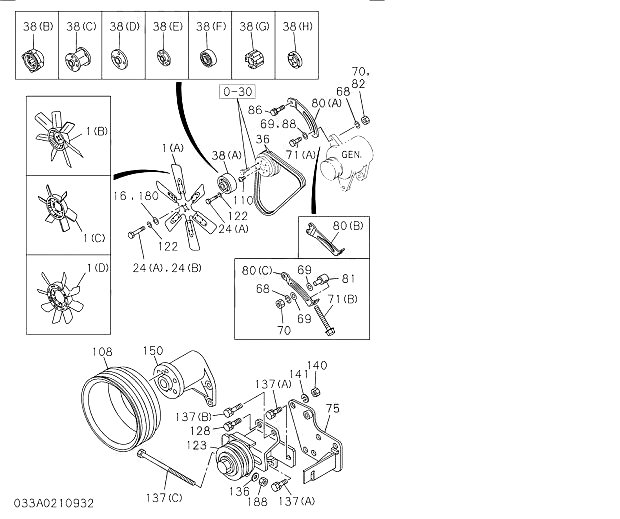

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1(B) | 1136601400 | 1 | FAN; COOLING | 199211 - | ||
16 | 9091646100 | 6 | WASHER; PL,COOLING FAN | 199211 - | ||
24(B) | 9020610200 | 4 | BOLT; FAN | 199211 - | ||
24(C) | 9010660800 | 6 | BOLT; FAN | 199211 - | ||
36 | 1136712880 | 1 | BELT; COOLING FAN | 199211 - 199908 | ||
36 | 1136714430 | 1 | BELT; COOLING FAN | 199909 - | ||
38(A) | 1136420100 | 1 | SPACER; FAN | 199211 - | ||
38(A) | 1136420120 | 1 | SPACER; FAN | 199211 - | ||
69 | 9091607120 | 2 | WASHER; PL,ADJ PLATE,GEN | 199211 - | ||
70 | 9991104120 | 1 | NUT; ADJ PLATE,GEN | 199211 - | ||
71(B) | 1090091141 | 1 | BOLT; ADJ PLATE,GEN | 199211 - | ||
80(B) | 1136741181 | 1 | PLATE; ADJ | 199812 - | ||
80(C) | 1136741192 | 1 | PLATE; ADJ | 199211 - 199411 | ||
81 | 1136741610 | 1 | PIECE; SLIDING | 199211 - | ||
86 | 500410250 | 1 | BOLT; ADJ | 199211 - 199811 | A | |
86 | 286810250 | 1 | BOLT; ADJ | 199812 - | ||
86 | 500410400 | 2 | BOLT; ADJ | 199211 - 199411 | A | |
88 | 9991104121 | 2 | WASHER; PL,ADJ PLATE | 199211 - | ||
94 | 9091505120 | 1 | WASHER; LK,ADJ PLATE | 199211 - | ||
122 | 9091506100 | 12 | WASHER; LK,FAN | 199211 - |
