| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001(C) | 8972530281 | 1 | PUMP ASM; WATER,W/GASKET | 199906-199910 | ||
| 001(C) | 8972530282 | 1 | PUMP ASM; WATER,W/GASKET | 199911- | ||
| 3 | 8943706610 | 1 | GASKET; PUMP TO C/BL | 198508- | ||
| 4 | 8972530300 | 1 | REPAIR KIT; WATER PUMP | 199906-200002 | ||
| 4 | 5878143201 | 1 | REPAIR KIT; WATER PUMP | 200003- | ||

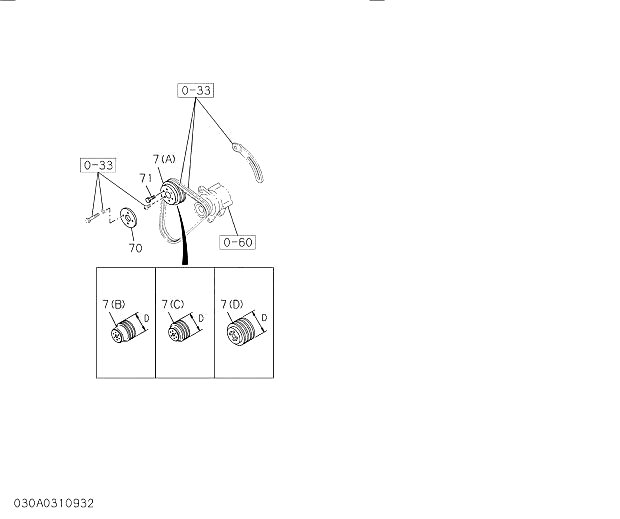

| 007(A) | 1136411910 | 1 | PULLEY; WATER PUMP | 199907- | ||
| 8 | 5136390010 | 1 | THROWER; DUST,WATER PUMP | 198508- | ||
| 009(A) | 9099521430 | 1 | RING; SNAP,WATER PUMP | 198508- | ||
| 009(B) | 9091801520 | 1 | RING; SNAP,WATER PUMP | 198508- | ||
| 010(A) | 5098000510 | 1 | BEARING; WATER PUMP | 198508- | ||
| 010(B) | 5098000500 | 1 | BEARING; WATER PUMP | 198508- | ||
| 010(C) | 1098001700 | 1 | BEARING; WATER PUMP | 198508- | ||
| 11 | 5136340020 | 1 | SPACER; BRG,WATER PUMP | 198508- | ||
| 16 | 5096250550 | 1 | SEAL; OIL,WATER PUMP | 198508- | ||
| 17 | 8972322490 | 1 | SEAL UNIT; WATER PUMP | 198508- | ||
| 18 | 8972322500 | 1 | IMPELLER; WATER PUMP | 198508- | ||
| 19 | 8972322480 | 1 | GASKET; COVER TO BODY | 198508- | ||
| 20 | 8972322470 | 1 | COVER; WATER PUMP | 198508- | ||
| 24 | 280810500 | 2 | BOLT; WATER PUMP | 198508-200203 | ||
| 24 | 280810700 | 1 | BOLT; WATER PUMP | 198508-200203 | ||
| 24 | 286810350 | 1 | BOLT; WATER PUMP | 198508-200203 | ||
| 24 | 9099521431 | 2 | BOLT; WATER PUMP | 200204-200512 | A | |
| 24 | 9099521432 | 1 | BOLT; WATER PUMP | 200204-200512 | A | |
| 24 | 9099521433 | 1 | BOLT; WATER PUMP | 200204-200512 | A | |
| 24 | 280510500 | 2 | BOLT; WATER PUMP | 200601- | ||
| 24 | 280510700 | 1 | BOLT; WATER PUMP | 200601- | ||
| 24 | 286510350 | 1 | BOLT; WATER PUMP | 200601- | ||
| 25 | 5136420072 | 1 | CENTER; WATER PUMP | 198508- | ||
| 28 | 1095030700 | 1 | WASHER; WATER PUMP | 198508- | ||
| 29 | 1136310740 | 1 | SHAFT; WATER PUMP | 198508- | ||
| 65 | 9030908200 | 3 | SCREW; COVER,WATER PUMP | 198508- | ||
| 117 | 8972236600 | 1 | CONNECTOR; BYPASS | 199906-200001 | ||
| 117 | 8972498951 | 1 | CONNECTOR; BYPASS | 200002- |
