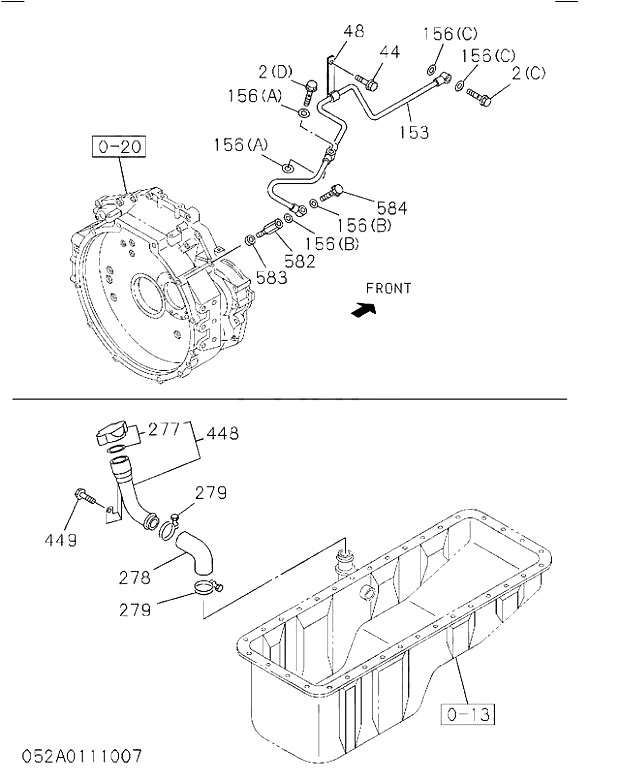

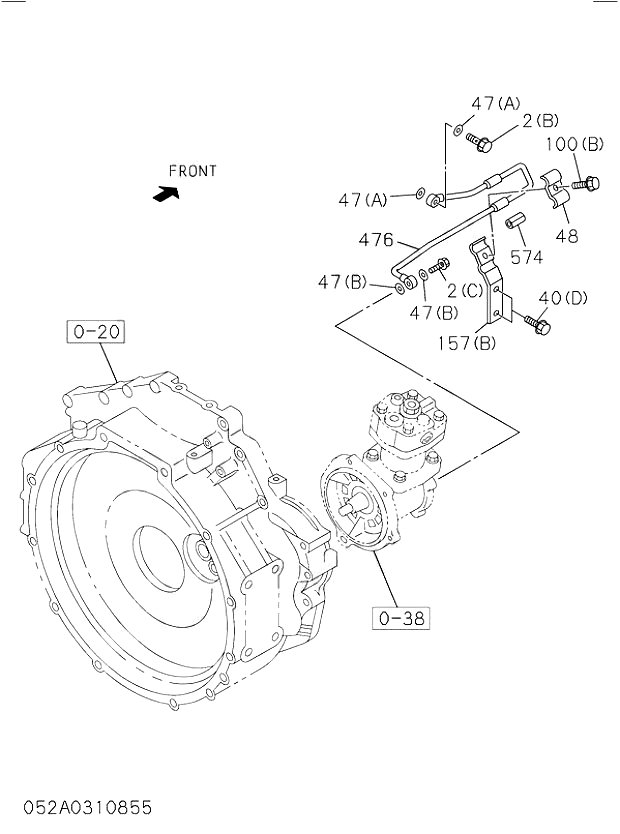

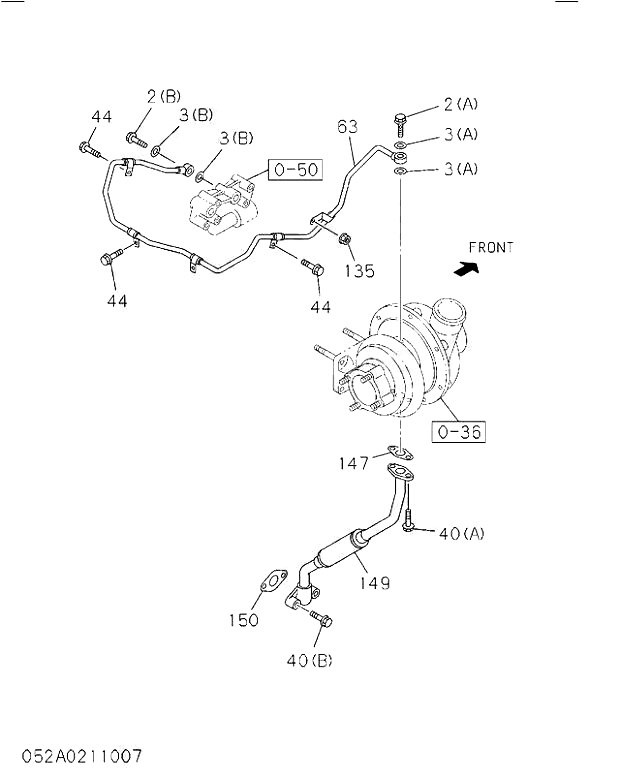

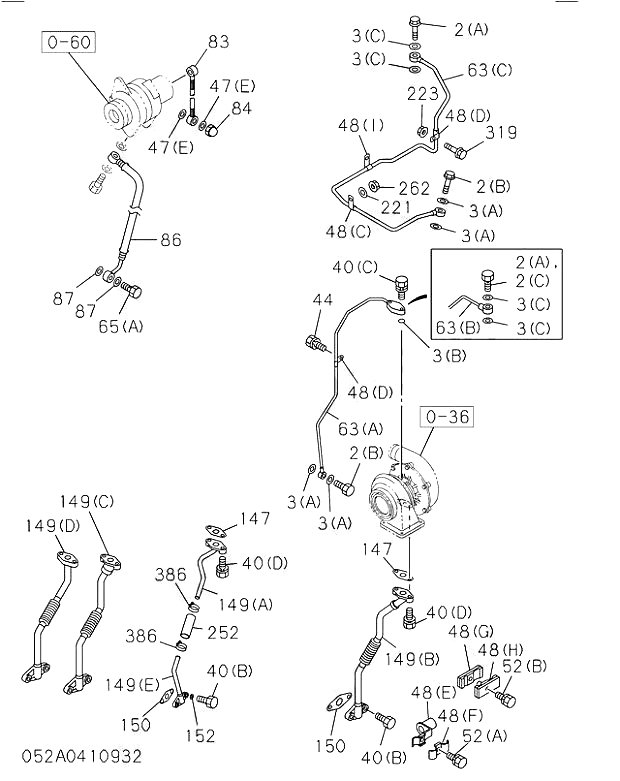

052 oil and vacuum piping engine

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
002(A)89722257101BOLT; EYE,OIL PIPE199909-
002(B)10967508101BOLT; EYE,OIL PIPE198508-
003(A)10963008402GASKET; EYE BOLT,OIL PIPE198508-
003(C)90957141202GASKET; EYE BOLT,OIL PIPE199909-
037(E)11331387301PIPE; OIL,FILTER TO COOLER199907-
040(A)2868082003BOLT; OIL PIPE199912-200302
040(A)2868084001BOLT; OIL PIPE199912-200302
040(A)90957141213BOLT; OIL PIPE200303-200512
040(A)90957141221BOLT; OIL PIPE200303-200512
040(A)2865082003BOLT; OIL PIPE200601-
040(A)2865084001BOLT; OIL PIPE200601-
040(B)2808085002BOLT; OIL PIPE198508-200512
040(B)2805085002BOLT; OIL PIPE200601-
040(D)2808082202BOLT; OIL PIPE200208-
442808081201BOLT; CLIP,OIL PIPE199708-200512
442805081201BOLT; CLIP,OIL PIPE200601-
047(A)90992118802GASKET; OIL PIPE198508-
047(B)10962346201GASKET; OIL PIPE199909-
047(B)89702659001GASKET; OIL PIPE199909-200302
047(B)90992118811GASKET; OIL PIPE200303-
047(C)10963008502GASKET; OIL PIPE198508-200203
047(C)90992118822GASKET; OIL PIPE200204-200509
047(D)90992118832GASKET; OIL PIPE198508-200402
047(D)90992118842GASKET; OIL PIPE200403-200509
048(C)10970069521CLIP; OIL PIPE199902-200302
048(C)90992118854CLIP; OIL PIPE199907-
048(C)90992118861CLIP; OIL PIPE200303-
048(D)50970405411CLIP; OIL PIPE198508-
048(I)90952506501CLIP; OIL PIPE199907-200302
048(I)90992118871CLIP; OIL PIPE200303-200606
048(I)9523506501CLIP; OIL PIPE200607-
6211331153221PIPE; OIL,PUMP TO C/BL198508-
063(C)11331387201PIPE; OIL,TURBOCHARGER FEED199907-
065(A)10967508601BOLT; JOINT,OIL PIPE198508-200203
065(A)90992118881BOLT; JOINT,OIL PIPE200204-200509
065(B)90992118891BOLT; JOINT,OIL PIPE198508-200203
065(B)90992118901BOLT; JOINT,OIL PIPE200204-200509
11090984402201NUT; CAP OIL PIPE198508-200107
11090992118911NUT; CAP OIL PIPE200108-
11710963008302GASKET; JOINT,OIL PIPE198508-
12890991751111CLIP; OIL PIPE,FILTER TO PUMP199705-200203
12890992118921CLIP; OIL PIPE,FILTER TO PUMP200204-
1382868102001BOLT; CLIP FIX199708-200008
1382808081601BOLT; CLIP FIX200009-200512
1382805081601BOLT; CLIP FIX200601-
1432808084004BOLT; OIL PIPE,OIL PUMP TO C/BL199708-200112
1435004084004BOLT; OIL PIPE,OIL PUMP TO C/BL200201-200512
1435054084004BOLT; OIL PIPE,OIL PUMP TO C/BL200601-
14710963705821GASKET; OIL PIPE TO TURBOCHARGER198508-200204
14789439064111GASKET; OIL PIPE TO TURBOCHARGER200205-
149(D)11331387421PIPE; OIL RETURN,TURBOCHARGER199907-
15010963706011GASKET; OIL PIPE TO C/BL198508-200005
15090992118931GASKET; OIL PIPE TO C/BL200006-
22190916460801WASHER; PL,CLIP FIX,OIL PIPE199907-200106
22190992118941WASHER; PL,CLIP FIX,OIL PIPE200107-200605
2219161460801WASHER; PL,CLIP FIX,OIL PIPE200606-
22351237900101TUBE; DIST,OIL PIPE CLIP199907-
2629115020801NUT; CLIP,OIL PIPE199907-200106
26290992118951NUT; CLIP,OIL PIPE200107-200602
2629118020801NUT; CLIP,OIL PIPE200603-
3192808103001BOLT; OIL PIPE,TURBOCHARGER199907-200512
3192805103001BOLT; OIL PIPE,TURBOCHARGER200601-
475(B)11331360301PIPE; OIL,OIL FILTER TO INJ PUMP198508-200202
475(B)90992118961PIPE; OIL,OIL FILTER TO INJ PUMP200203-200203
475(B)90992118971PIPE; OIL,OIL FILTER TO INJ PUMP200204-
