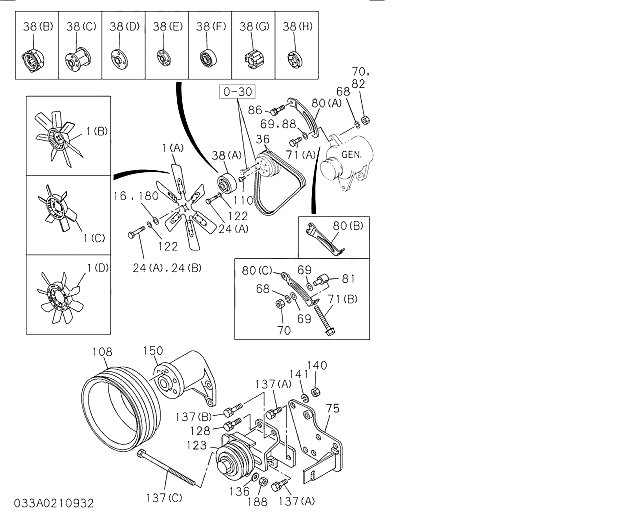

033 fan and fan belt

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
001(B)11366032811FAN; COOLING199907-
01690916470804WASHER; PL,COOLING FAN198508-200605A
01609161470804WASHER; PL,COOLING FAN200606-
021(A)12151111411GUIDE; FAN199909-
021(B)12155146411GUIDE; FAN199909-
024(B)10904407514BOLT; FAN199909-
024(C)02808104503BOLT; FAN199907-200512A
024(C)02868102502BOLT; FAN199907-200512A
024(C)02805104503BOLT; FAN200601-
024(C)02865102502BOLT; FAN200601-
03590916471006WASHER; PL199907-200605A
03509161471006WASHER; PL200606-
03611367149901BELT; COOLING FAN200005-
038(G)11364205401SPACER; FAN199904-
047(A)89722223411BRACKET; FAN199907-200405
047(A)89732637501BRACKET; FAN200406-
047(B)12333552911BRACKET; FAN199907-
047(C)89725309301BRACKET; FAN200007-200405
047(C)89732475801BRACKET; FAN200406-
06890915051201WASHER; LK,ADJ PLATE,GEN198508-200603A
06809151051201WASHER; LK,ADJ PLATE,GEN200604-
06990916071202WASHER; PL,ADJ PLATE,GEN198508-
07099911041201NUT; ADJ PLATE,GEN198508-200512A
07009111051201NUT; ADJ PLATE,GEN200601-
071(B)10900911411BOLT; ADJ PLATE,GEN198508-
080(B)11367411921PLATE; ADJ198508-200202
080(B)99911041211PLATE; ADJ200203-
08111367416101PIECE; SLIDING198508-
08602868104002BOLT; ADJ199708-200512A
08602865104002BOLT; ADJ200601-
11090349061002SCREW; PULLEY198508-
12290915050804WASHER; LK,FAN198910-200603A
12209151050804WASHER; LK,FAN200604-
16810933701706RUBBER; MTG199907-
182(A)99911041224BOLT; BRKT199907-200512A
182(A)99911041234BOLT; BRKT200601-
182(B)02808106002BOLT; BRKT199907-200104
182(B)02808107002BOLT; BRKT200105-200512A
182(B)02805107002BOLT; BRKT200601-
182(C)02808085001BOLT; BRKT199907-200512A
182(C)02805085001BOLT; BRKT200601-
182(D)02808581202BOLT; BRKT199907-200512A
182(D)02805581202BOLT; BRKT200601-
24212255902603TUBE; DISTANCE199907-
246(A)12155946001STAY; FAN200007-
246(B)12155943201STAY; FAN199907-
