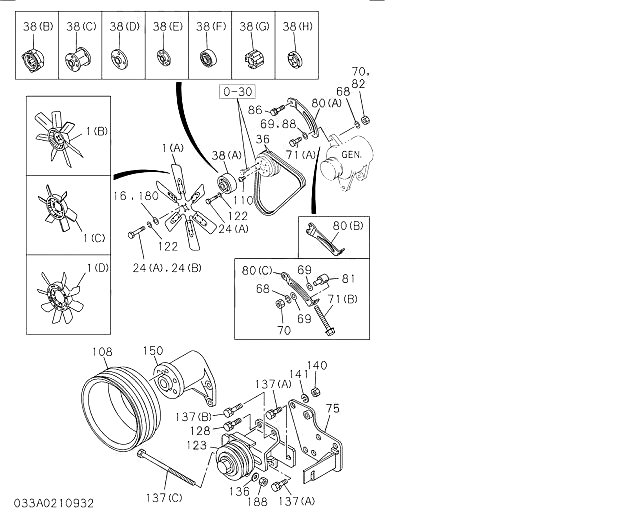

033 fan and fan belt

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
001(B)11366032811FAN; COOLING199907-
01609161470804WASHER; PL,COOLING FAN200606-
021(A)12151111411GUIDE; FAN199909-
021(B)12155146411GUIDE; FAN199909-
024(B)10904407514BOLT; FAN199909-
024(C)02805104503BOLT; FAN200601-
024(C)02865102502BOLT; FAN200601-
03509161471006WASHER; PL200606-
03611367150801BELT; COOLING FAN199612-201102
03689815290601BELT; COOLING FAN201103-
038(G)11364205401SPACER; FAN199904-
047(A)89732637501BRACKET; FAN200406-
047(B)12333552911BRACKET; FAN199907-
047(C)89732475801BRACKET; FAN200406-
06809151051201WASHER; LK,ADJ PLATE,GEN200604-
06990916071202WASHER; PL,ADJ PLATE,GEN198508-
07009111051201NUT; ADJ PLATE,GEN200601-
071(B)10900911411BOLT; ADJ PLATE,GEN198508-
080(B)11367411921PLATE; ADJ200203-
08111367416101PIECE; SLIDING198508-
08602865104002BOLT; ADJ200601-
11090349061002SCREW; PULLEY198508-
12209151050804WASHER; LK,FAN200604-
16810933701706RUBBER; MTG199907-
182(A)02868102504BOLT; BRKT199907-200512A
182(A)90916071214BOLT; BRKT200601-
182(B)02805107002BOLT; BRKT200601-
182(C)02805085001BOLT; BRKT200601-
182(D)02805581202BOLT; BRKT200601-
24212255902603TUBE; DISTANCE199907-
246(A)12155946001STAY; FAN200007-
246(B)12155943201STAY; FAN199907-
