Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

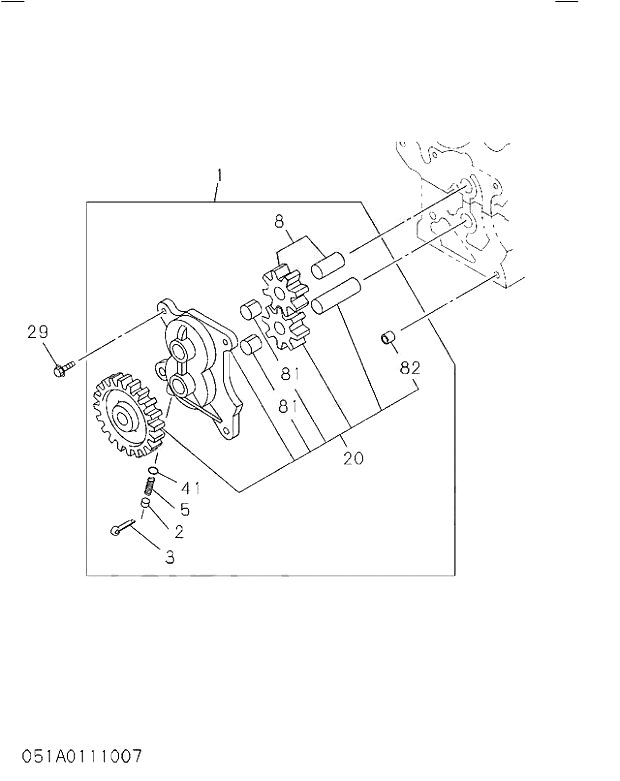

001(C) | 1131002770 | 1 | PUMP ASM; OIL | 198508- | ||
002 | 5131650040 | 1 | SEAT; SPR | 198508- | ||
003 | 0811240300 | 1 | PIN; SPLIT | 200607- | ||
005 | 5095800980 | 1 | SPRING; COIL | 198508- | ||
008 | 5131250010 | 1 | GEAR; DRIVEN,OIL PUMP | 198508- | ||
011 | 1131130470 | 1 | COVER ASM; OIL PUMP | 198508- | ||
020 | 5131210050 | 1 | GEAR; DRIVE,OIL PUMP | 198508- | ||
029 | 0286510250 | 2 | BOLT; OIL PUMP | 200601- | ||
032(B) | 1131280180 | 1 | PINION; OIL PUMP DRIVING | 198508- | ||
037 | 1131190030 | 1 | DOWEL; COVER | 198508- | ||
039 | 9131190100 | 1 | COLLAR; OIL PUMP PINION | 198508- | ||
040 | 1131230160 | 1 | COUPLING; PINION TO SHAFT | 198508- | ||
041 | 5098430030 | 1 | BALL; OIL RELIEF VLV | 198508- | ||
042 | 1131401160 | 1 | STRAINER; OIL,OIL PUMP | 200006- | ||
097 | 1090440470 | 4 | BOLT; CASE | 198508- |
