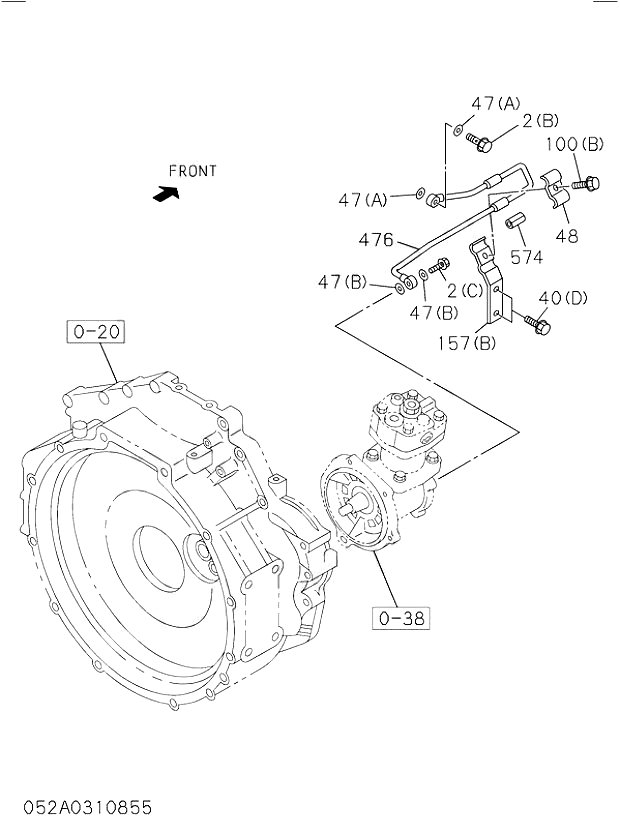

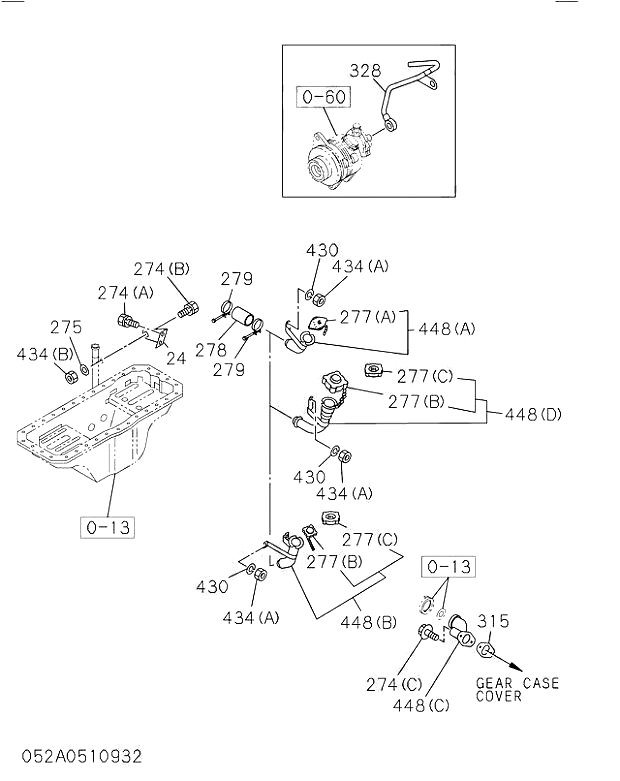

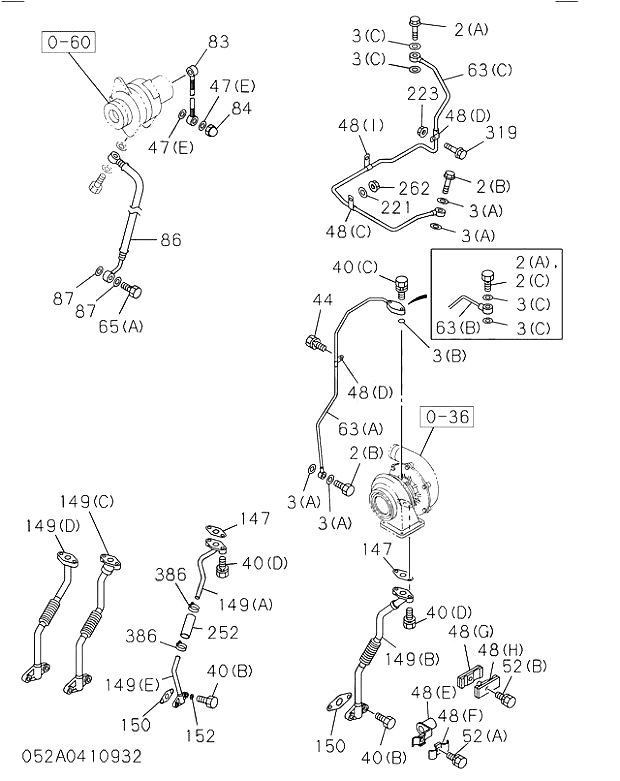

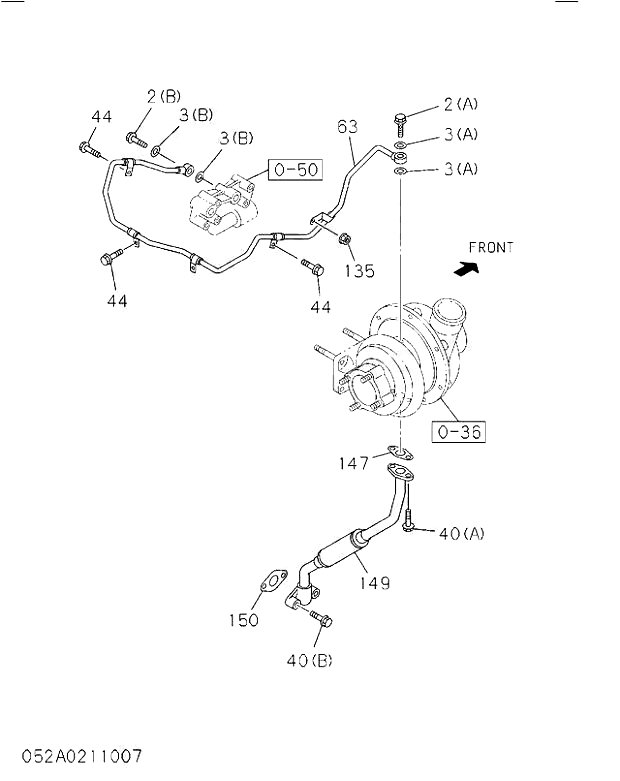

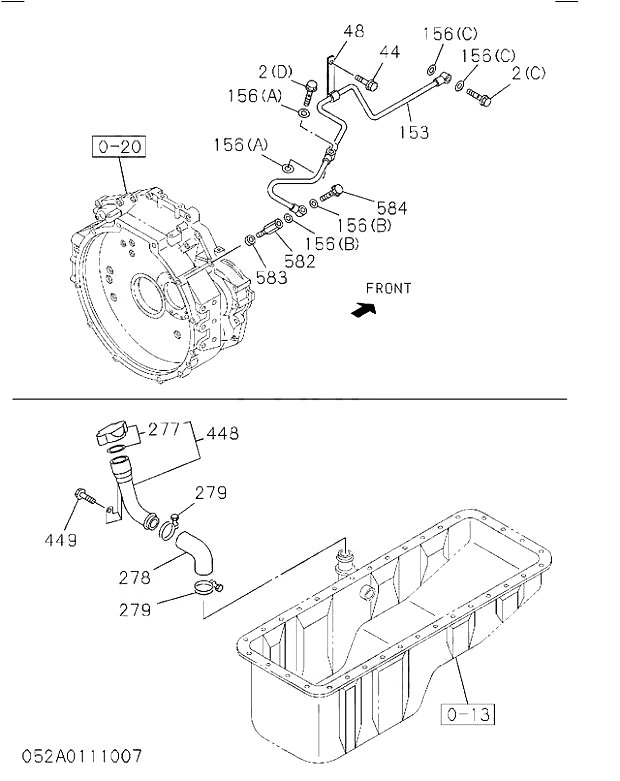

052 oil and vacuum piping engine

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
002(A)89722257101BOLT; EYE,OIL PIPE199909-
002(B)10967508101BOLT; EYE,OIL PIPE198508-
003(A)10963008402GASKET; EYE BOLT,OIL PIPE198508-
003(C)90957141202GASKET; EYE BOLT,OIL PIPE199909-
037(E)11331387301PIPE; OIL,FILTER TO COOLER199907-
040(A)02865082003BOLT; OIL PIPE200601-
040(A)02865084001BOLT; OIL PIPE200601-
040(B)02805085002BOLT; OIL PIPE200601-
040(D)02808082202BOLT; OIL PIPE200208-
04402805081201BOLT; CLIP,OIL PIPE200601-
047(A)90992118802GASKET; OIL PIPE198508-
047(B)10962346201GASKET; OIL PIPE199909-
047(B)89702659001GASKET; OIL PIPE200303-
048(C)10970069521CLIP; OIL PIPE200303-
048(D)50970405411CLIP; OIL PIPE198508-
048(I)09523506501CLIP; OIL PIPE200607-
06211331153221PIPE; OIL,PUMP TO C/BL198508-
063(C)11331387201PIPE; OIL,TURBOCHARGER FEED199907-
11090984402201NUT; CAP OIL PIPE200108-
11710963008302GASKET; JOINT,OIL PIPE198508-
13802805081601BOLT; CLIP FIX200601-
14305054084004BOLT; OIL PIPE,OIL PUMP TO C/BL200601-
14789439064111GASKET; OIL PIPE TO TURBOCHARGER200205-
149(D)11331387421PIPE; OIL RETURN,TURBOCHARGER199907-
15010963706011GASKET; OIL PIPE TO C/BL200006-
22109161460801WASHER; PL,CLIP FIX,OIL PIPE200606-
22351237900101TUBE; DIST,OIL PIPE CLIP199907-
26209118020801NUT; CLIP,OIL PIPE200603-
31902808103001BOLT; OIL PIPE,TURBOCHARGER199907-200512
31902805103001BOLT; OIL PIPE,TURBOCHARGER200601-
475(B)11331360301PIPE; OIL,OIL FILTER TO INJ PUMP200204-
