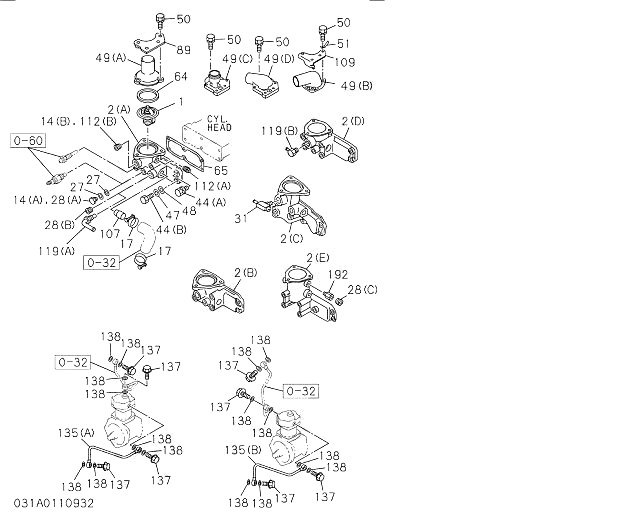

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001 | 8981902060 | 1 | THERMOSTAT | 201102-201105 | |
| 001 | 8981902061 | 1 | THERMOSTAT | 201106- | |
| 002(A) | 8972248641 | 1 | HOUSING; THERMOSTAT | 200111- | |
| 017 | 5097040460 | 2 | CLIP; WATER HOSE | 198508- | |
| 044(A) | 0286510350 | 1 | BOLT; HSG TO HD | 200601- | |
| 044(B) | 0108060850 | 1 | BOLT; HSG TO HD | 199911- | |
| 044(B) | 0108060950 | 2 | BOLT; HSG TO HD | 199911- | |
| 047 | 0915105100 | 3 | WASHER; LK,THERMOSTAT HSG | 200604- | |
| 048 | 0916105100 | 3 | WASHER; PL,THERMOSTAT HSG | 200606- | |
| 049(C) | 8973243870 | 1 | PIPE; WATER OUTLET | 200110- | |
| 050 | 0280808220 | 1 | BOLT; OUTLET PIPE | 199907- | |
| 050 | 0280508350 | 2 | BOLT; OUTLET PIPE | 200601- | |
| 064 | 1137430160 | 1 | GASKET; OUTLET PIPE TO HSG | 198508- | |
| 065 | 8972357892 | 1 | GASKET; HSG TO HD | 198508- | |
| 107 | 8972533621 | 1 | PIPE; WATER,BYPASS | 198508- | |
| 119(B) | 5137210341 | 1 | PIPE; HTR | 199609- | |
