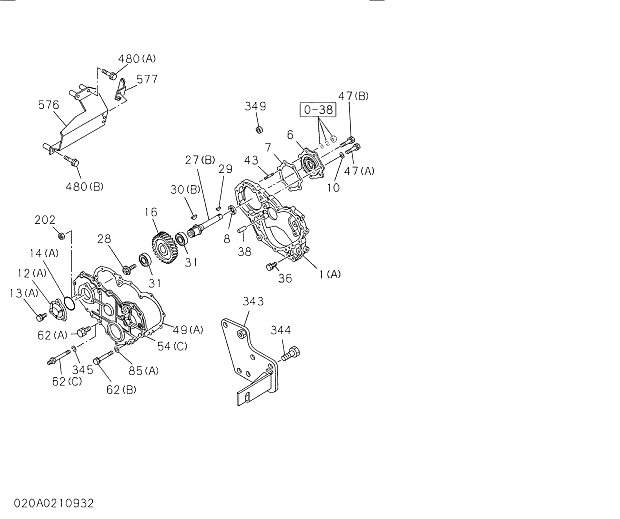

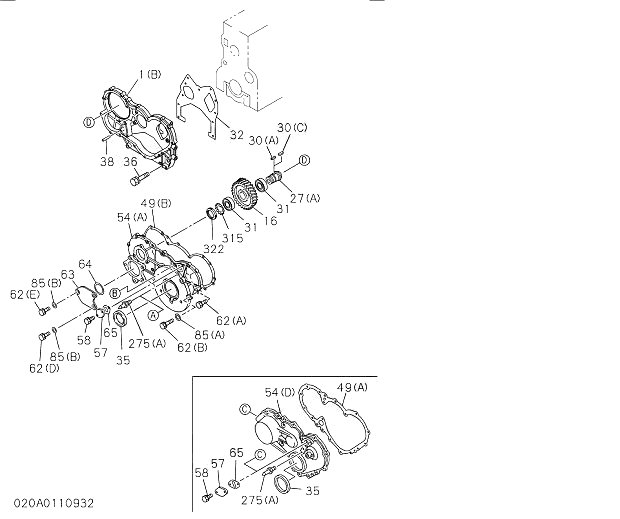

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
2 | 1113416892 | 1 | HOUSING; FLYWHEEL | 200508-200703 | C |
2 | 8980416343 | 1 | HOUSING; FLYWHEEL | 200704- | |
16 | 8976011531 | 1 | GEAR; INJ PUMP DRIVE | 200508- | |
32 | 8970287481 | 1 | GASKET; GEAR CASE TO C/BL | 200508- | |
35 | 8976023783 | 1 | SEAL; OIL,CRANKSHAFT FRT | 200508- | |
43 | 9098311610 | 1 | STUD; BRG COVER | 200508-200509 | |
43 | 1093021120 | 1 | STUD; BRG COVER | 200510- | |
51 | 0280808350 | 13 | BOLT; GEAR CASE COVER | 200508-200512 | A |
51 | 0280508350 | 13 | BOLT; GEAR CASE COVER | 200601- | |
62 | 0280808140 | 3 | BOLT; COVER | 200508- | |
68 | 1113211601 | 1 | COVER ASM; GEAR CASE COVER | 200508- | |
94 | 0911602140 | 1 | NUT; GEAR | 200508-200602 | A |
94 | 0911802140 | 1 | NUT; GEAR | 200603- | |
115(A) | 8973061131 | 1 | SENSOR; REVOLUTION,ENG SPD | 200508- | |
115(B) | 8980148310 | 1 | SENSOR; REVOLUTION,ENG SPD | 200508- | |
167 | 1112191630 | 1 | COVER; OIL | 200508- | |
175 | 8972093423 | 1 | SEAL; OIL,CR/SHF,RR | 200508- | |
177(A) | 0280806120 | 1 | BOLT; SENSOR | 200508-200512 | |
177(A) | 0280506120 | 1 | BOLT; SENSOR | 200601- | |
177(B) | 0280906120 | 1 | BOLT; SENSOR | 200508-200512 | |
177(B) | 0280606120 | 1 | BOLT; SENSOR | 200601- | |
177(C) | 0280806160 | 1 | BOLT; SENSOR | 200508-200512 | A |
177(C) | 0280506160 | 1 | BOLT; SENSOR | 200601- | |
211 | 8943939950 | 1 | BOLT; HSG | 200508- | |
211 | 0168062600 | 1 | BOLT; HSG | 200508-200512 | A |
211 | 0281810500 | 1 | BOLT; HSG | 200508-200512 | A |
211 | 9016662700 | 11 | BOLT; HSG | 200508-200512 | A |
211 | 0168562600 | 1 | BOLT; HSG | 200601- | |
211 | 0169562700 | 11 | BOLT; HSG | 200601- | |
211 | 0281510500 | 1 | BOLT; HSG | 200601- | |
220 | 9992023120 | 1 | PLUG; GEAR CHECK HOLE | 200508- | |
224 | 9044114350 | 2 | STUD; STARTER | 200508-200604 | A |
224 | 0440114350 | 2 | STUD; STARTER | 200605- | |
225 | 8943965120 | 4 | STUD; OIL PAN | 200508- | |
228 | 9944112350 | 1 | STUD; AIR CMPR | 200508-200604 | A |
228 | 0440112350 | 1 | STUD; AIR CMPR | 200605- | |
235 | 1096300840 | 1 | GASKET; PLUG GEAR CHECK HOLE | 200508- | |
241 | 8943931401 | 12 | WASHER; PL,HSG | 200508- | |
250 | 0280808180 | 2 | BOLT; COVER,OIL | 200508- | |
264 | 0911502120 | 1 | NUT; COVER | 200508-200602 | A |
264 | 0911802120 | 1 | NUT; COVER | 200603- | |
275 | 1113270501 | 1 | POINTER; TIMING CHECK HOLE | 200508- | |
290 | 8971019740 | 1 | PLUG; SENSOR HOLE | 200508-200603 | |
290 | 9992023121 | 1 | PLUG; SENSOR HOLE | 200604- | |
356 | 8943941860 | 1 | GASKET; COVER | 200508- | |
479 | 1096235700 | 1 | GASKET; COVER | 200508- | |
480 | 0281812700 | 3 | BOLT; COVER | 200508-200512 | A |
480 | 0281512700 | 3 | BOLT; COVER | 200601- | |
484 | 5097003071 | 1 | CLIP; BAND | 200508- | |
485(A) | 8973871940 | 1 | GASKET; SENSOR | 200508- | |
487(A) | 8980238241 | 1 | COVER; HOLE | 200508- | |
487(B) | 8976014201 | 1 | COVER; HOLE | 200508- | |
