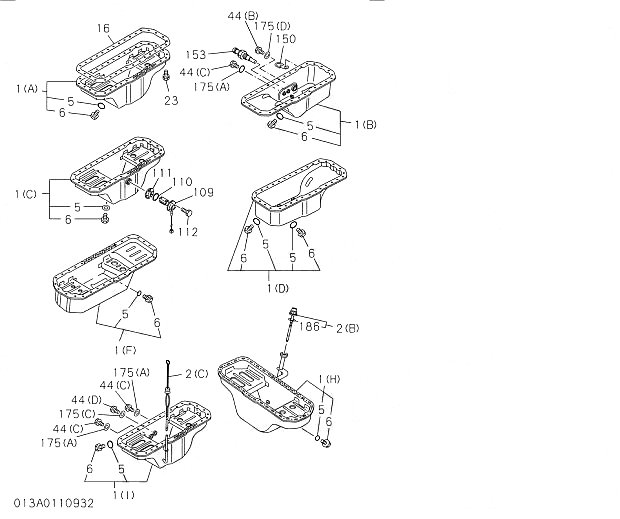

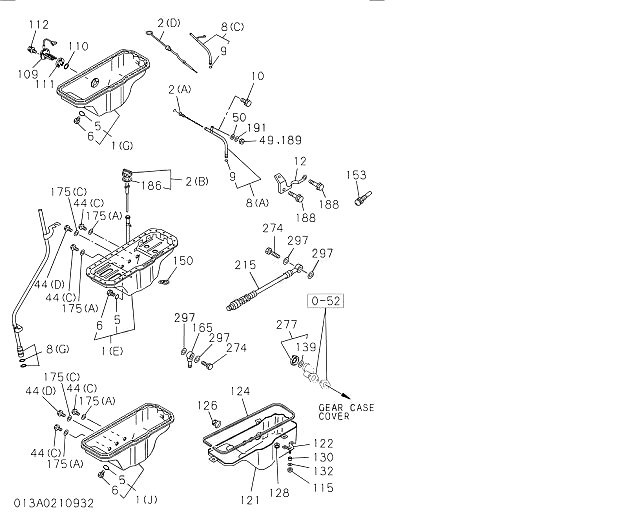

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1(F) | 1113614330 | 1 | PAN ASM; OIL | 198308 - 198807 | |
| 1(G) | 1113614661 | 1 | PAN ASM; OIL | 198808 - | |
| 2(B) | 1117600581 | 1 | GAUGE; OIL LEVEL | 198308 - | |
| 3 | 1096230580 | 1 | GASKET; DRAIN PLUG | 198308 - | |
| 6 | 1096040220 | 1 | PLUG; OIL DRAIN | 198308 - | |
| 8(A) | 1117661821 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 198308 - | |
| 9 | 5096230020 | 1 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 198308 - | |
| 10 | 9019108160 | 1 | BOLT; GUIDE TUBE | 198308 - 199003 | A |
| 10 | 0500408160 | 1 | BOLT; GUIDE TUBE | 199004 - | |
| 13 | 9091605080 | 1 | WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE | 198308 - | |
| 16 | 1113670640 | 1 | GASKET; OIL PAN TO C/BL | 198308 - 199603 | A |
| 16 | 1113670980 | 1 | GASKET; OIL PAN TO C/BL | 199604 - | |
| 22 | 9091506100 | 11 | WASHER; LK,OIL PAN | 198308 - | |
| 23 | 9019310350 | 29 | BOLT; OIL PAN | 198308 - 199003 | A |
| 23 | 0500510350 | 29 | BOLT; OIL PAN | 199004 - | |
| 23 | 9016560000 | 1 | BOLT; OIL PAN | 198308 - 199003 | A |
| 23 | 0168060000 | 1 | BOLT; OIL PAN | 199004 - | |
| 23 | 9016560650 | 4 | BOLT; OIL PAN | 198308 - 199003 | A |
| 23 | 0168060650 | 4 | BOLT; OIL PAN | 199004 - | |
| 23 | 9016660700 | 6 | BOLT; OIL PAN | 198308 - | |
| 47(B) | 1113691150 | 1 | CLIP; HOSE,AIR BREATHER | 198308 - | |
| 58(A) | 1117691190 | 1 | STAY; GUIDE TUBE | 198308 - | |
| 108(B) | 1113691340 | 1 | COVER; OIL PAN | 198308 - | |
| 109 | 1824800280 | 1 | SWITCH; OIL LEVEL | 198308 - 199410 | C |
| 109 | 8971193581 | 1 | SWITCH; OIL LEVEL | 199411 - 199510 | |
| 110 | 1096233550 | 1 | GASKET; SW,OIL LEVEL | 198308 - | |
| 111 | 5113690720 | 1 | SPACER; SW,OIL LEVEL | 198308 - | |
| 112 | 9019706280 | 3 | BOLT; SW,OIL LEVEL | 198308 - 199003 | A |
| 112 | 0501406280 | 3 | BOLT; SW,OIL LEVEL | 199004 - | |
| 131 | 9019310200 | 4 | BOLT; COVER NOISE SHIELD | 198308 - 198807 | |
| 151 | 9113692890 | 1 | CLIP; WATER DRAIN | 198308 - | |
| 226(A) | 1113490960 | 1 | STAY; HSG TO OIL PAN | 198308 - | |
| 226(C) | 1113490950 | 1 | STAY; HSG TO OIL PAN | 198308 - | |
| 241 | 1090200081 | 2 | BOLT; STAY TO OIL PAN | 198308 - | |
| 248 | 9091505140 | 2 | WASHER; LK,STAY TO OIL PAN | 198308 - | |
