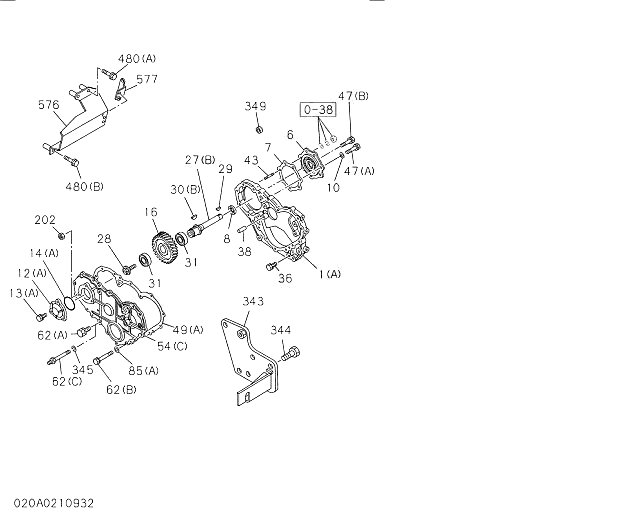

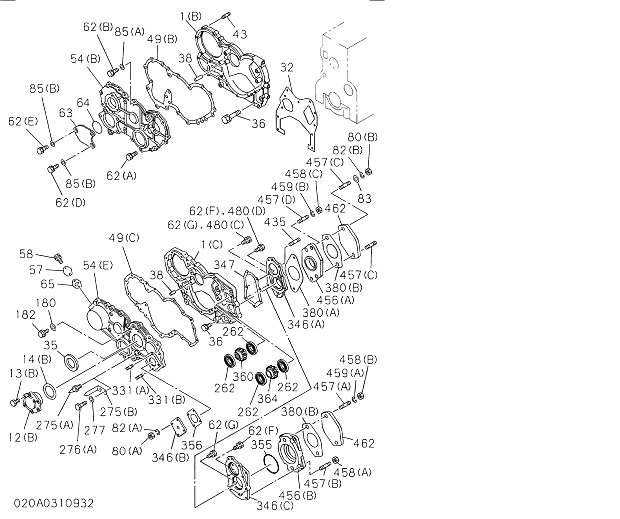

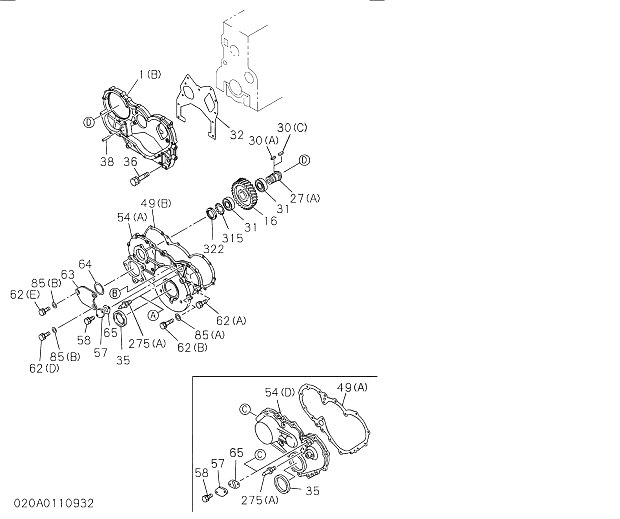

Двигатели-6rb1-tpf-020 timing gear case and flywheel housing

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
111131103401CASE; TIMING GEAR198604 -
2(A)11134135531HOUSING; FLYWHEEL198308 - 199310C
2(A)11134147031HOUSING; FLYWHEEL199311 -
10909160508012WASHER; PL,BRG COVER198308 - 199303
10909160508010WASHER; PL,BRG COVER199304 - 199807
10909160508010WASHER; PL,BRG COVER199808 -
1291132505812COVER; BRG,GEAR CASE,FRT198308 - 199407A
1211132501902COVER; BRG,GEAR CASE,FRT199408 -
1611252401311GEAR; INJ PUMP DRIVE198308 -
2611132900801ADAPTER198308 -
3090805551901KEY; DRIVE GEAR198308 -
3211131201101GASKET; GEAR CASE TO C/BL198503 - 198811
3211131201501GASKET; GEAR CASE TO C/BL198812 - 199501C
3211131201601GASKET; GEAR CASE TO C/BL199502 -
3510962531601SEAL; OIL,CRANKSHAFT FRT198308 - 198811C
3510962544201SEAL; OIL,CRANKSHAFT FRT198812 -
3690193123006BOLT; GEAR CASE198308 - 199003A
3605005123006BOLT; GEAR CASE199004 -
3690165626503BOLT; GEAR CASE198308 - 199003A
3601680626503BOLT; GEAR CASE199004 -
3690236102801BOLT; GEAR CASE198308 -
3690105583501BOLT; GEAR CASE198308 - 199003A
3601080583501BOLT; GEAR CASE199004 - 199006C
3601081083501BOLT; GEAR CASE199007 -
3790985195001WASHER; PL,GEAR CASE198308 -
3710950318311WASHER; PL,GEAR CASE198308 -
4099911041203NUT; GEAR CASE198308 -
4190915051206WASHER; LK,GEAR CASE198308 -
4291131906522DOWEL; GEAR CASE COVER198308 -
43(A)90441103504STUD; BRG COVER198308 - 198705C
43(A)10930204814STUD; BRG COVER198706 - 199807
43(A)10930204814STUD; BRG COVER199808 -
43(B)109300050012STUD; BRG COVER198308 - 199807
43(B)109300050012STUD; BRG COVER199808 -
44909110408012NUT; BRG COVER198308 - 199807
44909110408012NUT; BRG COVER199808 -
4911132202901GASKET; GEAR CASE TO COVER198308 - 199603C
4911132205101GASKET; GEAR CASE TO COVER199604 -
5190199103508BOLT; GEAR CASE COVER198401 - 199003A
5105015103508BOLT; GEAR CASE COVER199004 -
5190199104501BOLT; GEAR CASE COVER198308 - 199003A
5105015104501BOLT; GEAR CASE COVER199004 -
5190199102503BOLT; GEAR CASE COVER198308 - 199003A
5105015102503BOLT; GEAR CASE COVER199004 -
5190235103502BOLT; GEAR CASE COVER198308 - 199003A
5102380103502BOLT; GEAR CASE COVER199004 -
5411132102341COVER; GEAR CASE198308 -
8090911041004NUT; COVER198308 - 199807
8090911041004NUT; COVER199808 -
8290915051004WASHER; LK,COVER198308 - 199807
8290915051004WASHER; LK,COVER199808 -
8390916051004WASHER; PL,COVER198401 -
94(A)99911152401NUT; GEAR198308 -
9590915052401WASHER; LK,GEAR198308 -
9690916052401WASHER; PL,GEAR198308 -
11518151026201SENSOR; REVOLUTION,ENG SPD198308 -
17510962539601SEAL; OIL,CR/SHF,RR198604 - 198807C
17510962544101SEAL; OIL,CR/SHF,RR198808 -
204909150514013WASHER; LK,HSG198308 -
20490915051401WASHER; LK,HSG198903 -
20599911041401NUT; HSG198308 -
20691134904901COVER; STARTER CHECK HOLE198308 -
211991656450010BOLT; HSG198308 - 198902C
211109033002010BOLT; HSG198903 -
21199165645502BOLT; HSG198308 - 198902C
21110903300302BOLT; HSG198903 -
21190197084006BOLT; HSG198308 - 199003A
21105014084006BOLT; HSG199004 -
213(A)91134201901POINTER; FLYWHEEL HSG198308 -
22490441143503STUD; STARTER198308 -
22911134907301COVER; TIMING CHECK HOLE198402 - 199301A
22911134912201COVER; TIMING CHECK HOLE199302 -
23190190081202BOLT; COVER198402 - 199301A
23105004081202BOLT; COVER199302 -
24790915050801WASHER; LK,POINTER,FLYWHEEL HSG198402 -
27511132701801POINTER; TIMING CHECK HOLE198308 - 199807
27511132701801POINTER; TIMING CHECK HOLE199808 -
336909150508012WASHER; LK,BRG COVER198308 - 199807
336909150508012WASHER; LK,BRG COVER199808 -
