Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

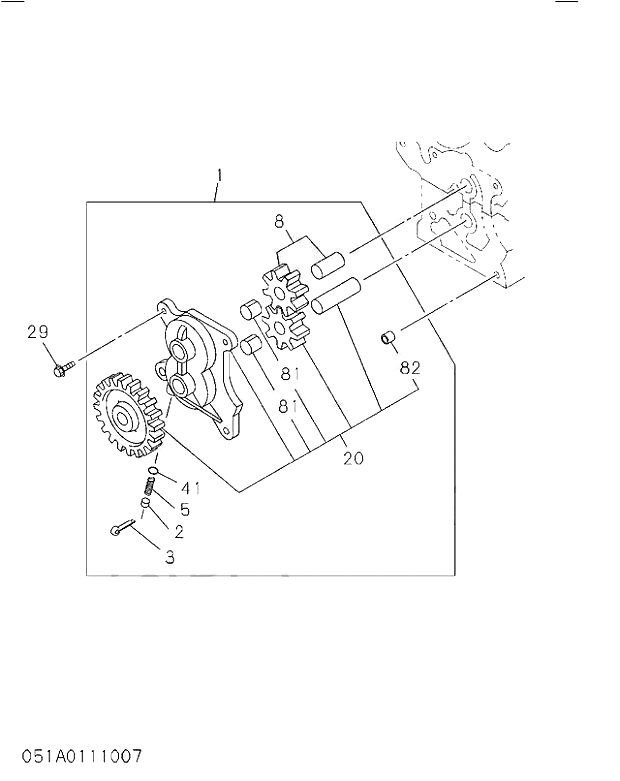

1 | 1131002010 | 1 | PUMP ASM; OIL | 198602 - | |
2 | 1131650050 | 1 | SEAT; SPR | 198308 - | |
3 | 9081040400 | 1 | PIN; SPLIT | 198308 - | |
4 | 1131690030 | 1 | STOPPER; OIL RELIEF VLV | 198308 - | |
5 | 1095802020 | 1 | SPRING; COIL | 198308 - | |
6 | 1131610050 | 1 | VALVE ASM; RELIEF,OIL PUMP | 198308 - | |
7 | 9019310300 | 2 | BOLT; COVER,OIL PUMP | 198308 - 199002 | A |
7 | 0500510300 | 2 | BOLT; COVER,OIL PUMP | 199003 - | |
8 | 1131200302 | 1 | GEAR; DRIVEN,OIL PUMP | 198308 - | |
8 | 1131200341 | 1 | GEAR; DRIVEN,OIL PUMP | 198308 - | |
9 | 1131290070 | 1 | SPINDLE; IDLE GEAR OIL PUMP | 198308 - | |
10(A) | 1131200351 | 1 | GEAR; W/BUSHING OIL PUMP | 198308 - | |
11 | 1131100221 | 1 | COVER ASM; OIL PUMP | 198308 - | |
29 | 9023610250 | 2 | BOLT; OIL PUMP | 198308 - | |
29 | 9016660350 | 2 | BOLT; OIL PUMP | 198308 - 199003 | A |
29 | 9023610350 | 2 | BOLT; OIL PUMP | 199004 - | |
47 | 9091506100 | 4 | WASHER; LK,OIL PUMP | 198308 - | |

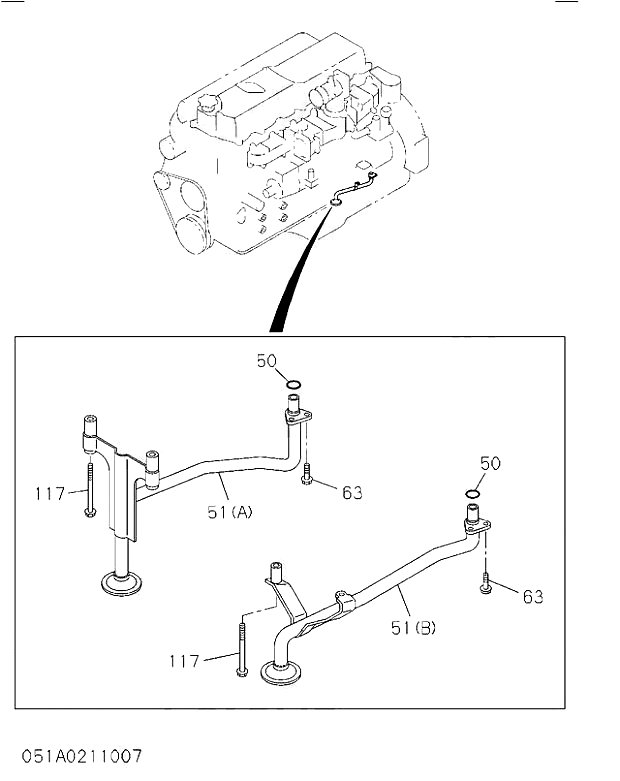

50 | 1096233970 | 1 | GASKET; OIL PIPE,STRAINER TO PUMP | 198506 - | |
51 | 1133127491 | 1 | STRAINER & PIPE ASM; OIL | 198708 - | |
60 | 1133451161 | 1 | BRACKET; OIL STRAINER | 198308 - | |
61 | 9016560550 | 2 | BOLT; OIL STRAINER | 198308 - 199003 | A |
61 | 0168060550 | 2 | BOLT; OIL STRAINER | 199004 - | |
64 | 9091505100 | 2 | WASHER; LK,PIPE PUMP STRAINER | 198308 - | |
80 | 9019708200 | 1 | BOLT; OIL PIPE FIX | 198308 - 199003 | A |
80 | 0501408200 | 1 | BOLT; OIL PIPE FIX | 199004 - | |
81 | 1131160070 | 4 | BUSHING; GEAR SHAFT,OIL PUMP | 198308 - | |
