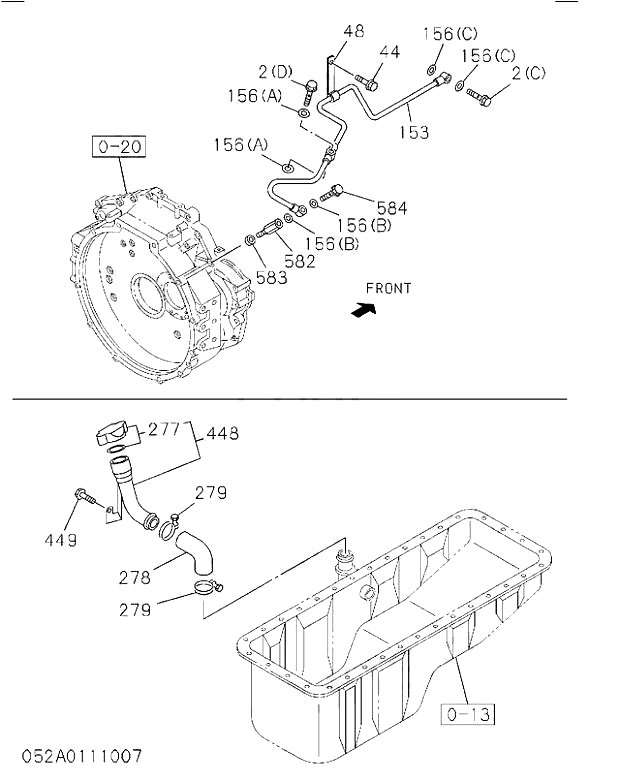

052 oil and vacuum piping engine

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
1(A)91331267501PIPE; OIL,INJ PUMP TO C/BL198308 -
2(B)10967507703BOLT; EYE,OIL PIPE198308 -
2(C)10967508501BOLT; EYE,OIL PIPE198308 -
3(A)10963008302GASKET; EYE BOLT,OIL PIPE198308 -
3(B)10963008404GASKET; EYE BOLT,OIL PIPE198308 -
2111334510511STAY; OIL PIPE198308 -
3711331184001PIPE; OIL,FILTER TO COOLER198308 -
40(A)90191082203BOLT; OIL PIPE198308 - 199003A
40(A)05004082205BOLT; OIL PIPE199004 -
40(A)90191083201BOLT; OIL PIPE198308 - 199003A
40(A)05004083201BOLT; OIL PIPE199004 -
40(B)90191083202BOLT; OIL PIPE198308 - 199003A
40(B)05004083202BOLT; OIL PIPE199004 -
40(C)90191082202BOLT; OIL PIPE198308 - 199003A
4490197082001BOLT; CLIP,OIL PIPE198308 - 199003A
4405014082001BOLT; CLIP,OIL PIPE199004 -
4710962317002GASKET; OIL PIPE198308 - 199004C
4710962345002GASKET; OIL PIPE199004 -
4810970033201CLIP; OIL PIPE198308 -
54(B)11334514601STAY; OIL STRAINER198709 -
54(D)11334514701STAY; OIL STRAINER198709 -
6211331170411PIPE; OIL,PUMP TO C/BL198308 -
6311331258511PIPE; OIL,TURBOCHARGER FEED198308 -
72(A)90915051001WASHER; LK,OIL PIPE198308 -
72(B)90915050802WASHER; LK,OIL PIPE198308 -
7490911040801NUT; CLIP,OIL PIPE,PUMP TO BODY198308 -
7690916060801WASHER; CLIP198308 -
7790191081601BOLT; STAY,PUMP TO BODY198308 - 199003A
7705004081601BOLT; STAY,PUMP TO BODY199004 -
78(A)90165605501BOLT; OIL PIPE,PUMP TO BODY198308 - 199003A
78(A)01680605501BOLT; OIL PIPE,PUMP TO BODY199004 -
78(A)90193102201BOLT; OIL PIPE,PUMP TO BODY198308 - 199003A
78(A)05005102201BOLT; OIL PIPE,PUMP TO BODY199004 -
78(B)90105587001BOLT; OIL PIPE,PUMP TO BODY198308 - 199003A
78(B)01080587001BOLT; OIL PIPE,PUMP TO BODY199004 -
78(B)90105588001BOLT; OIL PIPE,PUMP TO BODY198308 - 199003A
78(B)01080588001BOLT; OIL PIPE,PUMP TO BODY199004 -
8190191083502BOLT; OIL PIPE,BODY TO BODY198308 - 199003A
8105004083502BOLT; OIL PIPE,BODY TO BODY199004 -
8490984402201NUT; CAP,OIL PIPE198308 -
90(A)91331250811PIPE ASM; OIL,C/BL TO FILTER198308 -
91(A)90191082203BOLT; OIL PIPE,BODY TO FILTER198308 - 199003A
91(A)05004082203BOLT; OIL PIPE,BODY TO FILTER199004 -
91(A)90191084001BOLT; OIL PIPE,BODY TO FILTER198308 - 199003A
91(A)05004084001BOLT; OIL PIPE,BODY TO FILTER199004 -
9910970063401CLIP; OIL PIPE,FILTER TO COOLER198308 -
10090191102001BOLT; CLIP198308 - 199003A
10005004102001BOLT; CLIP199004 -
10111334511801BRACKET; CLIP198308 -
10299235142501BOLT; BRKT198308 - 199003A
10202380142501BOLT; BRKT199004 -
10390915051401WASHER; LK,BRKT198308 -
104(A)11331130411PIPE ASM; OIL,COOLER TO BODY198308 -
10510962317004GASKET; OIL PIPE,COOLER TO BODY198308 - 199003C
10510962345004GASKET; OIL PIPE,COOLER TO BODY199004 -
106(A)90191082204BOLT; OIL PIPE,COOLER TO BODY198308 - 199003A
106(A)05004082204BOLT; OIL PIPE,COOLER TO BODY199004 -
109(B)11331263901PIPE ASM; OIL,BODY TO HD198607 -
11090984463211NUT; CAP OIL PIPE198607 -
111(A)10963008304GASKET; JOINT,OIL PIPE,BODY TO HD198607 -
111(B)10963008402GASKET; JOINT,OIL PIPE,BODY TO HD198607 -
11210970014401CLIP; OIL PIPE,TAP CHAMBER CVR198308 -
11310970044401CLIP; WATER OUTLET PIPE198308 -
11411331170311PIPE ASM; OIL,BODY198308 -
11590991741101CLIP; PIPE,INJ PUMP198308 - 199401A
11590991764901CLIP; PIPE,INJ PUMP199402 -
11610963008304GASKET; CAP NUT,OIL PIPE198308 -
11910970091601CLIP; OIL PIPE,BODY TO CMPR198611 -
13291331241411PIPE ASM; OIL,INJ PUMP FEED198308 -
14590984463211NUT; CAP,OIL PIPE,TURBOCHARGER FEED198308 -
147(A)10962327401GASKET; OIL PIPE TO TURBOCHARGER198308 -
147(B)10962335901GASKET; OIL PIPE TO TURBOCHARGER198308 -
14911331258611PIPE; OIL RETURN,TURBOCHARGER198308 -
15010962329701GASKET; OIL PIPE TO C/BL198308 -
15190911040802NUT; PIPE,TURBOCHARGER RETAINER198308 -
15290915050802WASHER; LK,OIL PIPE,TURBOCHARGER198308 -
35750950311104WASHER; PL,STAY198308 -
37190191081604BOLT; STAY198308 - 199003A
37105004081604BOLT; STAY199004 -
47611331203111PIPE; OIL,C/BL TO AIR CMPR198308 -
