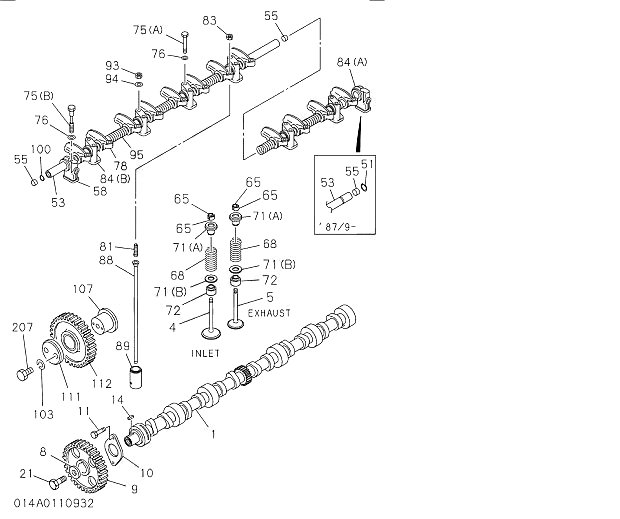

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 1125111781 | 1 | CAMSHAFT | 198308 - | ||
4 | 1125511290 | 12 | VALVE; INL | 198811 - | ||
5 | 1125520280 | 12 | VALVE; EXH | 198308 - | ||
6 | 9991115200 | 1 | NUT; CM/SHF GEAR | 198308 - | ||
8(A) | 9091505200 | 1 | WASHER; CM/SHF GEAR | 198308 - | ||
8(B) | 9098514870 | 1 | WASHER; CM/SHF GEAR | 198308 - | ||
9 | 1125220151 | 1 | GEAR; CM/SHF | 198308 - | ||
13 | 1116110080 | 1 | METAL; CM/SHF,NO 1 | 198308 - | ||
14 | 9080307180 | 1 | KEY; CM/SHF | 198308 - | ||
15 | 1116160230 | 1 | METAL; CM/SHF,NO 2 | 198308 - | ||
16 | 1116170150 | 1 | METAL; CM/SHF,NO 3 | 198308 - | ||
17 | 1116180160 | 1 | METAL; CM/SHF,NO 4 | 198308 - | ||
18 | 1116190520 | 1 | METAL; CM/SHF,NO 5 | 198308 - | ||
19 | 1116190550 | 1 | METAL; CM/SHF,NO 6 | 198308 - | ||
20 | 1116190580 | 1 | METAL; CM/SHF,NO 7 | 198308 - | ||
21 | 501510250 | 2 | BOLT; CM/SHF METAL,NO 7 | 199004 - | ||
24 | 9039104140 | 10 | BOLT; CM/SHF METAL | 198704 - | ||
25(A) | 9098160071 | 4 | SCREW; CM/SHF METAL | 198308 - | ||
25(B) | 1091220160 | 1 | SCREW; CM/SHF METAL | 198308 - | ||
25(C) | 1091220190 | 1 | SCREW; CM/SHF METAL | 198308 - | ||
26 | 1096300830 | 6 | GASKET; SET SCREW | 198308 - | ||
51 | 9091804300 | 4 | RING; SNAP,ROCKER ARM SHAFT | 198308 - | ||
52 | 9098553920 | 4 | WASHER; ROCKER ARM SHAFT | 198308 - | ||
53 | 9126200311 | 2 | SHAFT; ROCKER ARM | 198308 - | ||
55 | 9111290820 | 4 | PLUG; ROCKER SHAFT END | 198308 - | ||
61 | 9126160530 | 12 | SCREW; ADJ,BRIDGE | 198308 - 200012 | A | |
61 | 1126160420 | 12 | SCREW; ADJ,BRIDGE | 200101 - | ||
62 | 9098403100 | 12 | NUT; ADJ SCREW LK BRIDGE | 198308 - | ||
63 | 1126111700 | 12 | BRIDGE | 198308 - | ||
65 | 1125650010 | 48 | COLLAR; SPLIT | 198308 - | ||
68 | 9125611410 | 12 | SPRING; VLV | 198308 - | ||
68 | 1125610630 | 12 | SPRING; VLV | 198308 - | ||
71(A) | 1125630131 | 24 | SEAT; SPR | 198308 - | ||
71(B) | 1125630380 | 24 | SEAT; SPR | 198606 - | ||
72 | 1125690130 | 24 | SEAL; VLV GUIDE | 198904 - | ||
75 | 9016662800 | 12 | BOLT; BRKT | 198308 - | ||
76 | 9098519330 | 12 | WASHER; PL,BRKT | 198308 - | ||
77 | 1126280280 | 6 | BRACKET; ROCKER ARM | 198308 - | ||
78(A) | 9126114462 | 6 | ARM; ROCKER | 198308 - | ||
78(B) | 9126114482 | 6 | ARM; ROCKER | 198308 - | ||
81 | 9126160480 | 12 | SCREW; ADJ,ROCKER ARM | 198308 - | ||
83 | 9098403090 | 12 | NUT; ADJ SCREW,LK | 198308 - | ||
88 | 1125750411 | 12 | ROD; PUSH | 198802 - | ||
89 | 1125711991 | 12 | TAPPET; VLV | 198612 - 200103 | ||
89 | 1125712490 | 12 | TAPPET; VLV | 200104 - 200106 | C | |
89 | 1125712510 | 12 | TAPPET; VLV | 200107 - | ||
95 | 9099410880 | 4 | SPRING; ROCKER SHAFT | 198308 - | ||
101 | 1090200660 | 1 | BOLT; THRUST COLLAR | 198308 - | ||
106 | 1095030221 | 1 | WASHER; IDLE GEAR SHAFT | 198308 - | ||
107 | 1125310232 | 1 | SHAFT; IDLE GEAR | 198606 - | ||
110 | 1125230940 | 1 | GEAR ASM; IDLE | 198606 - | ||
111 | 1125350050 | 1 | COLLAR; THRUST,IDLE GEAR | 198606 - | ||
211 | 1091290030 | 12 | BOLT; GUIDE,TAPPET | 198308 - |
