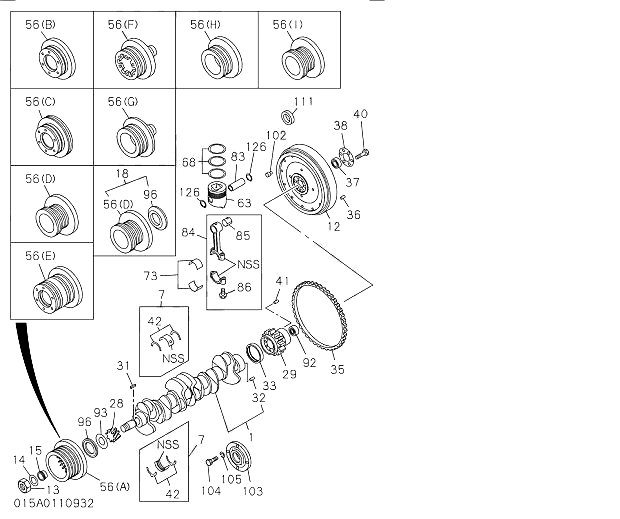

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 1123104972 | 1 | CRANKSHAFT | 198901 - | |
7 | 1115100601 | 1 | METAL KIT; CRANKSHAFT,STANDARD | 198606 - | |
12(A) | 1123311323 | 1 | FLYWHEEL | 198906 - | |
13 | 9123780390 | 1 | NUT; STARTING HANDLE | 198308 - | |
14 | 9098514310 | 1 | WASHER; PULLEY DAMPER | 198308 - | |
15 | 9123790610 | 1 | BUSHING; TAPER,CR/SHF PULLEY | 198308 - | |
16 | 9920612300 | 6 | BOLT; PULLEY TO CENTER | 198308 - | |
18(C) | 1123713680 | 1 | PULLEY; CR/SHF | 198308 - 199310 | |
18(C) | 1123714170 | 1 | PULLEY; CR/SHF | 199311 - | |
20(B) | 1123751890 | 1 | DAMPER; CR/SHF | 198308 - | |
23 | 1095030331 | 6 | WASHER; DAMPER | 198308 - | |
24 | 9023610220 | 6 | BOLT; DAMPER | 198308 - | |
26 | 1123713130 | 1 | PULLEY; CENTER | 199004 - | |
28 | 9125210452 | 1 | GEAR; CR/SHF | 198308 - | |
30 | 9123610242 | 1 | COLLAR; THRUST | 198308 - | |
31 | 9098670120 | 1 | KEY; FEATHER,CR/SHF | 198308 - | |
32 | 9081512200 | 1 | PIN; FLYWHEEL | 198308 - | |
33 | 1123190100 | 1 | RING; WEAR,CR/SHF | 198308 - | |
35 | 1123330130 | 1 | GEAR; RING | 198603 - | |
38 | 9123360251 | 1 | WASHER; FLYWHEEL | 198308 - | |
40 | 1090700171 | 8 | BOLT; FLYWHEEL | 198308 - | |
42 | 1115150400 | 2 | WASHER; THRUST,CR/SHF | 198606 - | |
57 | 9081504080 | 1 | PIN; PULLEY | 198308 - | |
63 | 1121117070 | 6 | PISTON | 198308 - | |
68 | 1121211120 | 6 | RING SET; PISTON,STANDARD | 198909 - | |
73 | 1122710480 | 6 | METAL SET; CONN ROD,STANDARD | 198607 - | |
74 | 1122730480 | 6 | METAL SET; CONN ROD,U/S=0.25 | 198308 - | |
75 | 1122740480 | 6 | METAL SET; CONN ROD,U/S=0.50 | 198308 - | |
83 | 1122110181 | 6 | PIN; PISTON | 198308 - | |
84 | 1122301081 | 6 | ROD ASM; CONN | 198308 - | |
85 | 1122510250 | 6 | BUSHING; CONNROD | 198308 - | |
86 | 1122350261 | 24 | BOLT; CONNROD | 198308 - | |
87 | 9098786101 | 12 | PIN; CONNROD BIG END | 198308 - | |
88 | 9098403160 | 24 | NUT; CONNROD | 198308 - | |
96 | 1123790200 | 1 | THROWER; DUST,CR/SHF | 198308 - | |
126 | 1095870750 | 12 | RING; SNAP,PISTON PIN | 198308 - | |
137 | 1095031110 | 6 | WASHER; LK,CR/SHF PULLEY | 198308 - | |
