Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
3(B) | 1141102250 | 2 | DUCT; INT | 198308 - | |
7(B) | 1141150310 | 2 | GASKET; INL MANIF TO HD | 198308 - 199603 | A |
7(B) | 1141150820 | 2 | GASKET; INL MANIF TO HD | 199604 - | |
8(C) | 1141170410 | 2 | GASKET; INT DUCT | 198308 - 199603 | A |
8(C) | 1141170870 | 2 | GASKET; INT DUCT | 199604 - | |
10 | 1143170310 | 1 | GASKET; INL PIPE TO MANIF | 198308 - 199603 | A |
10 | 1143170400 | 1 | GASKET; INL PIPE TO MANIF | 199604 - | |
22 | 9091505080 | 24 | WASHER; LK,INL MANIF | 198308 - | |
23 | 9091646080 | 24 | WASHER; PL,INL MANIF | 198308 - 199205 | |
23 | 9091646081 | 22 | WASHER; PL,INL MANIF | 199206 - | |
32(B) | 9041108300 | 6 | STUD; INL PIPE | 198308 - | |
32(C) | 9940105250 | 4 | STUD; INL PIPE | 198308 - | |
41(C) | 1141340022 | 1 | DUCT; INT COVER | 198308 - | |
47(A) | 9044110180 | 2 | STUD; BRKT,POWER STEERING | 198308 - | |
47(B) | 9044110160 | 1 | STUD; BRKT,POWER STEERING | 198308 - | |
49 | 9940105251 | 6 | STUD; CABLE | 198308 - | |

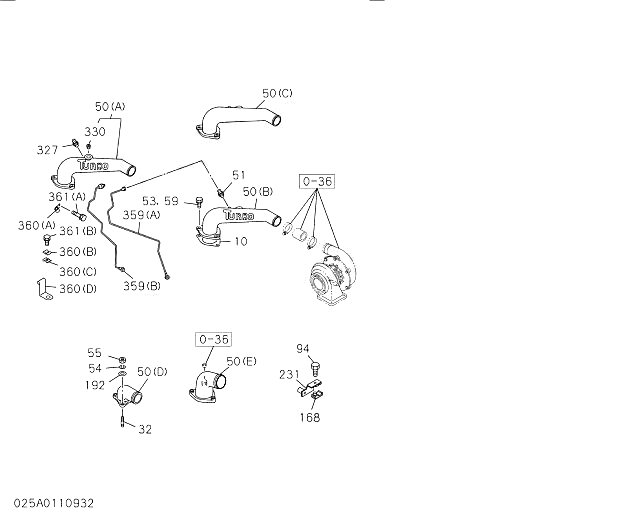

50(J) | 1141341272 | 1 | PIPE; INL | 198308 - | |
54(B) | 9940105252 | 6 | WASHER; LK,INL PIPE | 198308 - | |
67 | 9091104080 | 6 | NUT; INL DUCT | 198308 - | |
68 | 9091605080 | 6 | WASHER; PL,INL DUCT | 198308 - | |
70 | 9940105253 | 4 | STUD; WATER PIPE | 198308 - | |
71 | 9041106160 | 2 | STUD; FUEL PIPE | 198308 - | |
75 | 9041106250 | 1 | STUD; BRKT,AIR PIPE | 198308 - | |
78 | 501510300 | 4 | BOLT; INL PIPE TO INL MANIF | 198308 - | |
323(A) | 9010658500 | 12 | BOLT; DUCT | 198308 - | |
323(B) | 9098012730 | 3 | BOLT; DUCT | 198308 - | |
323(B) | 9098012760 | 9 | BOLT; DUCT | 198308 - | |
562 | 501408280 | 2 | BOLT; INL DUCT | 199004 - | |
