Двигатели-6rb1-tpq-033 fan and fan belt

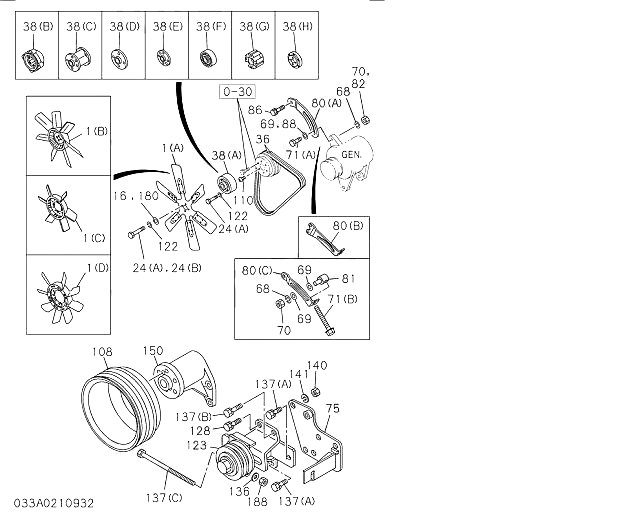

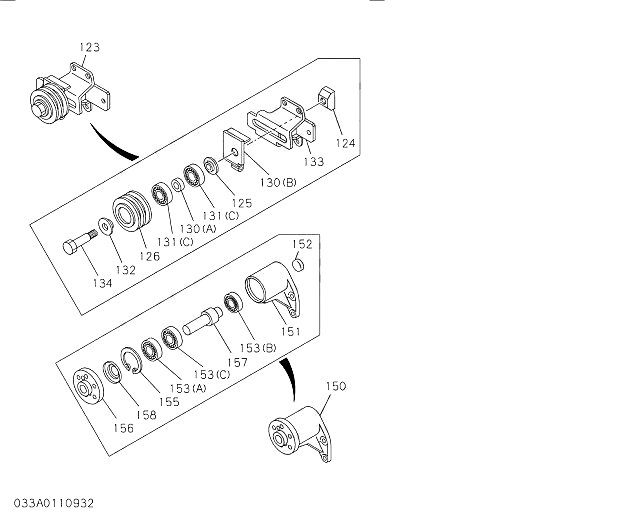

033 fan and fan belt

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
1(B)11366014331FAN; COOLING198308 -
245014081806BOLT; FAN199004 - 199807
2411366014346BOLT; FAN199808 -
3090916050806WASHER; PL,ADAPTER198308 - 199807
3090916050816WASHER; PL,ADAPTER199808 -
3611367136111BELT; COOLING FAN198308 - 199310
3611367141611BELT; COOLING FAN199311 -
41(A)90918054701RING; SNAP198308 -
41(B)90918057201RING; SNAP198308 -
4690915051004WASHER; LK198308 - 199807
4690918057214WASHER; LK199808 -
515005122501BOLT; FAN DRIVE PULLEY198308 -
5211366602901SPACER; FAN DRIVE198308 -
80(C)11367413501PLATE; ADJ198308 - 199501C
80(C)11367424701PLATE; ADJ199502 -
8111367416001PIECE; SLIDING198412 -
8299911041201NUT; ADJ PLATE198308 - 199607
8289433174201NUT; ADJ PLATE199608 -
8411366602601SPACER198308 - 199807
8499911041211SPACER199808 -
86(B)10900911411BOLT; ADJ198308 -
8890916071201WASHER; PL,ADJ PLATE198308 -
9490915051201WASHER; LK,ADJ PLATE198308 -
965005124501BOLT; ADJ PLATE198308 - 199510
9699911041221BOLT; ADJ PLATE199511 -
10811366025711CENTER; COOLING FAN198308 - 199505C
10811366029001CENTER; COOLING FAN199506 -
11211366307211PULLEY; FAN CENTER198308 -
11511366105001BODY; FAN CENTER198308 -
12190911041004NUT; FAN CENTER198308 - 199807
12199911041234NUT; FAN CENTER199808 -
12290915050806WASHER; LK,FAN198308 - 199807
12299911041246WASHER; LK,FAN199808 -
12311366025601PULLEY ASM; CENTER198308 - 199505C
12311366029121PULLEY ASM; CENTER199506 - 200003
12311366035001PULLEY ASM; CENTER200004 -
12590916461601WASHER198308 -
12611366307021PULLEY; IDLE198308 - 199807
12699911041251PULLEY; IDLE199808 -
13011366602511SPACER; IDLE PULLEY BRG198308 - 199807
13099911041261SPACER; IDLE PULLEY BRG199808 -
131(A)50980005202BEARING; BALL,FAN PULLEY198308 - 199505C
131(A)10980026202BEARING; BALL,FAN PULLEY199506 -
131(B)10980024302BEARING; BALL,FAN PULLEY198308 - 199505
131(B)10980026402BEARING; BALL,FAN PULLEY199506 -
131(C)90000620701BEARING; BALL,FAN PULLEY198308 - 199505
131(C)10980026501BEARING; BALL,FAN PULLEY199506 -
132(A)11366401001COVER; DUST198308 -
132(B)11366401701COVER; DUST198308 -
132(C)11366401201COVER; DUST198308 -
132(D)11366401101COVER; DUST198308 -
13311366802421BRACKET; IDLE PULLEY198308 - 200003
13311366805401BRACKET; IDLE PULLEY200004 -
13411366503111SPINDLE; IDLE PULLEY198308 -
13690916051001WASHER; TENSION198308 -
137(A)10900053201BOLT; TENSION198308 - 199807
137(A)5004100001BOLT; TENSION199808 - 199902
137(A)2080100001BOLT; TENSION199903 -
137(B)89709062001BOLT; TENSION198308 - 199807
137(B)99911041271BOLT; TENSION199808 -
140(A)99911041282NUT; IDLE PULLEY198308 - 199807
140(A)99911041292NUT; IDLE PULLEY199808 -
140(B)90911040801NUT; IDLE PULLEY198308 - 199807
140(B)99911041301NUT; IDLE PULLEY199808 -
141(A)99911041312WASHER; LK,IDLE PULLEY198308 - 199807
141(A)99911041322WASHER; LK,IDLE PULLEY199808 -
141(B)99911041331WASHER; LK,IDLE PULLEY198308 - 199807
141(B)99911041341WASHER; LK,IDLE PULLEY199808 -
18611367127201BELT; WATER PUMP TO GEN198308 -
21699911041601NUT; PULLEY198308 - 199807
21699911041611NUT; PULLEY199808 -
