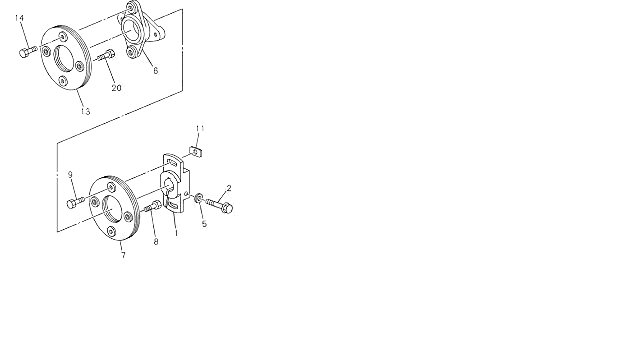

087 coupling injection pump

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
1(C)11578101701COUPLING; INJ PUMP DRIVE198308 -
211578902001BOLT; COUPLING FIX,INJ PUMP198308 -
5(C)11578902101WASHER; COUPLING FIX,INJ PUMP198308 -
6(B)11578918501COUPLING; CROSS,INJ PUMP DRIVE198308 -
7(B)11578907701PLATE; COUPLING,COUPLING SIDE198308 -
811578906002BOLT; PLATE TO CROSS COUPLING198308 -
911578902902BOLT; PLATE TO COUPLING,INJ PUMP198308 -
1011578907302NUT; PLATE TO COUPLING,INJ PUMP198308 -
11(C)11578909502WASHER; PLATE TO COUPLING,INJ PUMP198308 -
13(B)11578918511PLATE; COUPLING,TIMER SIDE,INJ PUMP198308 -
1411578918522BOLT; PLATE TO CROSS COUPLING,TIMER SIDE198308 -
2011578913302BOLT; COUPLING TO INJ PUMP198308 -
36(B)11121917401COVER; COUPLING199402 - 199510C
36(C)11121917801COVER; COUPLING199511 - 199807
36(C)11121918901COVER; COUPLING199808 -
385005102001BOLT; COVER, COUPLING198308 - 199510
3811578918531BOLT; COVER, COUPLING199511 -
382808086002BOLT; COVER, COUPLING199511 -
382818107001BOLT; COVER, COUPLING199511 - 199807
382818601101BOLT; COVER, COUPLING199808 -
382808087001BOLT; COVER, COUPLING199511 - 199807
3811578918541BOLT; COVER, COUPLING199808 -
382808581101BOLT; COVER, COUPLING199808 -
