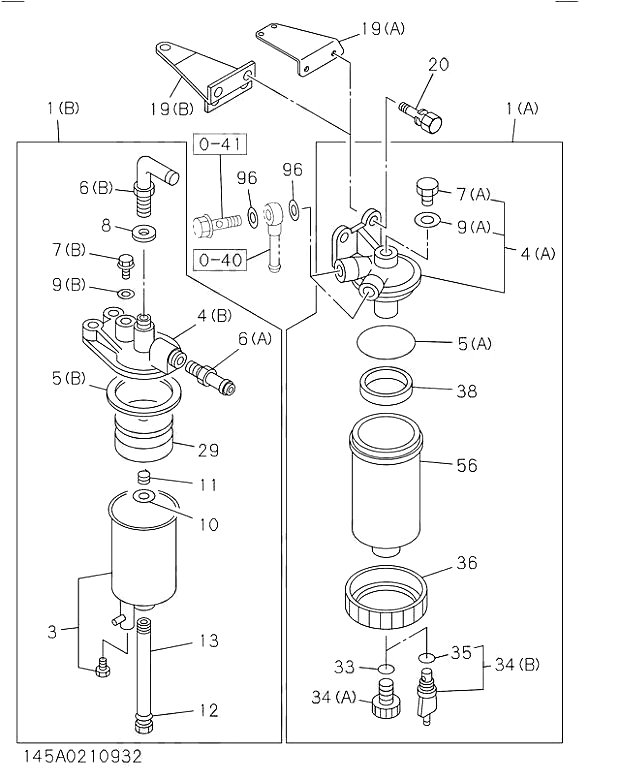

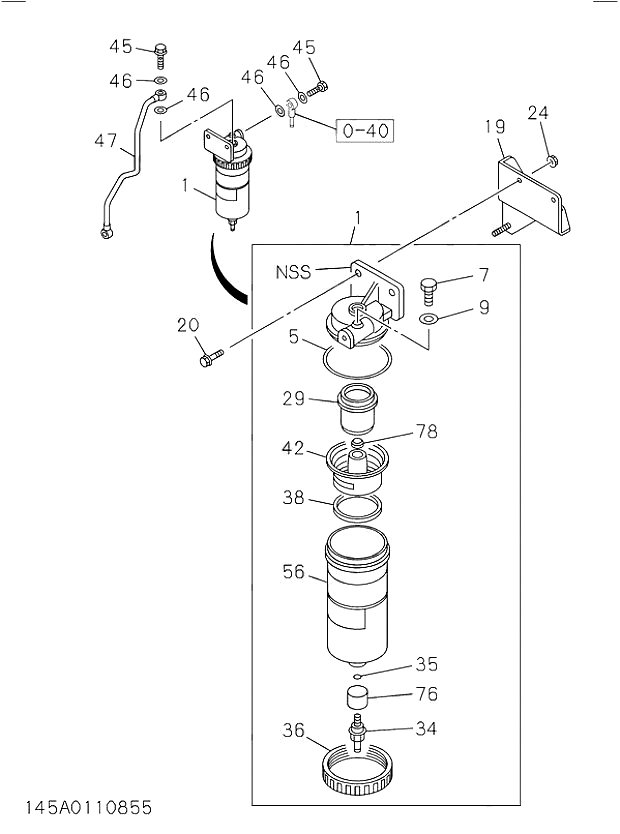

145 water sedimenter fuel

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
1(B)11320073811SEDIMENTER; FUEL198308 - 199605C
1(B)11320096001SEDIMENTER; FUEL199506 -
3(B)11321116201BODY ASM; SEDIMENTER198308 - 199605
3(B)11321125501BODY ASM; SEDIMENTER199606 -
4(B)11321213911COVER; UPR,SEDIMENTER ASM198308 -
5(B)10962347401GASKET; UPR COVER,SEDIMENTER198308 - 199605
5(B)10962361001GASKET; UPR COVER,SEDIMENTER199606 -
710960407701PLUG; DRAIN,SEDIMENTER198308 -
910963011801GASKET; DRAIN PLUG & CONNECTOR198308 -
1911975511201BRACKET; FUEL SEDIMENTER198308 -
205014103002BOLT; BRKT TO SEDIMENTER199004 -
2290911041005NUT; BRKT TO FILTER198308 -
2590915051005WASHER; LK,BRKT TO FRAME198308 -
29(B)11321921201SCREEN ASM; SEDIMENTER198308 -
34(A)11321921101PLUG; DRAIN,FUEL FILTER198308 -
3510962347301GASKET; DRAIN PLUG198308 -
3611321920811RING; BODY TO CASE198308 -
3811321921001FLOAT; SEDIMENTER198308 -
4211321920901PLATE; BAFFLE198308 -
4610963008504GASKET; FUEL PIPE198504 -
4711541454101PIPE; FUEL,SEDIMENTER TO PUMP198802 - 199704A
4711541581601PIPE; FUEL,SEDIMENTER TO PUMP199705 -
7611321921301CUP; DRAIN198308 -
7810933313301GASKET; BAFFLE PLATE198308 -
