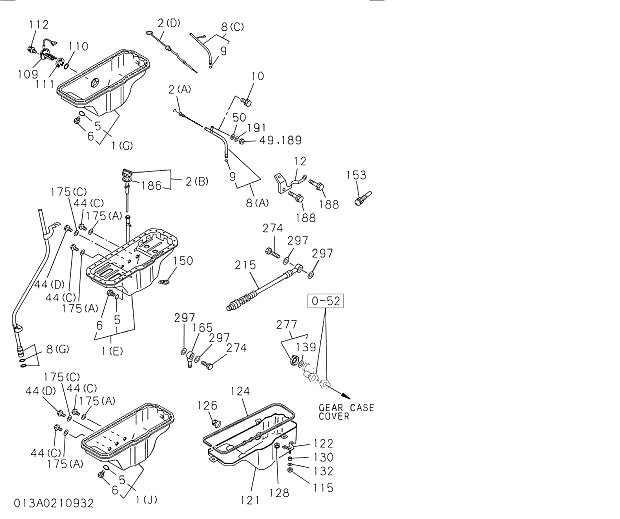

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1(G) | 1113615221 | 1 | PAN ASM; OIL | 199406 - | |
2(B) | 1117603541 | 1 | GAUGE; OIL LEVEL | 198308 - | |
3 | 1096230580 | 1 | GASKET; DRAIN PLUG | 198308 - | |
6 | 1096040220 | 1 | PLUG; OIL DRAIN | 198308 - | |
8(B) | 1117664350 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 198308 - | |
9 | 5096230020 | 2 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 198308 - | |
10 | 0500408160 | 1 | BOLT; GUIDE TUBE | 199004 - | |
13 | 9091605080 | 1 | WASHER; PL,GUIDE TUBE,OIL LEVEL GAUGE | 198308 - | |
16 | 1113670980 | 1 | GASKET; OIL PAN TO C/BL | 199604 - | |
22 | 9091506100 | 11 | WASHER; LK,OIL PAN | 198308 - | |
23 | 0500510350 | 27 | BOLT; OIL PAN | 198308 - | |
23 | 0168060000 | 1 | BOLT; OIL PAN | 199004 - | |
23 | 0168060650 | 4 | BOLT; OIL PAN | 199004 - | |
23 | 9016660900 | 8 | BOLT; OIL PAN | 198308 - | |
47(C) | 5097070310 | 1 | CLIP; HOSE,AIR BREATHER | 199304 - | |
58(A) | 1117691630 | 1 | STAY; GUIDE TUBE | 198308 - | |
109 | 8971312230 | 1 | SWITCH; OIL LEVEL | 199511 - | |
110 | 1096233550 | 1 | GASKET; SW,OIL LEVEL | 198308 - | |
111 | 5113690720 | 1 | SPACER; SW,OIL LEVEL | 198308 - | |
112 | 0501406280 | 3 | BOLT; SW,OIL LEVEL | 199004 - | |
151 | 9113692890 | 1 | CLIP; WATER DRAIN | 198308 - | |
226(B) | 1113491740 | 1 | STAY; HSG TO OIL PAN | 198308 - | |
226(D) | 1113491750 | 1 | STAY; HSG TO OIL PAN | 198308 - | |
241 | 1090200081 | 2 | BOLT; STAY TO OIL PAN | 198308 - | |
248 | 9091505140 | 2 | WASHER; LK,STAY TO OIL PAN | 198308 - | |
