Двигатели-6rb1-tqa02-015 crankshaft piston and flywheel

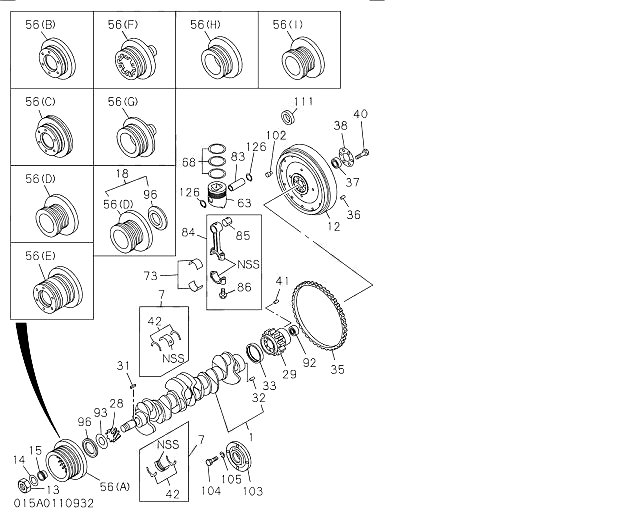

015 crankshaft piston and flywheel

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
111231049721CRANKSHAFT198901 -
711151006011METAL KIT; CRANKSHAFT,STANDARD198606 -
12(A)11233113231FLYWHEEL198906 -
1391237803901NUT; STARTING HANDLE198308 -
1490985143101WASHER; PULLEY DAMPER198308 -
1591237906101BUSHING; TAPER,CR/SHF PULLEY198308 -
1699206123006BOLT; PULLEY TO CENTER198308 -
18(C)11237142401PULLEY; CR/SHF198308 - 199807
18(C)99206123011PULLEY; CR/SHF199808 -
20(B)11237518901DAMPER; CR/SHF198308 -
2310950303316WASHER; DAMPER198308 -
2490236102206BOLT; DAMPER198308 -
2611237131301PULLEY; CENTER199004 -
2891252104521GEAR; CR/SHF198308 -
3091236102421COLLAR; THRUST198308 -
3190986701201KEY; FEATHER,CR/SHF198308 -
3290815122001PIN; FLYWHEEL198308 -
3311231901001RING; WEAR,CR/SHF198308 -
3511233301301GEAR; RING198603 -
3891233602511WASHER; FLYWHEEL198308 -
4010907001718BOLT; FLYWHEEL198308 -
4211151504002WASHER; THRUST,CR/SHF198606 -
5790815040801PIN; PULLEY198308 -
6311211170806PISTON198308 -
6811212111206RING SET; PISTON,STANDARD198909 -
7311227104806METAL SET; CONN ROD,STANDARD198607 -
7411227304806METAL SET; CONN ROD,U/S=0.25198308 -
7511227404806METAL SET; CONN ROD,U/S=0.50198308 -
8311221101816PIN; PISTON198308 -
8411223010816ROD ASM; CONN198308 -
8511225102506BUSHING; CONNROD198308 -
86112235026124BOLT; CONNROD198308 -
87909878610112PIN; CONNROD BIG END198308 -
88909840316024NUT; CONNROD198308 -
9611237902001THROWER; DUST,CR/SHF198308 -
126109587075012RING; SNAP,PISTON PIN198308 -
13710950311106WASHER; LK,CR/SHF PULLEY198308 -
