Двигатели-6rb1-tqa02-020 timing gear case and flywheel housing

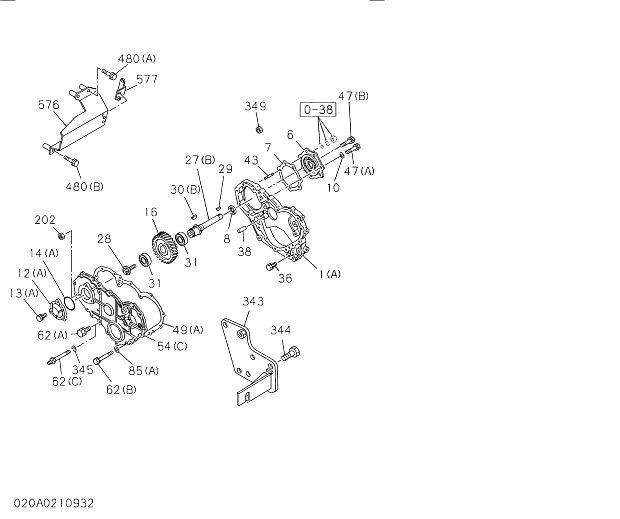

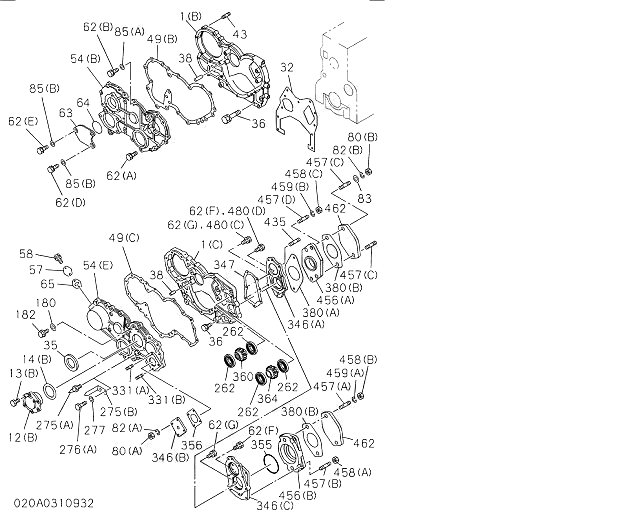

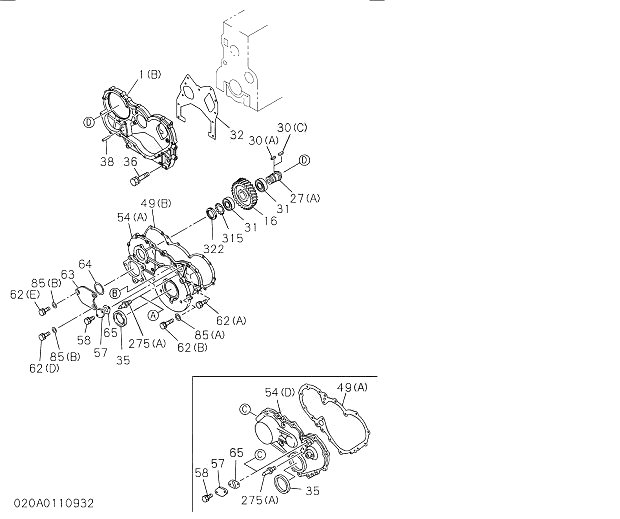

020 timing gear case and flywheel housing

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
111131103401CASE; TIMING GEAR198604 -
2(A)11134147031HOUSING; FLYWHEEL198308 - 200010
2(A)11134147041HOUSING; FLYWHEEL200011 -
10909160508011WASHER; PL,BRG COVER198308 - 199807
10909160508111WASHER; PL,BRG COVER199808 -
1211132501902COVER; BRG,GEAR CASE,FRT199408 -
1611252401311GEAR; INJ PUMP DRIVE198308 -
1910904403114BOLT; BRG CASE198308 -
2211253201111SHAFT; DRIVE,INJ PUMP199304 -
23(A)10980011801BEARING; DRIVE SHAFT198308 -
23(B)10980011701BEARING; DRIVE SHAFT198308 -
2590918057201RING; SNAP,BEARING198308 -
2611132900801ADAPTER198308 -
2990805562201KEY; COUPLING198308 -
3090805551901KEY; DRIVE GEAR198308 -
3211131201601GASKET; GEAR CASE TO C/BL199502 -
3510962544201SEAL; OIL,CRANKSHAFT FRT198812 -
3605005123006BOLT; GEAR CASE199004 -
3601680626503BOLT; GEAR CASE199004 -
3690236102801BOLT; GEAR CASE198308 -
3601081083501BOLT; GEAR CASE199007 -
3790985195001WASHER; PL,GEAR CASE198308 -
3710950318311WASHER; PL,GEAR CASE198308 -
4099911041203NUT; GEAR CASE198308 -
4190915051206WASHER; LK,GEAR CASE198308 -
4291131906522DOWEL; GEAR CASE COVER198308 -
43(A)10930204812STUD; BRG COVER198308 - 199807
43(A)99911041212STUD; BRG COVER199808 -
43(A)10930216012STUD; BRG COVER198308 - 199807
43(A)99911041222STUD; BRG COVER199808 -
43(B)109300050011STUD; BRG COVER198308 - 199807
43(B)999110412311STUD; BRG COVER199808 -
44909110408011NUT; BRG COVER198308 - 199807
44999110412411NUT; BRG COVER199808 -
4911132205101GASKET; GEAR CASE TO COVER199604 -
5090441103004STUD198308 - 199807
5099911041254STUD199808 -
5105015103508BOLT; GEAR CASE COVER199004 -
5105015104501BOLT; GEAR CASE COVER199004 -
5105015102503BOLT; GEAR CASE COVER199004 -
5102380103502BOLT; GEAR CASE COVER199004 -
5411132112811COVER; GEAR CASE198308 -
8090911041002NUT; COVER198308 - 199807
8099911041262NUT; COVER199808 -
8290915051002WASHER; LK,COVER198308 - 199807
8299911041272WASHER; LK,COVER199808 -
8390916051004WASHER; PL,COVER198401 -
94(A)99911152401NUT; GEAR198308 -
9590915052401WASHER; LK,GEAR198308 -
9690916052401WASHER; PL,GEAR198308 -
11518151046511SENSOR; REVOLUTION,ENG SPD198308 -
17510962544101SEAL; OIL,CR/SHF,RR198808 -
20490915051401WASHER; LK,HSG198903 -
20599911041401NUT; HSG198308 -
20691134904901COVER; STARTER CHECK HOLE198308 -
211109033002010BOLT; HSG198903 -
21110903300302BOLT; HSG198903 -
21105014084006BOLT; HSG199004 -
213(A)91134201901POINTER; FLYWHEEL HSG198308 -
22490441143503STUD; STARTER198308 -
22911134907301COVER; TIMING CHECK HOLE198402 - 199301A
22911134912201COVER; TIMING CHECK HOLE199302 -
23190190081202BOLT; COVER198402 - 199301A
23105004081202BOLT; COVER199302 -
27511132703801POINTER; TIMING CHECK HOLE198308 - 199807
27599911152411POINTER; TIMING CHECK HOLE199808 -
336909150508011WASHER; LK,BRG COVER198308 - 199807
336999111524211WASHER; LK,BRG COVER199808 -
40411253001111CASE ASM; BRG,INJ PUMP198308 -
40510962513401SEAL; OIL,BRG CASE198308 -
40810962346801GASKET; BRG CASE TO GEAR CASE198812 -
41010962346908GASKET; BRG CASE198308 -
