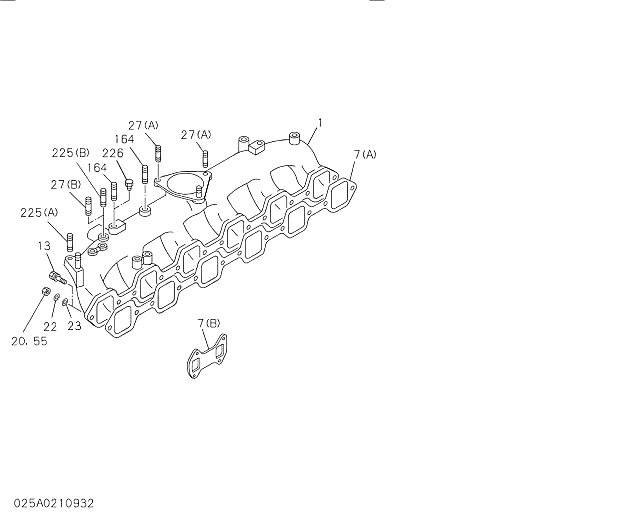

025 inlet manifold

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
3(B)11411022502DUCT; INT198308 -
7(B)11411508202GASKET; INL MANIF TO HD199604 -
8(C)11411708702GASKET; INT DUCT199604 -
1011431704001GASKET; INL PIPE TO MANIF199604 -
22909150508024WASHER; LK,INL MANIF198308 -
23909164608022WASHER; PL,INL MANIF199206 -
32(B)90411083006STUD; INL PIPE198308 -
32(C)99401052504STUD; INL PIPE198308 -
41(C)11413416911DUCT; INT COVER198308 -
47(A)90441101802STUD; BRKT,POWER STEERING198308 -
47(B)90441101601STUD; BRKT,POWER STEERING198308 -
4999401052516STUD; CABLE198308 -
50(J)11413412721PIPE; INL198308 -
5110965007411NIPPLE; BOOST PIPE198308 -
54(B)99401052526WASHER; LK,INL PIPE198308 -
6790911040806NUT; INL DUCT198308 -
6890916050806WASHER; PL,INL DUCT198308 -
7099401052534STUD; WATER PIPE198308 -
7190411061602STUD; FUEL PIPE198308 -
7805015103004BOLT; INL PIPE TO INL MANIF198308 -
323(A)901065850012BOLT; DUCT198308 -
323(B)90980127303BOLT; DUCT198308 -
323(B)90980127609BOLT; DUCT198308 -
353(C)11412112201PIPE; AIR,BOOST198308 -
354(B)90952463201CLIP; AIR PIPE198308 -
354(C)90952700601CLIP; AIR PIPE198308 -
355(B)02808061202BOLT; CLIP,AIR PIPE198308 -
56205014082802BOLT; INL DUCT199004 -
