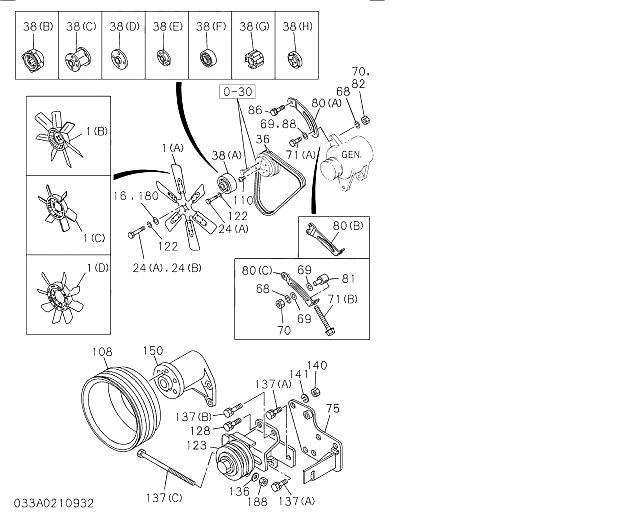

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1(A) | 1136602970 | 1 | FAN; COOLING | 198308 - | ||
| 36 | 1136714520 | 1 | BELT; COOLING FAN | 198308 - | ||
| 41(A) | 9091805470 | 1 | RING; SNAP | 198308 - | ||
| 41(B) | 9091805720 | 1 | RING; SNAP | 198308 - | ||
| 46 | 9091505100 | 4 | WASHER; LK | 198308 - 199807 | ||
| 46 | 9091805721 | 4 | WASHER; LK | 199808 - | ||
| 51 | 0287812300 | 1 | BOLT; FAN DRIVE PULLEY | 198308 - | ||
| 52 | 1136660290 | 1 | SPACER; FAN DRIVE | 198308 - | ||
| 80(C) | 1136742470 | 1 | PLATE; ADJ | 199502 - | ||
| 81 | 1136741600 | 1 | PIECE; SLIDING | 198412 - | ||
| 82 | 8943317420 | 1 | NUT; ADJ PLATE | 199608 - | ||
| 84 | 1136660260 | 1 | SPACER | 198308 - 199807 | ||
| 84 | 9091805722 | 1 | SPACER | 199808 - | ||
| 86(B) | 1090091141 | 1 | BOLT; ADJ | 198308 - | ||
| 88 | 9091607120 | 1 | WASHER; PL,ADJ PLATE | 198308 - | ||
| 96 | 0500512250 | 1 | BOLT; ADJ PLATE | 199511 - | ||

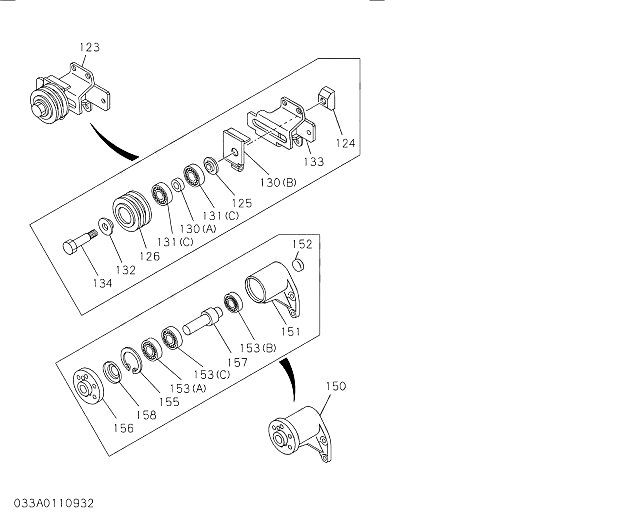

| 108 | 1136603020 | 1 | CENTER; COOLING FAN | 198308 - | ||
| 112 | 1136630980 | 1 | PULLEY; FAN CENTER | 198308 - | ||
| 115 | 1136610500 | 1 | BODY; FAN CENTER | 198308 - | ||
| 121 | 9091104100 | 4 | NUT; FAN CENTER | 198308 - 199807 | ||
| 121 | 9091805723 | 4 | NUT; FAN CENTER | 199808 - | ||
| 123 | 1136602912 | 1 | PULLEY ASM; CENTER | 199506 - 200003 | ||
| 123 | 1136603500 | 1 | PULLEY ASM; CENTER | 200004 - | ||
| 125 | 9091646160 | 1 | WASHER | 198308 - | ||
| 126 | 1136630702 | 1 | PULLEY; IDLE | 198308 - 199807 | ||
| 126 | 9091805724 | 1 | PULLEY; IDLE | 199808 - | ||
| 130 | 1136660251 | 1 | SPACER; IDLE PULLEY BRG | 198308 - 199807 | ||
| 130 | 9091805725 | 1 | SPACER; IDLE PULLEY BRG | 199808 - | ||
| 131(A) | 1098002620 | 2 | BEARING; BALL,FAN PULLEY | 199506 - | ||
| 131(B) | 1098002640 | 2 | BEARING; BALL,FAN PULLEY | 199506 - | ||
| 131(C) | 1098002650 | 1 | BEARING; BALL,FAN PULLEY | 199506 - | ||
| 132(A) | 1136640100 | 1 | COVER; DUST | 198308 - | ||
| 132(B) | 1136640170 | 1 | COVER; DUST | 198308 - | ||
| 132(C) | 1136640120 | 1 | COVER; DUST | 198308 - | ||
| 132(D) | 1136640110 | 1 | COVER; DUST | 198308 - | ||
| 133 | 1136680242 | 1 | BRACKET; IDLE PULLEY | 198308 - 200003 | ||
| 133 | 1136680540 | 1 | BRACKET; IDLE PULLEY | 200004 - | ||
| 134 | 1136650311 | 1 | SPINDLE; IDLE PULLEY | 198308 - | ||
| 136 | 9091605100 | 1 | WASHER; TENSION | 198308 - | ||
| 137(A) | 1090005320 | 1 | BOLT; TENSION | 198308 - 199807 | ||
| 137(A) | 0500410000 | 1 | BOLT; TENSION | 199808 - 199902 | ||
| 137(A) | 0208010000 | 1 | BOLT; TENSION | 199903 - | ||
| 137(B) | 8970906200 | 1 | BOLT; TENSION | 198308 - 199807 | ||
| 137(B) | 9091805726 | 1 | BOLT; TENSION | 199808 - | ||
| 140(A) | 9091805727 | 2 | NUT; IDLE PULLEY | 198308 - 199807 | ||
| 140(A) | 9091805728 | 2 | NUT; IDLE PULLEY | 199808 - | ||
| 140(B) | 9091104080 | 1 | NUT; IDLE PULLEY | 198308 - 199807 | ||
| 140(B) | 9091805729 | 1 | NUT; IDLE PULLEY | 199808 - | ||
| 141(A) | 9091805730 | 2 | WASHER; LK,IDLE PULLEY | 198308 - 199807 | ||
| 141(A) | 9091805731 | 2 | WASHER; LK,IDLE PULLEY | 199808 - | ||
| 141(B) | 9091505080 | 1 | WASHER; LK,IDLE PULLEY | 198308 - 199807 | ||
| 141(B) | 9091805732 | 1 | WASHER; LK,IDLE PULLEY | 199808 - | ||
| 186 | 1136712370 | 1 | BELT; WATER PUMP TO GEN | 198308 - 199807 | ||
| 186 | 1136714670 | 1 | BELT; WATER PUMP TO GEN | 199808 - | ||
| 216 | 9991104160 | 1 | NUT; PULLEY | 198308 - 199807 | ||
| 216 | 9991104161 | 1 | NUT; PULLEY | 199808 - |
