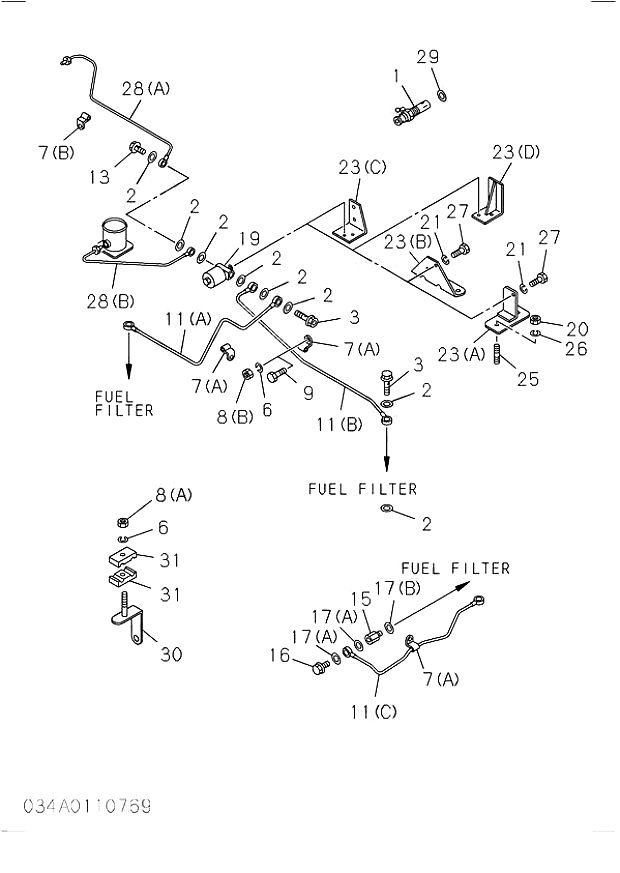

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1 | 1814300230 | 2 | HEATER; INT | 198308 - | |
| 2 | 1096300830 | 4 | GASKET; FUEL PIPE FILTER TO VLV | 198308 - | |
| 2 | 1096300820 | 3 | GASKET; FUEL PIPE FILTER TO VLV | 198308 - | |
| 3 | 1096750760 | 2 | BOLT; EYE FUEL PIPE | 198308 - | |
| 6 | 9091505100 | 2 | WASHER; LK,CLIP,FUEL PIPE | 198308 - | |
| 6 | 9091505050 | 5 | WASHER; LK,CLIP,FUEL PIPE | 198308 - | |
| 7(A) | 1097005630 | 2 | CLIP; FUEL PIPE | 198308 - | |
| 7(A) | 9095250350 | 1 | CLIP; FUEL PIPE | 198308 - | |
| 8(A) | 9991104050 | 4 | NUT; CLIP FUEL PIPE | 198308 - | |
| 8(B) | 9091104100 | 2 | NUT; CLIP FUEL PIPE | 198308 - | |
| 11(B) | 1154145040 | 1 | PIPE ASM; FUEL FILTER TO VLV | 198308 - | |
| 13 | 1096750381 | 1 | BOLT; EYE | 198308 - | |
| 19 | 1825633441 | 1 | VALVE; MAG INT HTR | 199203 - | |
| 20 | 9991104051 | 2 | NUT; BRKT | 198308 - | |
| 21 | 9991104052 | 2 | WASHER; LK,VLV | 198308 - | |
| 23(D) | 1825690880 | 1 | BRACKET; MAG VLV INT HTR | 198308 - | |
| 26 | 9991104053 | 2 | WASHER; LK,BRKT | 198308 - | |
| 27 | 0208005100 | 2 | BOLT; VLV | 199004 - | |
| 28(A) | 1154135511 | 1 | PIPE ASM; FUEL VLV TO INT HTR | 198308 - | |
| 28(B) | 1154135501 | 1 | PIPE ASM; FUEL VLV TO INT HTR | 198308 - | |
| 29 | 9095714220 | 2 | GASKET; INT HTR | 198308 - | |
