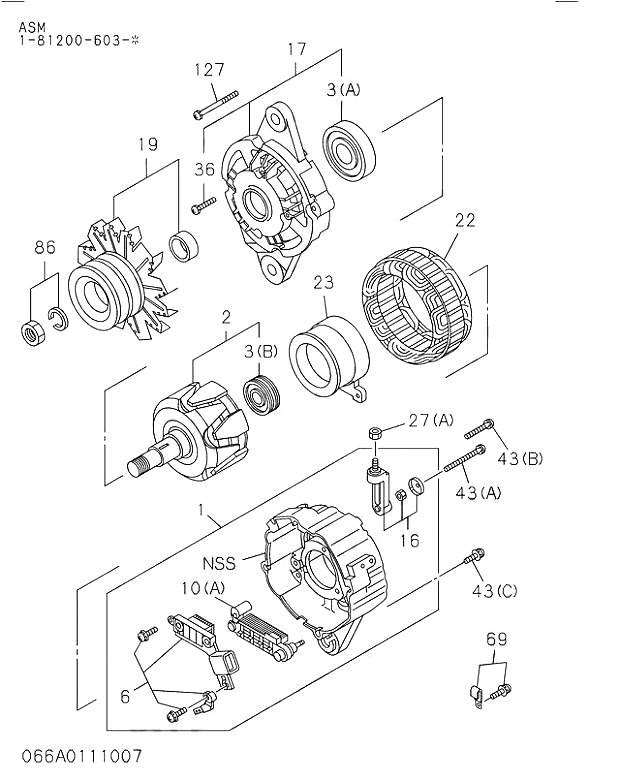

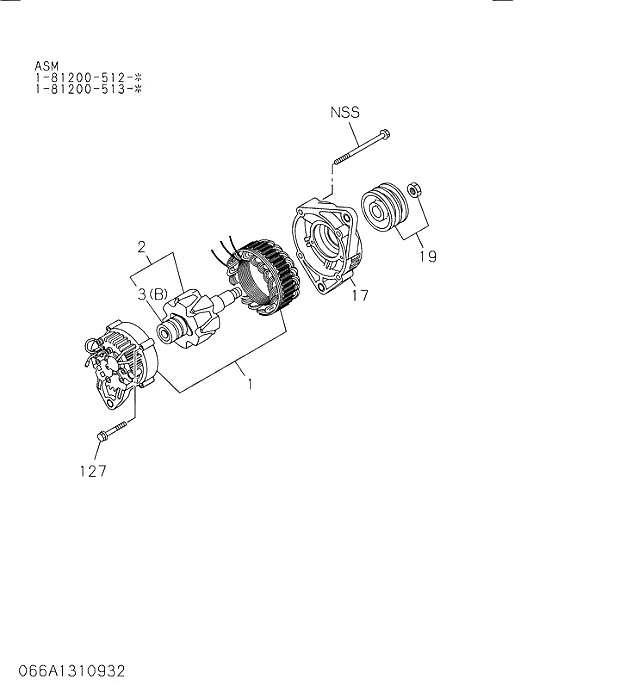

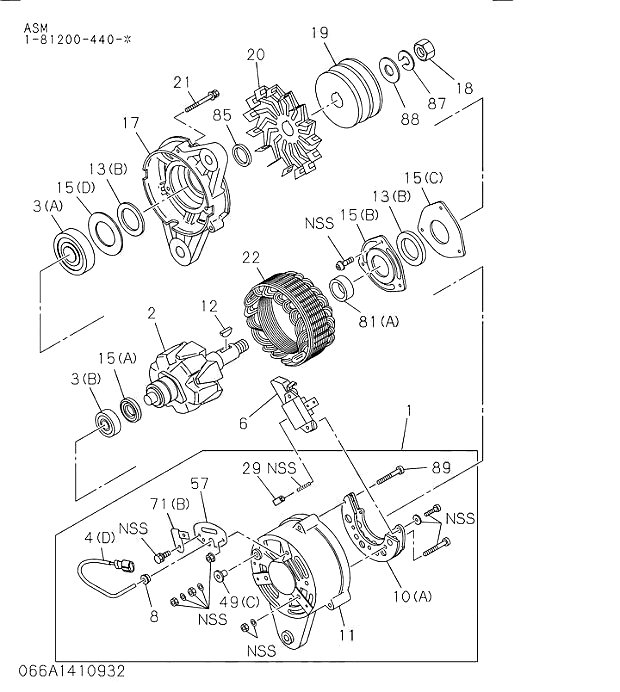

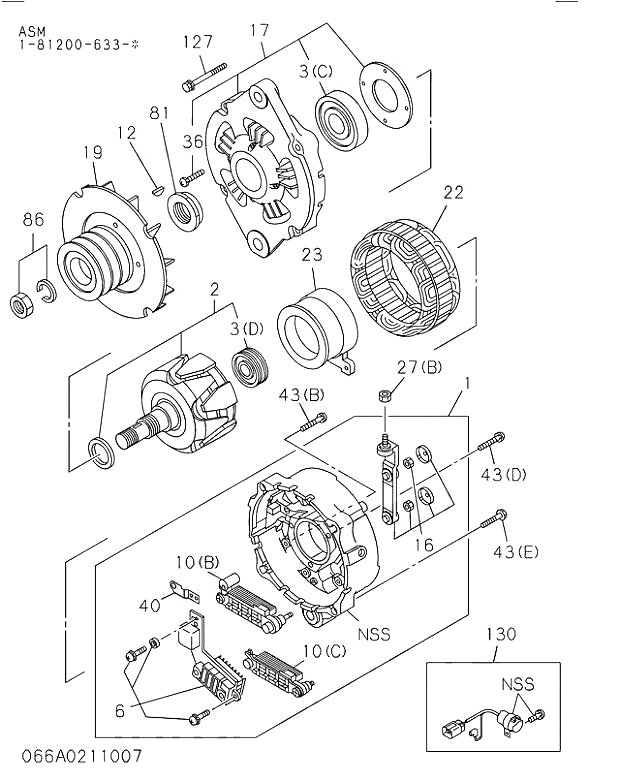

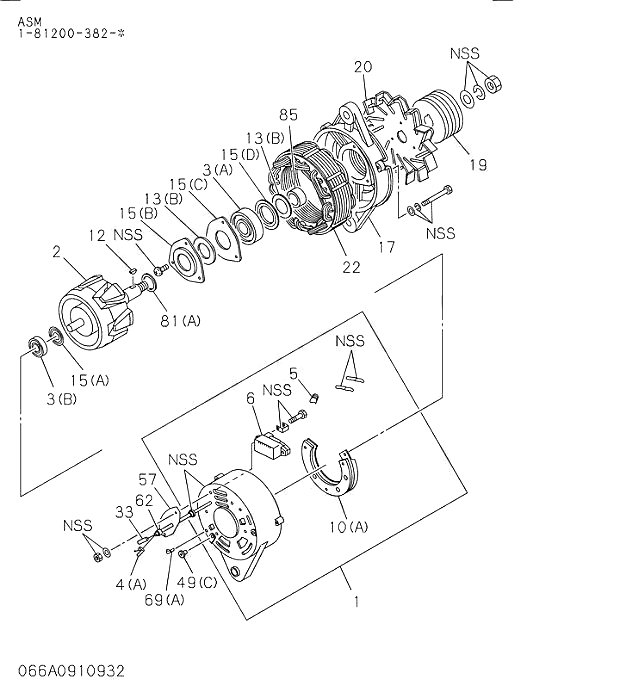

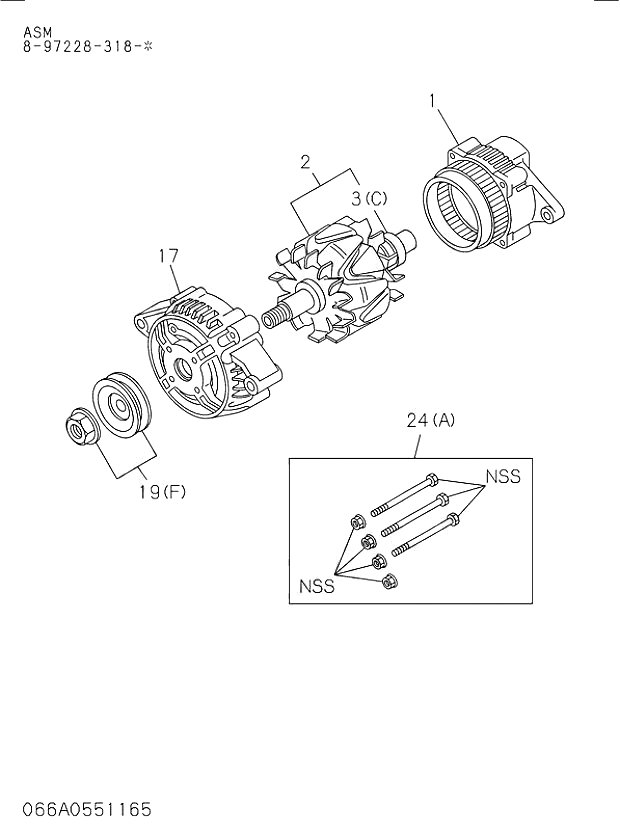

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001 | 1812221290 | 1 | COVER ASM; RR,GEN | 199905 - | |
| 001 | 1812143230 | 1 | COVER ASM; RR,GEN | 198308 - | |
| 002 | 1812211020 | 1 | ROTOR; GEN | 199905 - | |
| 002 | 1812210870 | 1 | ROTOR; GEN | 198308 - | |
| 003 | 1812297700 | 1 | BEARING; ROTOR,GEN | 199905 - | |
| 003 | 1812296450 | 1 | BEARING; ROTOR,GEN | 198308 - | |
| 003 | 1812297800 | 1 | BEARING; ROTOR,GEN | 198308 - | |
| 003 | 1812297690 | 1 | BEARING; ROTOR,GEN | 199905 - | |
| 003 | 1812293930 | 1 | BEARING; ROTOR,GEN | 198308 - | |
| 004 | 1812298380 | 1 | TERMINAL; BRUSH,GEN | 199905 - | |
| 006 | 1812600170 | 1 | REGULATOR ASM; VOLTAGE,GEN | 199905 - | |
| 006 | 1812600070 | 1 | REGULATOR ASM; VOLTAGE,GEN | 198308 - | |
| 010 | 1812191210 | 1 | RECTIFIER; GEN | 199905 - | |
| 010 | 1812191130 | 1 | RECTIFIER; GEN | 198308 - | |
| 011 | 1812142950 | 1 | COVER; RR,GEN | 198308 - | |
| 012 | 9822158670 | 1 | KEY; ROTOR,GEN | 198308 - | |
| 013 | 1812296440 | 2 | GASKET; ROTOR,GEN | 198308 - | |
| 014 | 1812296420 | 2 | COLLAR; STEEL | 198308 - | |
| 015 | 1812296430 | 1 | RETAINER; ROTOR,GEN | 198308 - | |
| 015 | 1812293760 | 1 | RETAINER; ROTOR,GEN | 198308 - | |
| 015 | 1812297790 | 1 | RETAINER; ROTOR,GEN | 198308 - | |
| 015 | 1812295260 | 1 | RETAINER; ROTOR,GEN | 198308 - | |
| 016 | 1812297710 | 1 | TERMINAL ASM; RECTIFIER,GEN | 199905 - | |
| 016 | 1812296830 | 1 | TERMINAL ASM; RECTIFIER,GEN | 198308 - | |
| 017 | 1812131010 | 1 | COVER ASM; FRT,GEN | 199905 - | |
| 017 | 1812130760 | 1 | COVER ASM; FRT,GEN | 198308 - | |
| 019 | 1812221000 | 1 | PULLEY; GEN | 198308 - | |
| 019 | 1812221550 | 1 | PULLEY; GEN | 199905 - | |
| 020 | 1812230160 | 1 | FAN; GEN | 198308 - | |
| 021 | 1812293820 | 3 | BOLT; THROUGH,GEN | 198308 - | |
| 022 | 1812111290 | 1 | STATOR; GEN | 199905 - | |
| 022 | 1812111060 | 1 | STATOR; GEN | 198308 - | |
| 023 | 1812120160 | 1 | COIL; ROTOR GEN | 199905 - | |
| 023 | 1812120110 | 1 | COIL; ROTOR GEN | 198308 - | |
| 025 | 1812296480 | 1 | BUSHING; INSULATION TERMINAL | 198308 - | |
| 025 | 1812296500 | 1 | BUSHING; INSULATION TERMINAL | 198308 - | |
| 027 | 1812297720 | 1 | NUT; RECTIFIER,GEN | 199905 - | |
| 036 | 1812297680 | 1 | SCREW; FRT COVER | 199905 - | |
| 043 | 1812297730 | 1 | SCREW; RR END COVER | 199905 - | |
| 043 | 1812297740 | 1 | SCREW; RR END COVER | 199905 - | |
| 043 | 1812298320 | 1 | SCREW; RR END COVER | 199905 - | |
| 045 | 1812296510 | 1 | WASHER; INSULATE,RR COVER,GEN | 198308 - | |
| 049 | 1812296490 | 1 | BUSHING; RECTIFIER,GEN | 198308 - | |
| 062 | 8970290590 | 1 | CLIP; TERMINAL,BRUSH,GEN | 198308 - | |
| 065 | 1841320080 | 1 | CONDENSER; GEN | 198308 - | |
| 069 | 9822158100 | 1 | CLIP; WIRE,GEN | 198308 - | |
| 069 | 1812298360 | 1 | CLIP; WIRE,GEN | 199905 - | |
| 081 | 1812297770 | 2 | SPACER; ROTOR,GEN | 198308 - | |
| 086 | 8971781340 | 1 | NUT SET; PULLEY,GEN | 199905 - | |
| 127 | 1812297670 | 1 | BOLT SET; GEN | 199905 - | |
