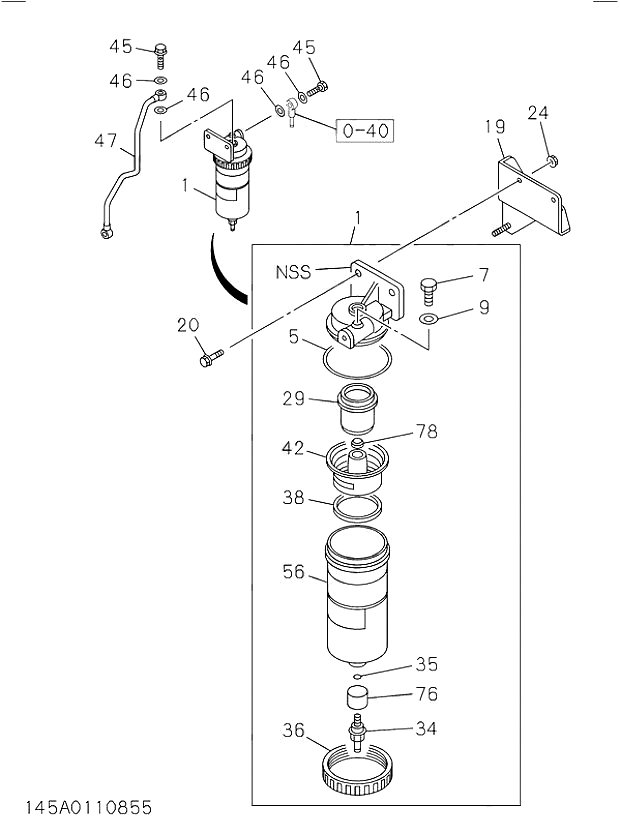

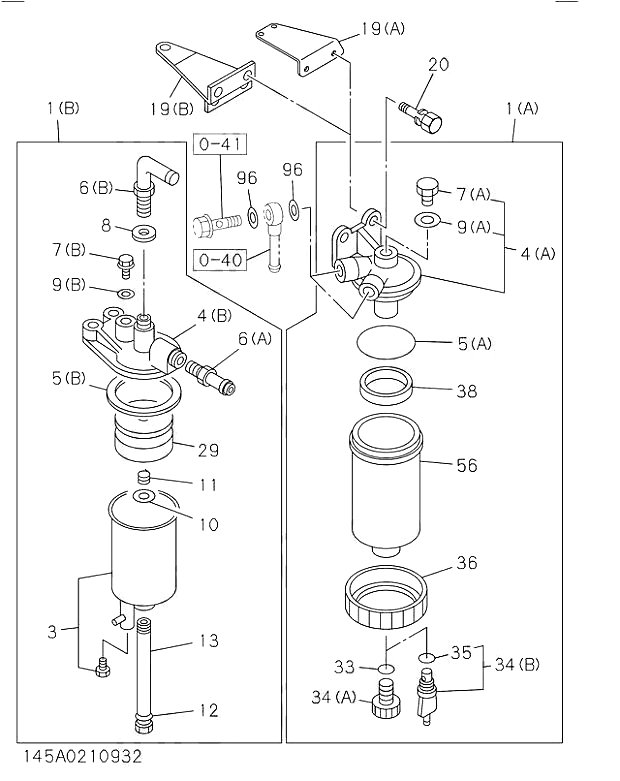

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1(B) | 1132009600 | 1 | SEDIMENTER; FUEL | 199506 - | |
| 3(B) | 1132112550 | 1 | BODY ASM; SEDIMENTER | 199606 - | |
| 4(B) | 1132121391 | 1 | COVER; UPR,SEDIMENTER ASM | 198308 - | |
| 5(B) | 1096236100 | 1 | GASKET; UPR COVER,SEDIMENTER | 199606 - | |
| 7 | 1096040770 | 1 | PLUG; DRAIN,SEDIMENTER | 198308 - | |
| 9 | 1096301180 | 1 | GASKET; DRAIN PLUG & CONNECTOR | 198308 - | |
| 19 | 1197551120 | 1 | BRACKET; FUEL SEDIMENTER | 198308 - | |
| 20 | 0501410300 | 2 | BOLT; BRKT TO SEDIMENTER | 199004 - | |
| 22 | 9091104100 | 5 | NUT; BRKT TO FILTER | 198308 - | |
| 25 | 9091505100 | 5 | WASHER; LK,BRKT TO FRAME | 198308 - | |
| 29(B) | 1132192120 | 1 | SCREEN ASM; SEDIMENTER | 198308 - | |
| 34(A) | 1132192110 | 1 | PLUG; DRAIN,FUEL FILTER | 198308 - | |
| 35 | 1096234730 | 1 | GASKET; DRAIN PLUG | 198308 - | |
| 36 | 1132192081 | 1 | RING; BODY TO CASE | 198308 - | |
| 38 | 1132192100 | 1 | FLOAT; SEDIMENTER | 198308 - | |
| 42 | 1132192090 | 1 | PLATE; BAFFLE | 198308 - | |
| 46 | 1096300850 | 4 | GASKET; FUEL PIPE | 198504 - | |
| 47 | 1154158160 | 1 | PIPE; FUEL,SEDIMENTER TO PUMP | 198308 - | |
| 76 | 1132192130 | 1 | CUP; DRAIN | 198308 - | |
| 78 | 1093331330 | 1 | GASKET; BAFFLE PLATE | 198308 - | |
