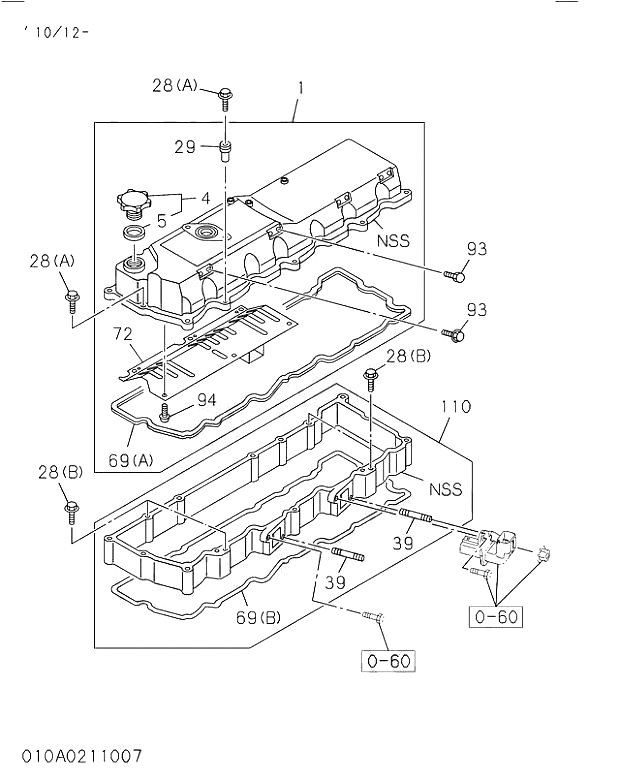

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
001(A) | 1111804411 | 1 | COVER; CYL HD | 200007-200012 | ||
001(B) | 1111714450 | 1 | COVER; CYL HD | 200007-200012 | ||
001(C) | 1111804640 | 1 | COVER; CYL HD | 200101- | ||
4 | 8943997230 | 1 | CAP; OIL FILLER | 200007- | ||
5 | 8943996890 | 1 | GASKET; OIL FILLER | 200007- | ||
28 | 286808350 | 20 | BOLT; HD COVER | 200007-200106 | A | |
28 | 280808350 | 20 | BOLT; HD COVER | 200107-200512 | A | |
28 | 280508350 | 20 | BOLT; HD COVER | 200601- | ||
29 | 8943920970 | 20 | RUBBER; MTG,HD COVER | 200007-200106 | A | |
29 | 8976018491 | 20 | RUBBER; MTG,HD COVER | 200107- | ||
69 | 1111730800 | 1 | GASKET; HD TO COVER | 200007-200106 | A | |
69 | 1111731102 | 1 | GASKET; HD TO COVER | 200107- | ||
72 | 1111791050 | 1 | PLATE; INNER HD COVER | 200007-200012 | ||
73 | 9091607080 | 20 | WASHER; PL,HD COVER | 200107-200605 | A | |
73 | 916107080 | 20 | WASHER; PL,HD COVER | 200606- | ||
76 | 9038006100 | 10 | SCREW; INNER PLATE | 200007-200012 |
