| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

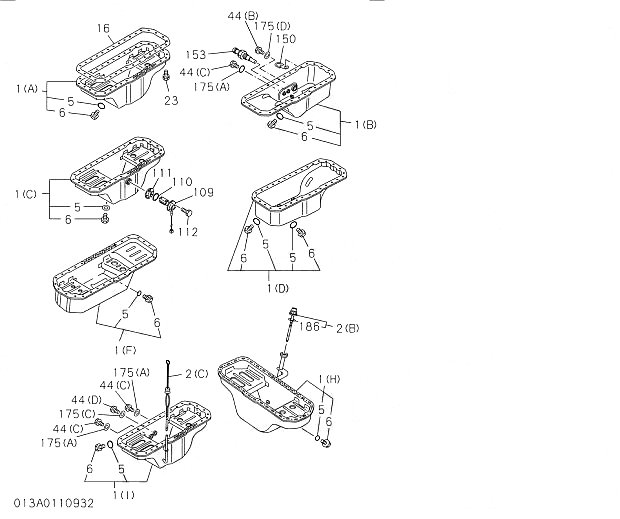

| 001(A) | 1113608850 | 1 | PAN ASM; OIL | 200007-200202 | C |
| 001(A) | 1113609020 | 1 | PAN ASM; OIL | 200203-200405 | C |
| 001(A) | 1113609180 | 1 | PAN ASM; OIL | 200406- | |
| 2 | 1117604220 | 1 | GAUGE; OIL LEVEL | 200007-200112 | A |
| 2 | 1117604410 | 1 | GAUGE; OIL LEVEL | 200201-200208 | C |
| 2 | 1117604430 | 1 | GAUGE; OIL LEVEL | 200209-200508 | C |
| 2 | 8980246010 | 1 | GAUGE; OIL LEVEL | 200509- | |
| 005(A) | 1096230570 | 1 | GASKET; PLUG,OIL DRAIN | 200007-200202 | |
| 005(B) | 9095714200 | 1 | GASKET; PLUG,OIL DRAIN | 200203-200405 | |
| 005(B) | 9095714240 | 1 | GASKET; PLUG,OIL DRAIN | 200406- | |
| 006(A) | 9096620120 | 1 | PLUG; OIL DRAIN | 200007-200202 | |
| 006(B) | 1096801010 | 1 | PLUG; OIL DRAIN | 200203-200405 | |
| 006(B) | 1096801040 | 1 | PLUG; OIL DRAIN | 200406- | |
| 8 | 1117665681 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 200007-200101 | |
| 8 | 1117665950 | 1 | TUBE; GUIDE,OIL LEVEL GAUGE | 200102- | |
| 9 | 1096234960 | 1 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 200007- | |
| 10 | 280810200 | 2 | BOLT; GUIDE TUBE | 200007-200512 | A |
| 10 | 280510200 | 2 | BOLT; GUIDE TUBE | 200601- | |
| 12 | 1117665460 | 1 | BRACKET; TUBE,OIL LEVEL GAUGE | 200007- | |
| 016(A) | 1113671210 | 1 | GASKET; OIL PAN TO C/BL | 200007-200112 | |
| 016(A) | 1113671310 | 1 | GASKET; OIL PAN TO C/BL | 200201-200409 | |
| 016(B) | 1113671110 | 1 | GASKET; OIL PAN TO C/BL | 200007-200303 | |
| 016(B) | 1113671300 | 1 | GASKET; OIL PAN TO C/BL | 200304-200711 | |
| 17 | 8980630320 | 1 | GASKET; OIL PAN | 200712- | |
| 23 | 286808200 | 34 | BOLT; OIL PAN | 200007-200009 | A |
| 23 | 286808250 | 34 | BOLT; OIL PAN | 200010-200112 | A |
| 23 | 501408250 | 34 | BOLT; OIL PAN | 200201-200512 | A |
| 23 | 506408250 | 34 | BOLT; OIL PAN | 200601- | |
| 47 | 1113691150 | 1 | CLIP; HOSE,AIR BREATHER | 200007- | |
| 109 | 8971312230 | 1 | SWITCH; OIL LEVEL | 200007- | |
| 110 | 1096233550 | 1 | GASKET; SW,OIL LEVEL | 200007- | |
| 111 | 5113690720 | 1 | SPACER; SW,OIL LEVEL | 200007- | |
| 112 | 286806250 | 3 | BOLT; SW,OIL LEVEL | 200007-200008 | |
| 112 | 501406280 | 3 | BOLT; SW,OIL LEVEL | 200009-200906 | |
| 112 | 506406280 | 3 | BOLT; SW,OIL LEVEL | 200907- | |
| 130(A) | 1113615691 | 1 | SPACER; DIST,OIL PAN | 200007-200101 | C |
| 130(A) | 1113608982 | 1 | SPACER; DIST,OIL PAN | 200102-200711 | |
| 130(B) | 8980900130 | 1 | SPACER; DIST,OIL PAN | 200712- | |
| 188 | 287810250 | 2 | BOLT; BRKT,TUBE | 200007-200512 | A |
| 188 | 287510250 | 2 | BOLT; BRKT,TUBE | 200601- | |
| 199(A) | 281810500 | 4 | BOLT; SPACER | 200007-200512 | A |
| 199(A) | 281510500 | 4 | BOLT; SPACER | 200601- | |
| 199(B) | 287810350 | 32 | BOLT; SPACER | 200007-200009 | |
| 199(B) | 9096620121 | 28 | BOLT; SPACER | 200007-200512 | A |
| 199(B) | 287510350 | 28 | BOLT; SPACER | 200601-200702 | A |
| 199(B) | 281510350 | 28 | BOLT; SPACER | 200703- | |
