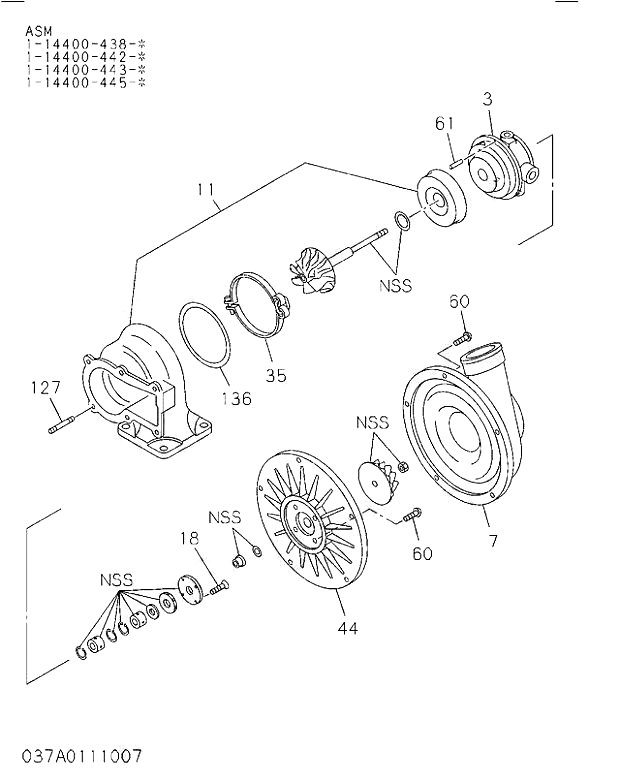

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 1144151280 | 1 | HOUSING; TURBINE,TURBOCHARGER | 200007- | |
2 | 1144510760 | 1 | IMPELLER; TURBOCHARGER | 200007- | |
3 | 1144110730 | 1 | HOUSING; BRG,TURBOCHARGER | 200007- | |
5 | 1144250170 | 1 | PROTECTOR; HEAT,TURBOCHARGER | 200007- | |
6 | 1144500560 | 1 | SHAFT; TURBINE,TURBOCHARGER | 200007- | |
7 | 1144141280 | 1 | HOUSING; BLOWER,TURBOCHARGER | 200007- | |
10 | 1144530690 | 1 | REPAIR KIT; TURBOCHARGER | 200007- | |
12 | 1094001190 | 1 | NUT; LK,TURBINE SHAFT TO IMPELLER,TC | 200007- | |
17 | 1144550260 | 4 | RING; JOURNAL BRG,TURBOCHARGER | 200007- | |
18 | 1091000150 | 4 | SCREW; THRUST BRG,TURBOCHARGER | 200007- | |
20 | 1144530700 | 1 | BUSHING; THRUST,TURBOCHARGER | 200007- | |
21 | 1144550360 | 1 | THROWER; OIL,TURBOCHARGER | 200007- | |
22 | 1144530270 | 1 | RING; SEAL,TURBINE SIDE,TURBOCHARGER | 200007- | |
023(A) | 1144530250 | 1 | RING; SEAL,BLOWER SIDE,TURBOCHARGER | 200007- | |
023(B) | 1144530260 | 1 | RING; SEAL,BLOWER SIDE,TURBOCHARGER | 200007- | |
36 | 1090004050 | 10 | BOLT; LK PLATE,TURBINE HSG,TURBOCHARGER | 200007- | |
37 | 1144210180 | 10 | PLATE; LK,TURBINE HSG,TURBOCHARGER | 200007- | |
41 | 1144210160 | 8 | PLATE; LK,BLOWER HSG,TURBOCHARGER | 200007- | |
42 | 1090004040 | 8 | BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER | 200007- | |
44 | 1144250180 | 1 | PLATE; SEAL,TURBOCHARGER | 200007- | |
45 | 1091000140 | 4 | SCREW; SEAL PLATE,TURBOCHARGER | 200007- | |
