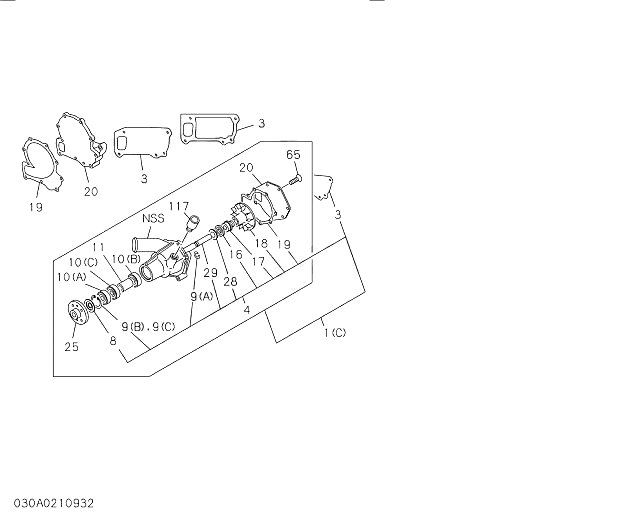

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 001(A) | 1136501126 | 1 | PUMP ASM; WATER,W/GASKET | 200007- | ||
| 003 | 1096235861 | 1 | GASKET; PUMP TO C/BL | 200007- | ||
| 004 | 1878118430 | 1 | REPAIR KIT; WATER PUMP | 200007-200501 | C | |
| 004 | 1878129210 | 1 | REPAIR KIT; WATER PUMP | 200502-200604 | ||
| 004 | 1878130720 | 1 | REPAIR KIT; WATER PUMP | 200605-200905 | ||
| 004 | 1878134280 | 1 | REPAIR KIT; WATER PUMP | 200906- | ||
| 010(A) | 1098002520 | 1 | BEARING; WATER PUMP | 200007- | ||
| 010(B) | 1098002530 | 1 | BEARING; WATER PUMP | 200007- | ||
| 016 | 1096255510 | 1 | SEAL; OIL,WATER PUMP | 200007- | ||
| 017 | 8943920900 | 1 | SEAL UNIT; WATER PUMP | 200007- | ||
| 018 | 1136210490 | 1 | IMPELLER; WATER PUMP | 200007-200604 | ||
| 018 | 8976089700 | 1 | IMPELLER; WATER PUMP | 200605- | ||
| 019 | 1096235870 | 1 | GASKET; COVER TO BODY | 200007-200503 | ||
| 019 | 8976067290 | 1 | GASKET; COVER TO BODY | 200504- | ||
| 020 | 1136120432 | 1 | COVER; WATER PUMP | 200007-200303 | ||
| 020 | 1136120571 | 1 | COVER; WATER PUMP | 200304-200604 | ||
| 020 | 8980463340 | 1 | COVER; WATER PUMP | 200605- | ||
| 024(A) | 0281810250 | 2 | BOLT; WATER PUMP | 200007-200512 | A | |
| 024(A) | 0281510250 | 2 | BOLT; WATER PUMP | 200601- | ||
| 024(B) | 0281810900 | 4 | BOLT; WATER PUMP | 200007-200512 | A | |
| 024(B) | 0281510900 | 4 | BOLT; WATER PUMP | 200601- | ||
| 029 | 1136310781 | 1 | SHAFT; WATER PUMP | 200007-200905 | ||
| 029 | 8981414630 | 1 | SHAFT; WATER PUMP | 200906- | ||
| 045(A) | 8944788692 | 1 | JOINT; HTR HOSE,WATER PUMP | 200007- | ||
| 104 | 1096234940 | 1 | GASKET; WATER PUMP | 200007- | ||
| 119(A) | 0280808400 | 4 | BOLT; PUMP COVER | 200007-200512 | A | |
| 119(A) | 0280508400 | 4 | BOLT; PUMP COVER | 200601- | ||
| 119(B) | 8981414631 | 1 | BOLT; PUMP COVER | 200007-200512 | A | |
| 119(B) | 8981414632 | 1 | BOLT; PUMP COVER | 200601-200604 | ||
| 119(B) | 0281510200 | 1 | BOLT; PUMP COVER | 200605- | ||
| 139 | 1136411680 | 1 | GEAR; WATER PUMP,DRIVE | 200007-200202 | ||
| 139 | 1136412160 | 1 | GEAR; WATER PUMP,DRIVE | 200203-200410 | ||
| 139 | 8976062190 | 1 | GEAR; WATER PUMP,DRIVE | 200411- |
