Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

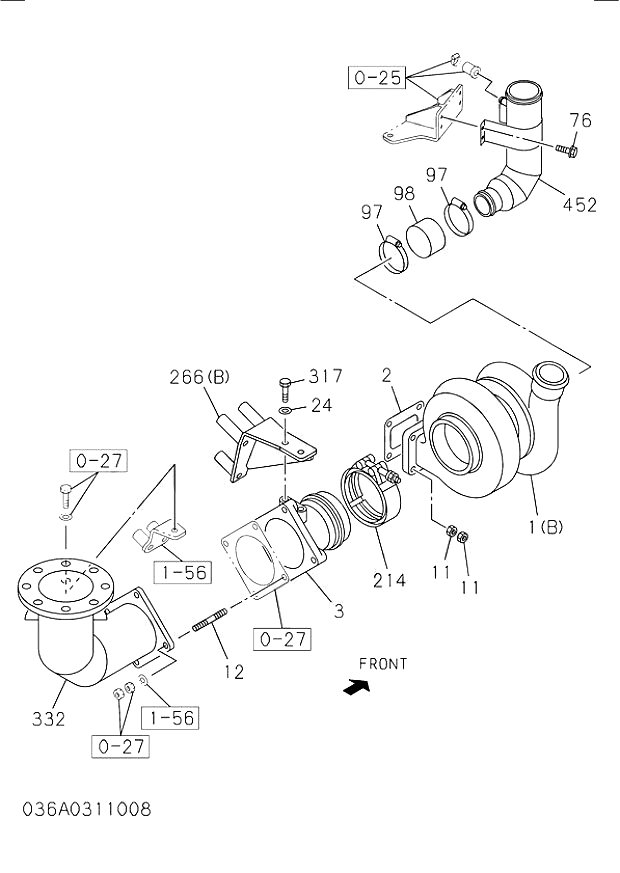

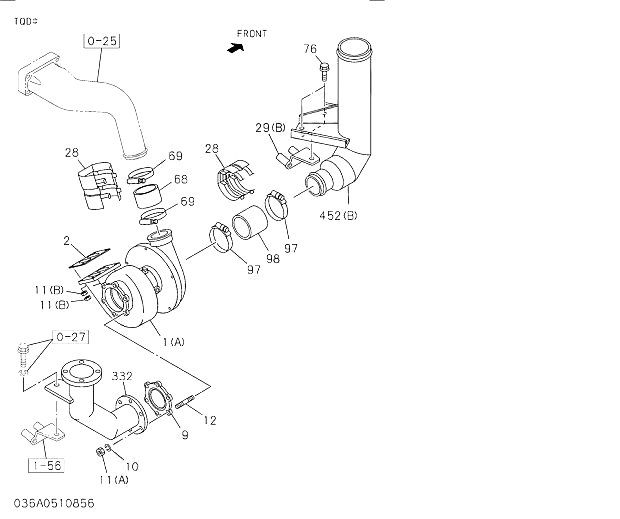

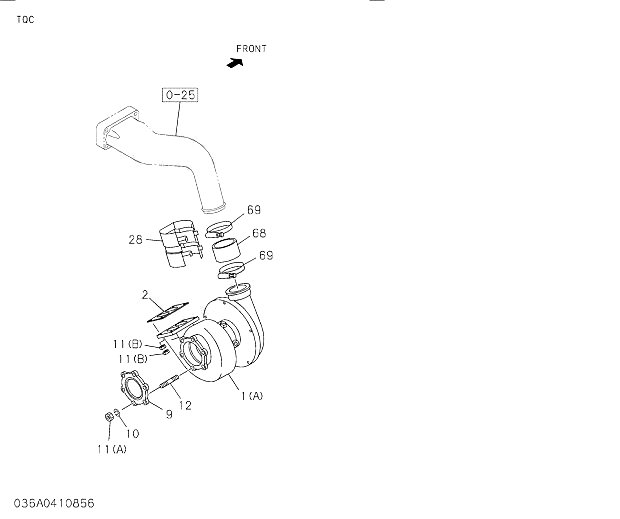

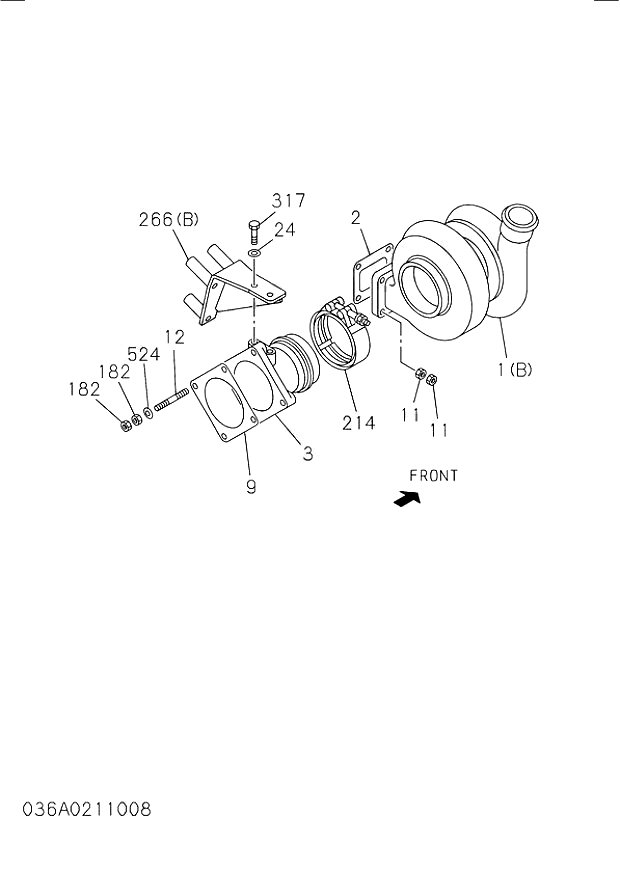

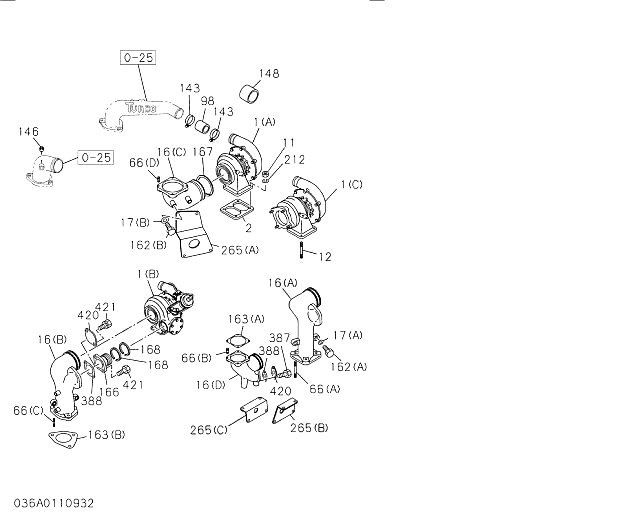

001(A) | 1144003841 | 1 | TURBOCHARGER ASM | 200105- | |
002 | 1141451870 | 1 | GASKET; TURBOCHARGER TO EXH MANIF | 200007- | |
009 | 1141452030 | 1 | GASKET; TURBOCHARGER TO EXH DUCT | 200007- | |
010 | 1095000070 | 6 | WASHER; LK,TURBOCHARGER | 200007- | |
011(A) | 1094000270 | 6 | NUT; TURBOCHARGER | 200007- | |
011(B) | 1094200050 | 8 | NUT; TURBOCHARGER | 200007- | |
012 | 1093021060 | 6 | STUD; TURBOCHARGER | 200007- | |
029(A) | 1141194422 | 1 | BRACKET; INL PIPE,ACL TO TURBOCHARGER | 200007- | |
075 | 1097071440 | 1 | CLIP; HOSE,ACL | 200007- | |
076 | 0280810500 | 2 | BOLT; AIR DUCT | 200007-200202 | A |
076 | 0281810500 | 2 | BOLT; AIR DUCT | 200203-200512 | A |
076 | 0280510500 | 2 | BOLT; AIR DUCT | 200601- | |
452(A) | 1141343520 | 1 | DUCT; AIR | 200007- | |
