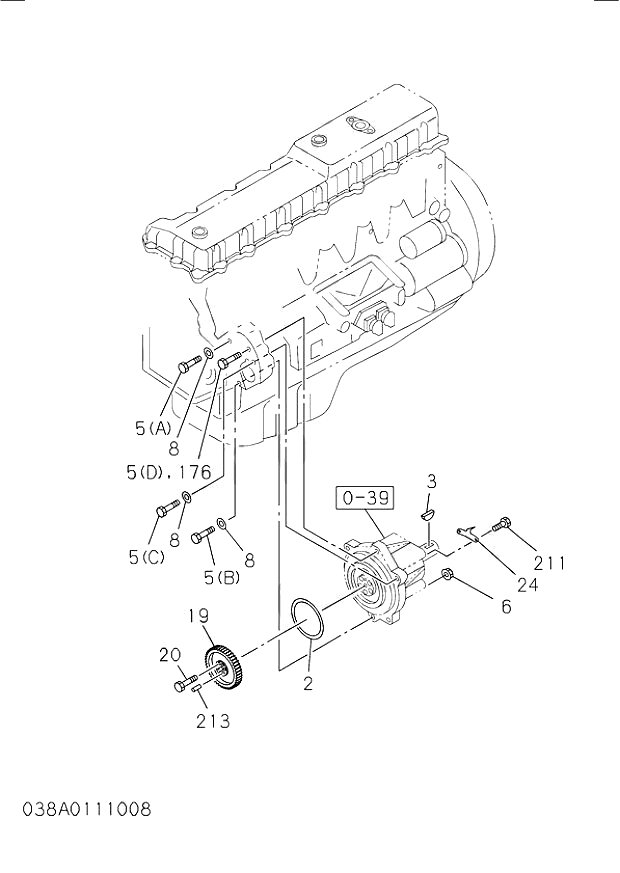

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
002 | 1096234760 | 1 | GASKET; AIR CMPR | 200007- | ||
003 | 9080556220 | 1 | KEY; COUPLING,INJ PUMP | 200007- | ||
005(B) | 8943992531 | 1 | BOLT; AIR CMPR FIX | 200007- | ||
005(C) | 9916664000 | 1 | BOLT; AIR CMPR FIX | 200007-200512 | A | |
005(C) | 9916664900 | 1 | BOLT; AIR CMPR FIX | 200007-200512 | A | |
005(C) | 0169564000 | 1 | BOLT; AIR CMPR FIX | 200601- | ||
005(C) | 0169564900 | 1 | BOLT; AIR CMPR FIX | 200601- | ||
006 | 0911501140 | 1 | NUT; AIR CMPR | 200007- | ||
008 | 9091645140 | 3 | WASHER; PL,AIR CMPR | 200007- | ||
019 | 1125241111 | 1 | GEAR; INJ PUMP | 200007-200202 | A | |
019 | 1125241641 | 1 | GEAR; INJ PUMP | 200203- | ||
020 | 1090701160 | 5 | BOLT; GEAR TO SHAFT | 200007- | ||
024 | 1113270401 | 1 | POINTER; AIR CMPR | 200007- | ||
176 | 8943971391 | 1 | BOLT; BRKT FIX | 200007- | ||
211 | 0281810160 | 2 | BOLT; POINTER | 200007-200512 | A | |
211 | 0281510160 | 2 | BOLT; POINTER | 200601- | ||
213 | 9081505100 | 1 | PIN; AIR CMPR GEAR | 200007- |
