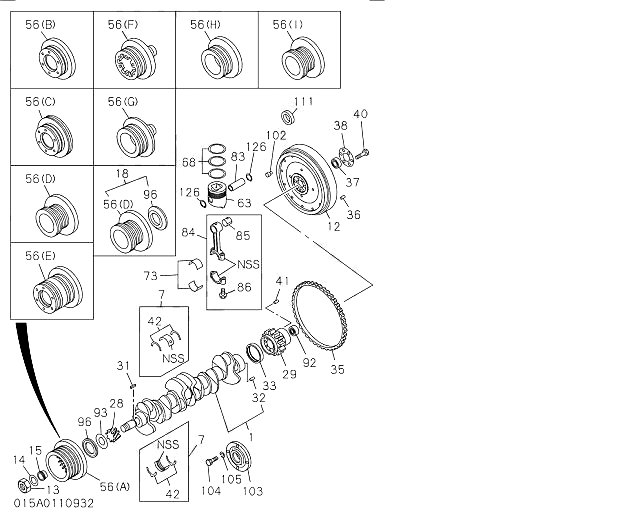

015 crankshaft piston and flywheel

CodeКаталожный номерQtyPart nameApplied S/N rangeICAВ корзину
111231071521CRANKSHAFT200510-
711151009351METAL KIT; CRANKSHAFT,STANDARD200510-
012(A)11233142111FLYWHEEL200510-
018(A)11237144431PULLEY; CR/SHF200510-
2011237519301DAMPER; CR/SHF200510-200911
2089814715401DAMPER; CR/SHF200912-
2290985186208PLATE; PULLEY200510-
2311237903911WASHER; DAMPER200510-200911
242879123008BOLT; DAMPER200510-200512C
242876123008BOLT; DAMPER200601-
2811252106121GEAR; CR/SHF200510-
3190987862601KEY; FEATHER,CR/SHF200510-
3290815081601PIN; FLYWHEEL200510-
3511233301311GEAR; RING200510-
3811233601101WASHER; FLYWHEEL200510-
40109070017110BOLT; FLYWHEEL200510-
4211159900902WASHER; THRUST,CR/SHF200510-201006
4289815185002WASHER; THRUST,CR/SHF201007-
5890987862618BOLT; CR/SHF PULLEY200510-
6311211200106PISTON200510-201102
6389811676806PISTON201103-
6811212115416RING SET; PISTON,STANDARD200510-
7311227109606METAL SET; CONN ROD,STANDARD200510-
8311221102916PIN; PISTON200510-
8411223017626ROD ASM; CONN200510-201004A
8489811594806ROD ASM; CONN201005-
8511225103746BUSHING; CONNROD200510-201004A
8589811595906BUSHING; CONNROD201005-
86112235036312BOLT; CONNROD200510-
88112239005112NUT; CONNROD200510-
126109587082012RING; SNAP,PISTON PIN200510-
14910960502116PLUG200510-
19390816082001PIN; FLANGE200510-
