Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

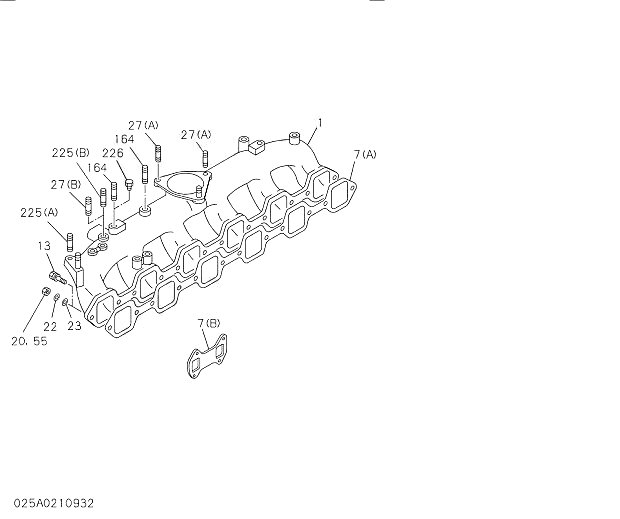

001(A) | 1141127791 | 1 | MANIFOLD; INL | 200510-200609 | C | |
001(A) | 1141127860 | 1 | MANIFOLD; INL | 200610-201010 | A | |
001(B) | 8981672100 | 1 | MANIFOLD; INL | 201011- | ||
7 | 8976075982 | 6 | GASKET; INL MANIF TO HD | 200510-200709 | A | |
7 | 1141150961 | 6 | GASKET; INL MANIF TO HD | 200710- | ||
20 | 911501100 | 12 | NUT; INL MANIF | 200510-200602 | A | |
20 | 911801100 | 12 | NUT; INL MANIF | 200603- | ||
24 | 1095801560 | 12 | SPRING; INL MANIF | 200510- | ||
30 | 8942416370 | 2 | CUP; SEALING,INL MANIF | 200510-201010 | ||

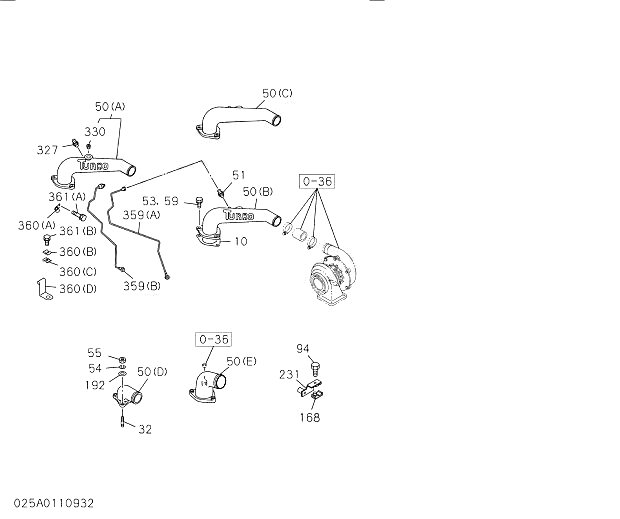

50 | 8980303481 | 1 | PIPE; INL | 200510- | ||
94 | 280806120 | 2 | BOLT | 200510-200512 | A | |
94 | 280506120 | 2 | BOLT | 200601- | ||
95 | 5097070051 | 2 | CLIP; RUBBER HOSE | 200510- | ||
97 | 8121468300 | 1 | SENSOR; INTAKE,AIR TEMPERATURE | 200510- | ||
153 | 1141150941 | 1 | GASKET; PLUG,INT DUCT | 200510- | ||
283 | 1141194160 | 1 | RUBBER | 200510- | ||
320 | 1096300820 | 2 | GASKET; PIPE | 200510- | ||
363 | 8972578260 | 1 | BOLT; EYE | 200510- | ||
495 | 8944288070 | 1 | PIPE; BOOST SENSOR | 200510- | ||
568 | 281810300 | 6 | BOLT; PIPE | 200510-200512 | A | |
568 | 281510300 | 6 | BOLT; PIPE | 200601- | ||
784 | 9081506160 | 1 | PIN; KNOCK | 200510- |
