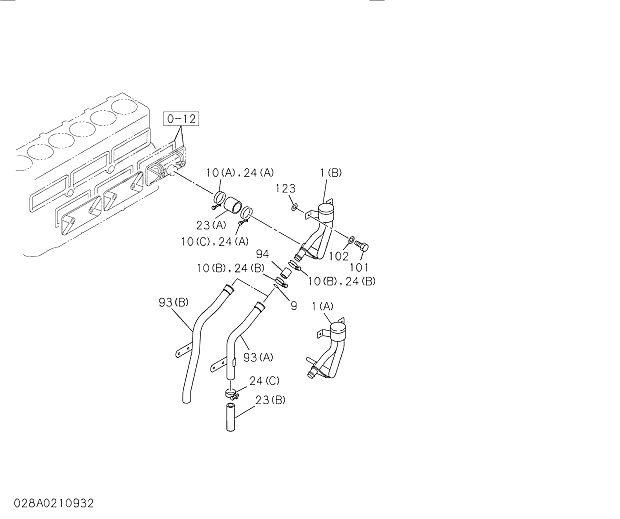

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
1 | 1117401811 | 1 | BREATHER; AIR | 200510- | |
9 | 1096235650 | 1 | GASKET; AIR BREATHER | 200510- | |
10 | 1097071500 | 1 | CLIP; AIR BREATHER | 200510- | |
011(A) | 8980007883 | 1 | HOSE; RUBBER,AIR | 200510- | |
024(A) | 1097003291 | 4 | CLIP; RUBBER HOSE,VENTILATOR | 200510- | |
059(A) | 8943625180 | 1 | CLIP; HOSE | 200510- | |
084(A) | 280808200 | 4 | BOLT; PIPE CLIP,VENTILATOR | 200510-200512 | A |
084(A) | 280508200 | 4 | BOLT; PIPE CLIP,VENTILATOR | 200601- | |
90 | 5097070301 | 1 | CLIP; RUBBER HOSE | 200510- | |
91 | 281810200 | 2 | BOLT; AIR BREATHER | 200510-200512 | A |
91 | 281510200 | 2 | BOLT; AIR BREATHER | 200601- | |
262 | 1133452262 | 1 | BRACKET; OIL SEPARETOR | 200510- | |
263(A) | 281810700 | 1 | BOLT; BRKT,OIL SEPARETOR | 200510-200512 | A |
263(A) | 281510700 | 1 | BOLT; BRKT,OIL SEPARETOR | 200601- | |
263(B) | 289814250 | 2 | BOLT; BRKT,OIL SEPARETOR | 200510-200512 | A |
263(B) | 289514250 | 2 | BOLT; BRKT,OIL SEPARETOR | 200601- | |
