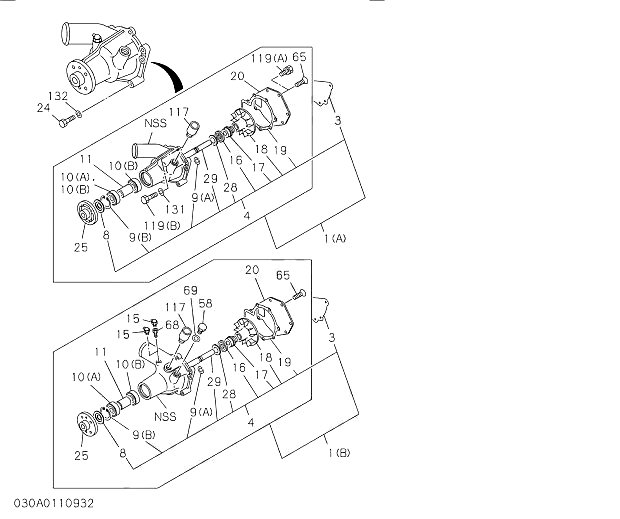

| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
| 1 | 8980197410 | 1 | PUMP ASM; WATER,W/GASKET | 200510-200604 | A | |
| 1 | 8980463661 | 1 | PUMP ASM; WATER,W/GASKET | 200605- | ||
| 3 | 1096235861 | 1 | GASKET; PUMP TO C/BL | 200510- | ||
| 4 | 1878129210 | 1 | REPAIR KIT; WATER PUMP | 200510-200604 | C | |
| 4 | 1878130720 | 1 | REPAIR KIT; WATER PUMP | 200605-200907 | ||
| 4 | 1878134280 | 1 | REPAIR KIT; WATER PUMP | 200908- | ||
| 010(A) | 1098002520 | 1 | BEARING; WATER PUMP | 200510- | ||
| 010(B) | 1098002530 | 1 | BEARING; WATER PUMP | 200510- | ||
| 16 | 1096255510 | 1 | SEAL; OIL,WATER PUMP | 200510- | ||
| 17 | 8943920900 | 1 | SEAL UNIT; WATER PUMP | 200510- | ||
| 18 | 1136210490 | 1 | IMPELLER; WATER PUMP | 200510-200604 | ||
| 18 | 8976089700 | 1 | IMPELLER; WATER PUMP | 200605- | ||
| 19 | 8976067290 | 1 | GASKET; COVER TO BODY | 200510- | ||
| 020(A) | 8973890000 | 1 | COVER; WATER PUMP | 200510-200604 | ||
| 020(A) | 8980463320 | 1 | COVER; WATER PUMP | 200605-201105 | ||
| 020(B) | 8981918740 | 1 | COVER; WATER PUMP | 201106- | ||
| 024(A) | 281810250 | 2 | BOLT; WATER PUMP | 200510-200512 | A | |
| 024(A) | 281510250 | 2 | BOLT; WATER PUMP | 200601- | ||
| 024(B) | 281810900 | 4 | BOLT; WATER PUMP | 200510-200512 | A | |
| 024(B) | 281510900 | 4 | BOLT; WATER PUMP | 200601- | ||
| 29 | 1136310781 | 1 | SHAFT; WATER PUMP | 200510-200907 | ||
| 29 | 8981414630 | 1 | SHAFT; WATER PUMP | 200908- | ||
| 045(A) | 8943732463 | 1 | JOINT; HTR HOSE,WATER PUMP | 200510- | ||
| 045(B) | 9099036310 | 1 | JOINT; HTR HOSE,WATER PUMP | 200510- | ||
| 104 | 1096234940 | 1 | GASKET; WATER PUMP | 200510- | ||
| 119(A) | 280808400 | 4 | BOLT; PUMP COVER | 200510-200512 | A | |
| 119(A) | 280508400 | 4 | BOLT; PUMP COVER | 200601- | ||
| 119(B) | 281810200 | 1 | BOLT; PUMP COVER | 200510-200512 | A | |
| 119(B) | 281510200 | 1 | BOLT; PUMP COVER | 200601- | ||
| 139 | 8976062190 | 1 | GEAR; WATER PUMP,DRIVE | 200510- |
