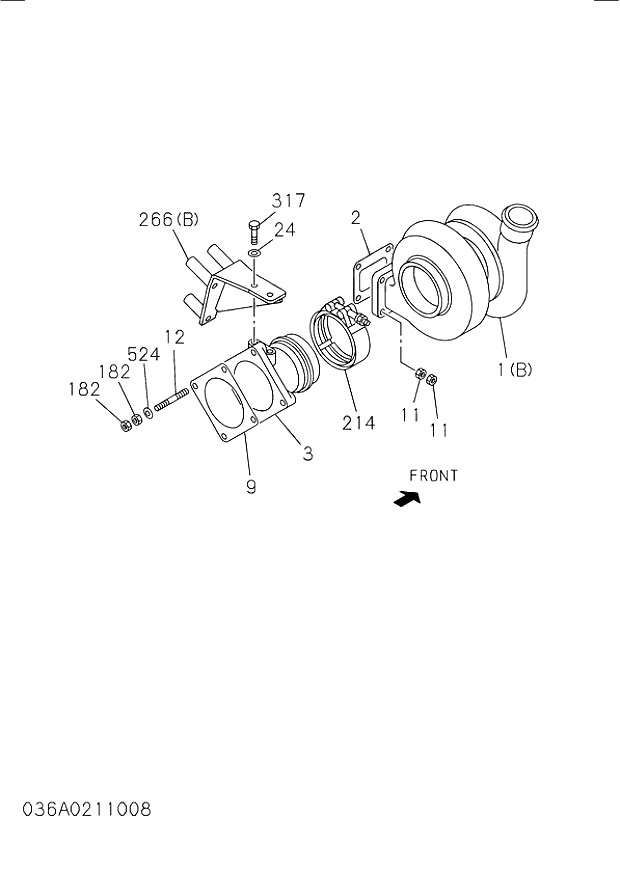

Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |
001(A) | 1144004441 | 1 | TURBOCHARGER ASM | 200510-201106 | |
001(A) | 8981921860 | 1 | TURBOCHARGER ASM | 201107- | |
2 | 8980188550 | 1 | GASKET; TURBOCHARGER TO EXH MANIF | 200510- | |
3 | 1141446324 | 1 | PIPE; EXH,TURBOCHARGER | 200510- | |
9 | 1141451750 | 1 | GASKET; TURBOCHARGER TO EXH DUCT | 200510- | |
11 | 1094200050 | 8 | NUT; TURBOCHARGER | 200510- | |
12 | 9098330970 | 4 | STUD; TURBOCHARGER | 200510- | |
24 | 1095000070 | 4 | WASHER; PL,PIPE | 200511- | |
182 | 1094000720 | 8 | NUT; DUCT | 200510- | |
214 | 1097090941 | 1 | BAND; "V",TURBOCHARGER TO EXH PIPE | 200510-200609 | A |
214 | 8980598900 | 1 | BAND; "V",TURBOCHARGER TO EXH PIPE | 200610- | |
266(A) | 1141492650 | 1 | BRACKET; EXH PIPE | 200511- | |
317 | 1090200732 | 4 | BOLT; EXH PIPE | 200511- | |
524 | 1095560200 | 4 | WASHER; DISH | 200510- | |
