| Code | Каталожный номер | Qty | Part name | Applied S/N range | ICA | В корзину |

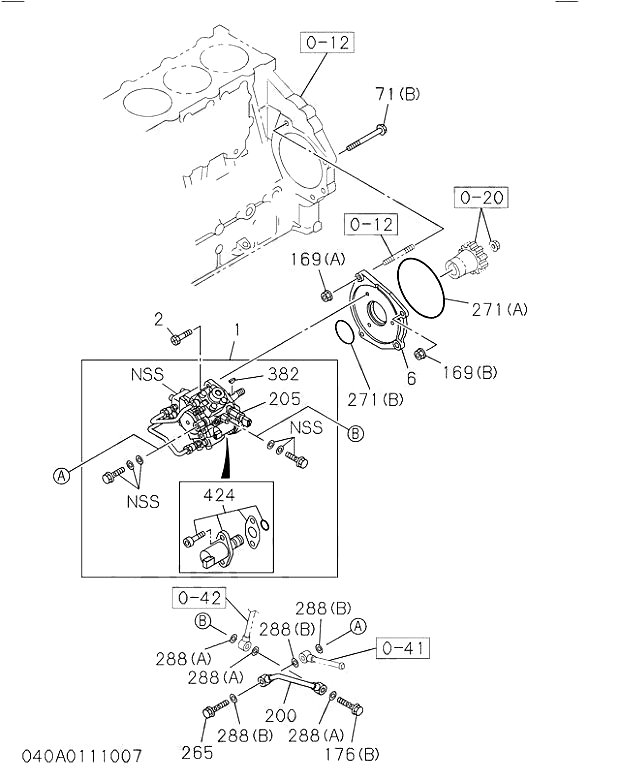

| 1 | 8976034144 | 1 | PUMP ASM; INJ | 200510- | |
| 2 | 280908900 | 4 | BOLT; INJ PUMP | 200510-200512 | A |
| 2 | 280608900 | 4 | BOLT; INJ PUMP | 200601- | |
| 6 | 1197511790 | 1 | BRACKET; INJ PUMP TO C/BL | 200510- | |
| 007(A) | 289814900 | 2 | BOLT; INJ PUMP BRKT | 200510-200512 | A |
| 007(A) | 289514900 | 2 | BOLT; INJ PUMP BRKT | 200601- | |
| 007(B) | 289864120 | 2 | BOLT; INJ PUMP BRKT | 200510-200512 | A |
| 007(B) | 289564120 | 2 | BOLT; INJ PUMP BRKT | 200601- | |
| 10 | 1112290121 | 2 | DOWEL; INJ PUMP | 200510- | |
| 15 | 1157801920 | 1 | COUPLING ASM; INJ PUMP | 200510- | |
| 16 | 1154168422 | 1 | PIPE; INJ NO.1 | 200510- | |
| 17 | 1154168433 | 1 | PIPE; INJ NO.2 | 200510- | |
| 18 | 1154168442 | 1 | PIPE; INJ NO.3 | 200510- | |
| 19 | 1154168452 | 1 | PIPE; INJ NO.4 | 200510- | |
| 20 | 1154168463 | 1 | PIPE; INJ NO.5 | 200510- | |
| 21 | 1154168472 | 1 | PIPE; INJ NO.6 | 200510- | |
| 31 | 8976034154 | 6 | NOZZLE ASM; INJ | 200511-201003 | |
| 31 | 8981675560 | 6 | NOZZLE ASM; INJ | 201004- | |
| 58 | 1153370210 | 6 | FLANGE; INJ,NOZZLE HOLDER | 200510- | |
| 61 | 1090701210 | 6 | BOLT; CLAMP NOZZLE HOLDER | 200510- | |
| 66 | 8972160820 | 6 | GASKET; INJ NOZZLE | 200510- | |
| 069(A) | 1191994110 | 1 | BRACKET; INJ PIPE CLIP | 200510- | |
| 069(B) | 8980259990 | 1 | BRACKET; INJ PIPE CLIP | 200510- | |
| 069(C) | 8976139740 | 1 | BRACKET; INJ PIPE CLIP | 200812- | |
| 071(A) | 281810600 | 2 | BOLT; BRKT | 200510-200512 | A |
| 071(A) | 281510600 | 2 | BOLT; BRKT | 200601- | |
| 071(B) | 280806120 | 1 | BOLT; BRKT | 200510-200512 | A |
| 071(B) | 280506120 | 1 | BOLT; BRKT | 200601- | |
| 071(C) | 280808160 | 2 | BOLT; BRKT | 200510-200512 | A |
| 071(C) | 280508160 | 2 | BOLT; BRKT | 200601- | |
| 113(A) | 1097011722 | 11 | CLIP; INJ PIPE | 200510-200606 | |
| 113(A) | 8973301181 | 11 | CLIP; INJ PIPE | 200607-200811 | |
| 113(A) | 8981675561 | 13 | CLIP; INJ PIPE | 200812- | |
| 113(B) | 1097011731 | 11 | CLIP; INJ PIPE | 200510-200606 | |
| 113(B) | 8973301191 | 11 | CLIP; INJ PIPE | 200607-200811 | |
| 113(B) | 8981675562 | 13 | CLIP; INJ PIPE | 200812- | |
| 113(C) | 1097012690 | 2 | CLIP; INJ PIPE | 200510- | |
| 113(D) | 8943963710 | 2 | CLIP; INJ PIPE | 200510- | |
| 119 | 280806300 | 13 | BOLT; CLIP,INJ PIPE | 200510-200512 | A |
| 119 | 280506300 | 13 | BOLT; CLIP,INJ PIPE | 200601-200811 | |
| 119 | 8981675563 | 15 | BOLT; CLIP,INJ PIPE | 200812- | |

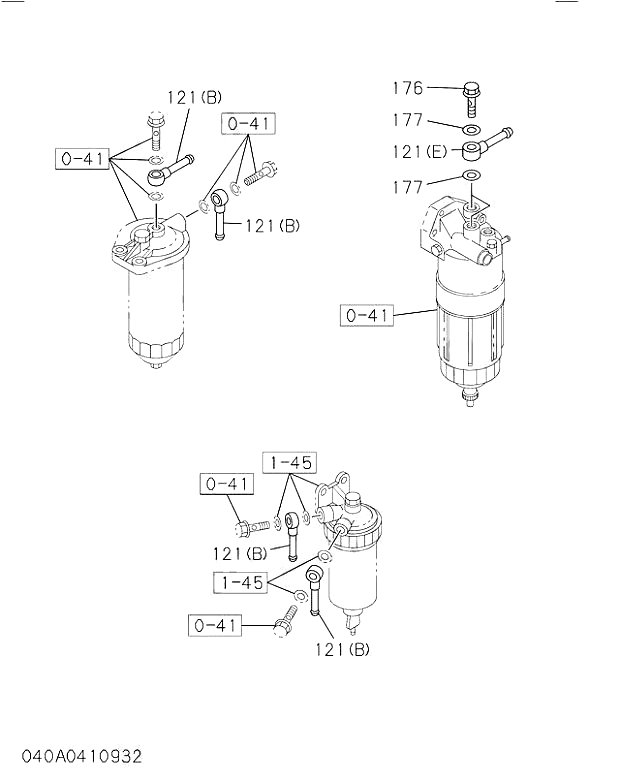

| 121 | 8980149190 | 1 | PIPE; FUEL,FEED PUMP,SUCTION | 200510- | |
| 124(A) | 1096750371 | 6 | BOLT; EYE LEAK OFF PIPE | 200510- | |
| 124(B) | 1096750860 | 1 | BOLT; EYE LEAK OFF PIPE | 200510- | |
| 124(C) | 1096751600 | 1 | BOLT; EYE LEAK OFF PIPE | 200510-200805 | A |
| 124(C) | 8980378260 | 1 | BOLT; EYE LEAK OFF PIPE | 200806- | |
| 126(A) | 8943952140 | 6 | GASKET; EYE BOLT LEAK OFF PIPE | 200510-200702 | C |
| 126(A) | 8980659920 | 6 | GASKET; EYE BOLT LEAK OFF PIPE | 200703- | |
| 126(B) | 1154196351 | 1 | GASKET; EYE BOLT LEAK OFF PIPE | 200510-200702 | C |
| 126(B) | 8980659930 | 1 | GASKET; EYE BOLT LEAK OFF PIPE | 200703- | |
| 126(C) | 1096300850 | 1 | GASKET; EYE BOLT LEAK OFF PIPE | 200510-200702 | C |
| 126(C) | 8980659900 | 1 | GASKET; EYE BOLT LEAK OFF PIPE | 200703- | |
| 126(D) | 1096301410 | 2 | GASKET; EYE BOLT LEAK OFF PIPE | 200510- | |
| 128 | 1154168732 | 1 | PIPE ASM; INJ | 200510- | |
| 137 | 1154168510 | 1 | PIPE ASM; LEAK OFF | 200510-200702 | C |
| 137 | 8976171610 | 1 | PIPE ASM; LEAK OFF | 200703- | |
| 154 | 9095611110 | 6 | GASKET; CONNECTOR | 200510- | |
| 174 | 5157590030 | 1 | BOLT; EYE,FUEL OUTLET,FEED PUMP | 200510- | |
| 175 | 1156195070 | 2 | GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP | 200510- | |
| 176 | 1156195090 | 1 | BOLT; EYE,FEED PUMP | 200510- | |
| 177 | 9095611111 | 2 | GASKET; EYE BOLT,INL,FUEL FEED PUMP | 200510- | |
| 199(A) | 9095611112 | 2 | GASKET; EYE BOLT | 200510- | |
| 199(B) | 8976022180 | 2 | GASKET; EYE BOLT | 200510- | |
| 205 | 8972249930 | 1 | SENSOR; FUEL TEMP | 200510- | |
| 210(A) | 1154168111 | 1 | PIPE; INJ,C/R | 200510- | |
| 210(B) | 1154168121 | 1 | PIPE; INJ,C/R | 200510- | |
| 211 | 8976031212 | 1 | RAIL ASM; COMMON | 200510- | |
| 216(A) | 9095611113 | 1 | BOLT; EYE | 200510- | |
| 216(B) | 8976021730 | 1 | BOLT; EYE | 200510- | |
| 224 | 1156195000 | 1 | PLUG; INJ PUMP | 200510- | |
| 225 | 1156195020 | 1 | GASKET; PLUG | 200510- | |
| 282 | 8976031222 | 1 | BRACKET; COMMON RAIL | 200510- | |
| 283 | 281810400 | 4 | BOLT; COMMON RAIL | 200510-200512 | A |
| 283 | 281510400 | 4 | BOLT; COMMON RAIL | 200601-200811 | |
| 283 | 281510450 | 4 | BOLT; COMMON RAIL | 200812- | |
| 284 | 1154195252 | 1 | ADAPTER; FUEL LEAK OFF | 200510- | |
| 339 | 1093690100 | 1 | RUBBER; COVER | 200707- | |
| 364 | 1156194960 | 1 | VALVE; OVER FLOW,INJ PUMP | 200510- | |
| 365 | 9881300880 | 1 | BOLT; EYE,OIL INLET | 200510- | |
| 366 | 1156194970 | 1 | BOLT; EYE,OIL OUTLET | 200510- | |
| 367 | 1156195010 | 2 | GASKET; VALVE,OVER FLOW | 200510- | |
| 368 | 1156195080 | 2 | GASKET; EYE BOLT,OIL INLET | 200510- | |
| 369 | 1156195040 | 2 | GASKET; EYE BOLT,OIL OUTLET | 200510- | |
| 396 | 1131190040 | 2 | DOWEL; RAIL ASM | 200510- | |
